šŸ‡ŗšŸ‡ø ADJ AV2X Video Panels


Price:
$1,888.99

Description

Ā SPECIFICATIONS:

Ā

  • Pixel Pitch: 2.97mm (0.17ā€)
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168x168; 112896 per square meterĀ
  • Size :19.75ā€ x 19.75ā€ x 3ā€ / 500 x 500 x 73mm
  • Module Quantity: 4
  • Weight: 17.64 lbs. / 8kg.

Ā

FEATURES:

Ā

  • Corner Protectors to protect the corners of the AV2 during transport, set-up and teardown

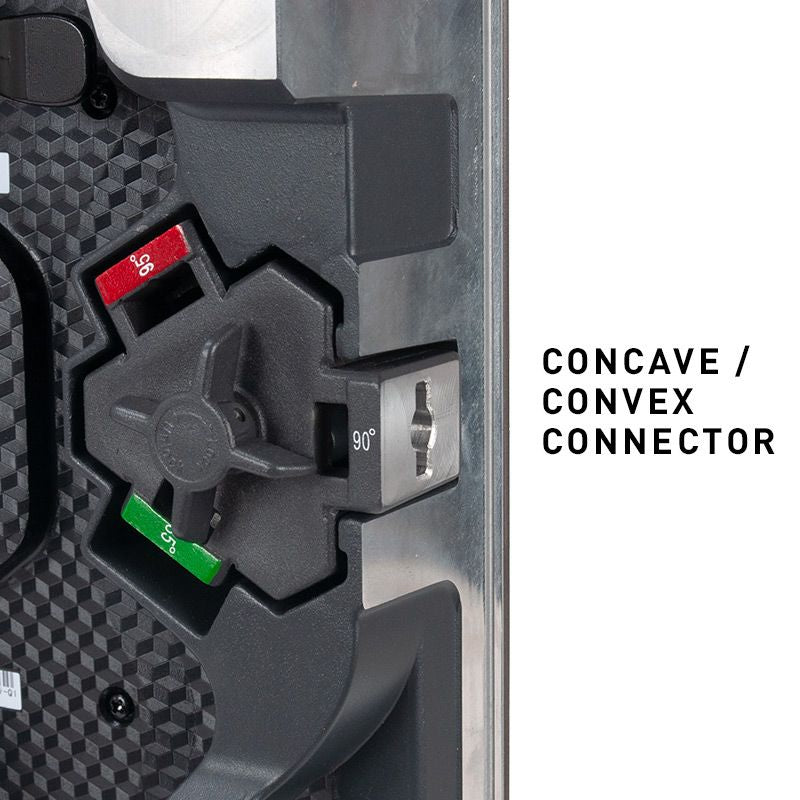

  • Concave /convex option: set-up straight, 5% concave or 5% convex
  • 4 easy to replace video modules on each panel

Ā

MECHANICAL RATINGS:

Ā

  • Surface Flatness: Gaps<0.5mm

Ā

OPTICAL RATINGS:

Ā

  • Brightness: 1000 NITS
  • View Angle: Horizontal 160Ā°/Vertical 120Ā° @ 9.75 ft. (2.97m)
  • Gray Scale / Display Color: 14-bit
  • Brightness Adjustment: 0~100% 100 Levels
  • Processing: 14-bit

Ā

POWER SUPPLY:

Ā

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 115W/per panel
  • Ave. Power Consumption: 35W/per panel
  • Connections Power/Data: Locking power In/Out; locking RJ45 Ethernet In/Out

Ā

CONTROL SYSTEM:

Ā

  • Control Mode: Nova Star Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/21
  • Refresh Rate: ā‰„1920Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
  • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
  • Brightness Correction: Pixel, Module, Cabinet

Ā

ENVIRONMENTAL:

Ā

  • Operating Temp / Humidity: Fahrenheit: -4Ā° + 104Ā° / Celsius: -20Ā° + 40Ā°/ 10-90% (No Condensation)
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
  • Protection Level: IP20 (Front and Back)
  • Out of Control Rate: <0.02%
  • Listings: cETLus

Ā

OPTIONAL ACCESSORIES:

Ā

  • AV2FC (AV2066): Flight Case ā€“ Fits 8 AV2X panels
  • AV2RB (AV2035): Rigging Bar - Connect up to 15 AV2X Video Panels
  • AV2RSB (AV2084): Rear Support Bracket (parts site)
  • Novastar VX4S: Video Processor
  • Novastar MCTRL-300: Video Processor
  • Novastar Nova Pro HD: Video Processor
  • Arkaos Media Master: Video Software
  • Arkaos GrandVJ 2.0: Video Software

Ā

CABLES:

Ā

  • Cabinet to Cabinet Locking RJ45 Ethernet Data Link Cables
  • Locking Power Connector Power Link Cables
  • Locking Power Connector Main Power Cables
