🇬🇧 Allen & Heath SQ-5


Price:
$3,999

Description

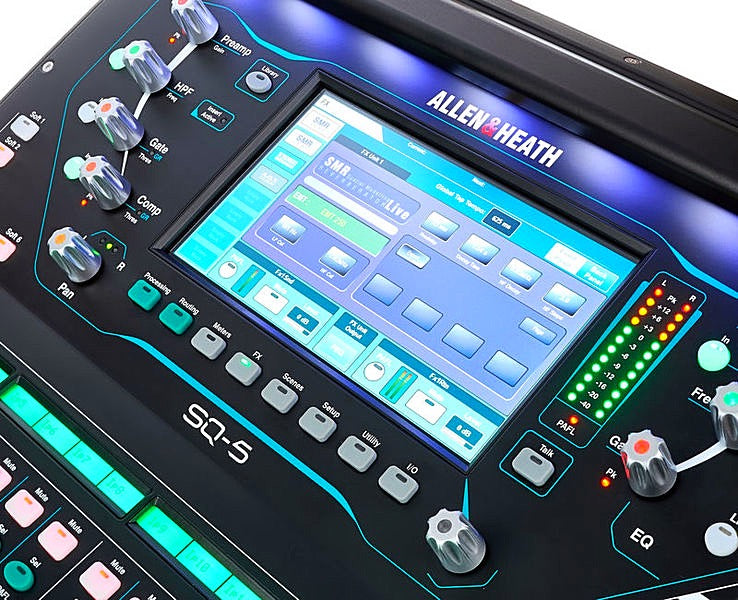

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-5 offers softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, making it well suited for virtual sound checks and studio

The SQ-5 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-5 ships with a power cord.

  • Compact digital mixer for live, studio, and installation
  • 48 input channels
  • 16 local mic inputs (XLR)
  • Two 1/4” stereo inputs (TRS)
  • One 1/8" stereo input
  • 36 total busses
  • 12 stereo mixes (Aux or Group) + Main
  • PAFL bus
  • 14 assignable local outputs (12 XLR + two 1/4” TRS)
  • AES digital output
  • Dedicated talkback mic input (XLR)
  • 1/4" TRS headphone out with dedicated control
  • SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64x64 channels)
  • I/O port for option card (including 3rd party protocols – Dante/Waves)
  • 8 mute groups
  • 8 DCA groups
  • 8 stereo FX with dedicated FX returns
  • DEEP processing ready
  • RackFX effects suite
  • 7" color touchscreen
  • 8 assignable SoftKeys
  • Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)

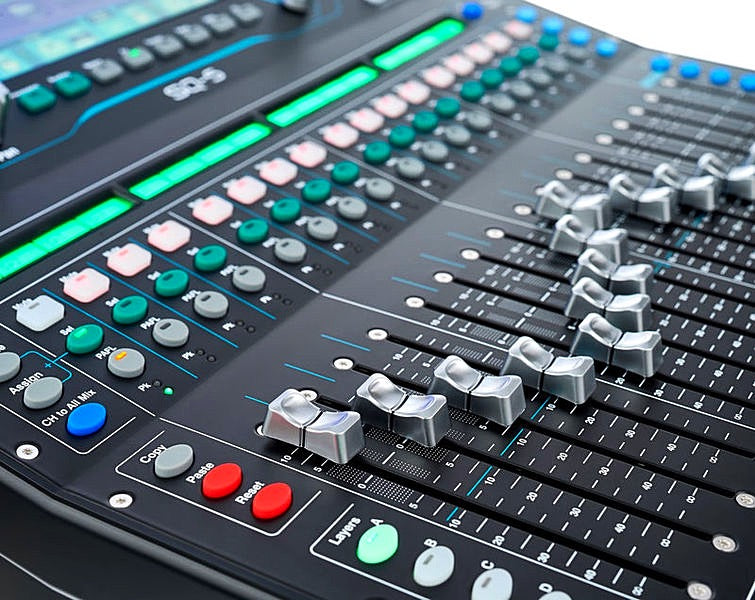

  • 16+1 faders with 6 layers for 96 assignable channel strips
  • Motorized faders for sends on faders, GEQ fader flip, and mix recall
  • 16 backlit LCD channel-strip displays
  • Single-point metering
  • Integrated surface illumination
  • Single/dual footswitch control
  • Input channel linking for stereo sources
  • Patchable insert points
  • Input processing – Preamp, HPF, Gate, PEQ, Compressor, Delay
  • Output processing – PEQ, Graphic EQ, Compressor, Delay
  • Automatic mic mixing
  • 31-band, real-time analyzer (RTA)
  • Quick copy/paste/reset for parameters
  • User permissions to restrict operator access
  • 300 scene memories per show
  • Channel safes, global and per-scene recall filters
  • FX, processing, and channel libraries
  • SQ-Drive for stereo and multitrack recording/playback direct to USB drive
  • USB transfer of scenes, libraries, shows
  • 32x32 channel USB streaming to/from Mac/Windows
  • DAW control driver for MIDI control via USB or TCP/IP
  • Wireless remote mixing apps for iPad and Android
  • Compatible with ME personal-monitoring range
