🇮🇹 RCF TT 1-A ll ☎️Call for Quote


Description

  • 131 dB max SPL
  • 800 W Class-D two-channel amplifier
  • 90° x 60° constant directivity coverage
  • FiRPHASE for 0° phase response
  • Heavy-duty touring cabinet
  • 32 bit - 96 kHz processing

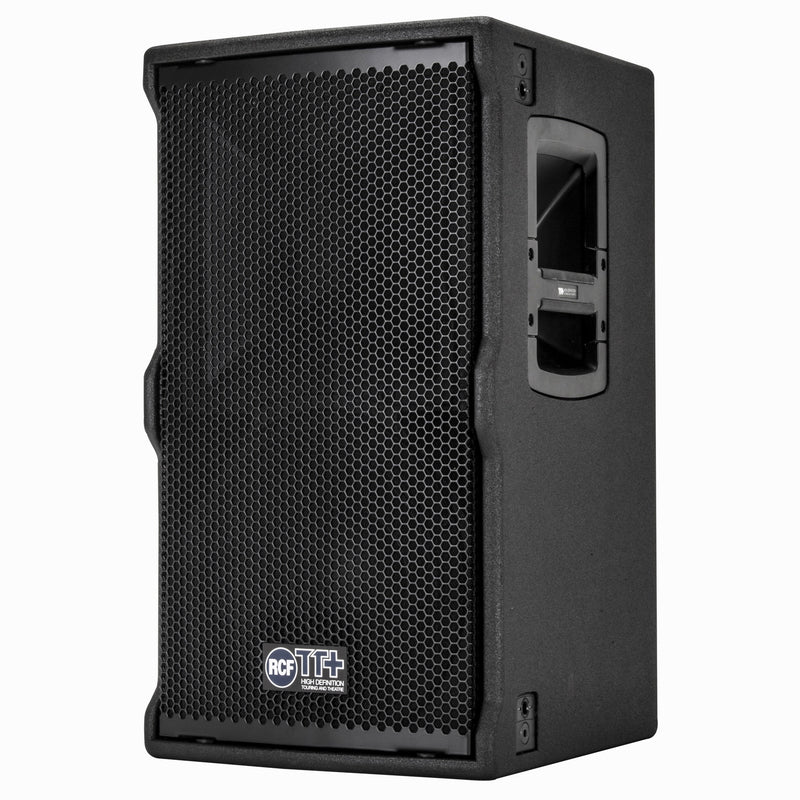

The TT 1-A provides an extremely high-power output of 131 dB SPL max with low distortion in a vented two-way enclosure. The two-channel, class D power amplifier yields a total power output of 800 W RMS with FiRPHASE 0° linear phase DSP processing, a complete set of protection circuitry and onboard RDNet for remote control and monitoring. The speaker features a neodymium 10” woofer and a 3,0” voice coil, titanium dome compression driver on a large, 90° x 60° constant directivity horn.

PART NUMBER:

  • 13000627
    TT 1-A II
    115V
    EAN 8024530018023
  • 13000624
    TT 1-A II
    220-240V
    EAN 8024530018016

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Read More





STATE OF THE ART CLASS-D AMPLIFIERS

Two-channel Class-D amplifier with 800W total power output for an exemplary performance operating with high efficiency into a lightweight solution. TT+ amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio quality.

ENGINEERED FOR MAXIMUM RELIABILITY
The amplifier housing is tightly fitted and sealed to the rear of the cabinet. A recessed and protected panel houses the connections for power, signal and control.

INPUT BOARD
The analog input board is fully featured offering XLR input and output link, preset selections, and a pre-loaded equalization bypass switch. EtherCON input and output connect the system in a daisy chain topology for RDNet networked management.

REAR PANEL
The rear panel features a simple rotary encoder with a push switch that controls all speaker functions. A bright display helps the system setting. The only switch on the panel sets local or remote control. A simple command from RDNet totally disables the input panel.



HIGH-END PROCESSING

The amplifier incorporates a low noise 96 kHz, 32-bit floating-point DSP circuitry to compute FiRPHASE, soft clipping limiters, RMS limiters, polarity, amplitude, timing, and equalization. All the control settings, monitoring of each component and other advanced features are integrated in the RDNet Networked Management software.



DURABLE AND STURDY

The cabinets feature recessed die-cast aluminium side handles powder coated with rubber hand-grip, designed to facilitate transport positioning and loading operations. A bottom pole socket allows the use of the speaker as a point source speaker on a stand or subwoofer pole. A variety of rigging options is available, between six Flying Tracks eyelet mounting rail on the upper and lower sides and four lateral Quick-Fit rigging points.

WEATHERPROOF CABINET
The speaker cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the cabinet completely water-resistant even before the special polyurea paint, applied to create a very thick full coating of the cabinet, making the speaker highly resistant to scratches, bumps, sun, and extreme weather conditions.

HEAVILY BRACED INTERNAL STRUCTURE
The internal structure is heavily braced to survive long term use and transportation. All the parts are assembled on metal inserts with metric screws. The amplifier is housed in a separate chamber from the transducers to offer the best efficiency and reliability.



NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Read More


SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
55 Hz ÷ 20000 Hz
MAX SPL @ 1M:
131 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 3.0'' v.c
WOOFER:
10'' neo, 3.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Gain reduction, RDNet local setup/bypass, time delay, Presets (linear, close, far listening, High - Pass), RDNet on board
RDNET:
Yes
Power section
TOTAL POWER:
1600 W Peak, 800 W RMS
HIGH FREQUENCIES:
500 W Peak, 250 W RMS
LOW FREQUENCIES:
1100 W Peak, 550 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Installation/Rental fittings
HANDLES:
2 side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
566 mm / 22.28 inches
WIDTH:
333 mm / 13.11 inches
DEPTH:
370 mm / 14.57 inches
WEIGHT:
25.4 kg / 56 lbs
Shipping informations
PACKAGE HEIGHT:
690 mm / 27.17 inches
PACKAGE WIDTH:
480 mm / 18.9 inches
PACKAGE DEPTH:
430 mm / 16.93 inches
PACKAGE WEIGHT:
28 kg / 61.73 lbs
