Description

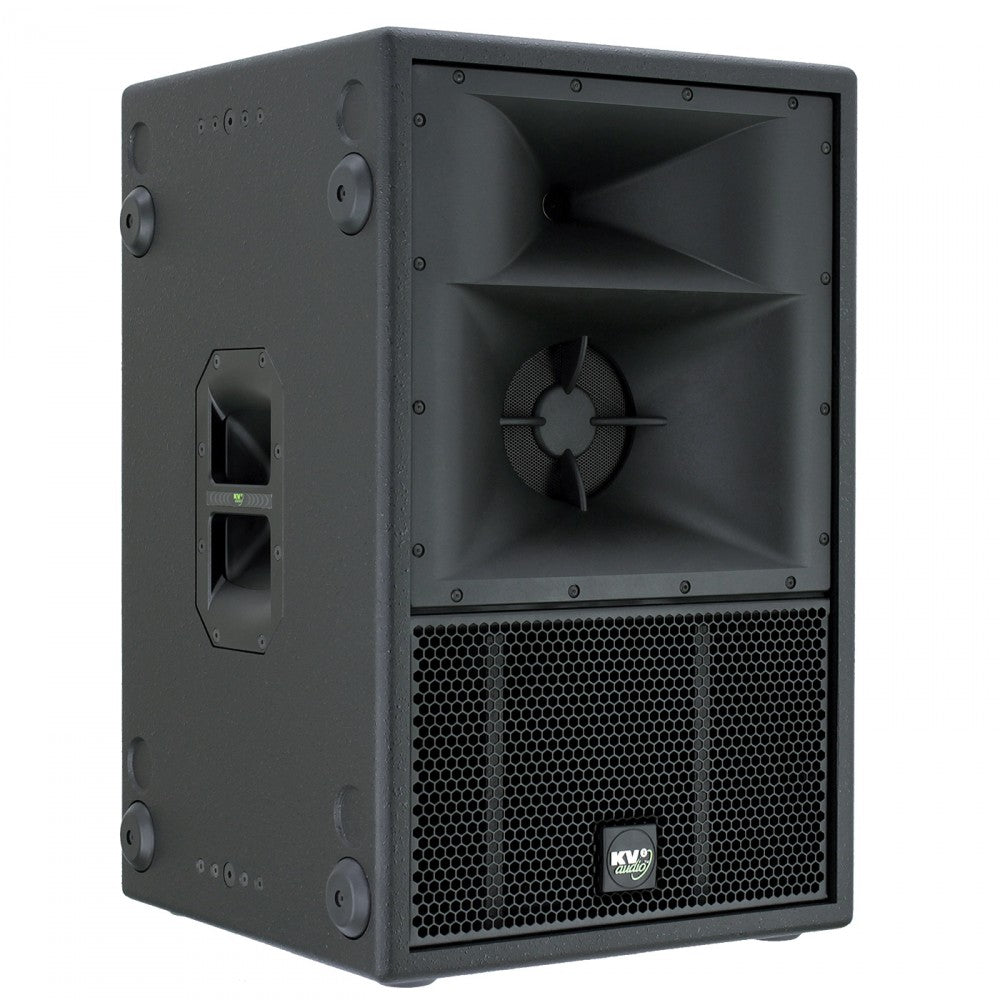

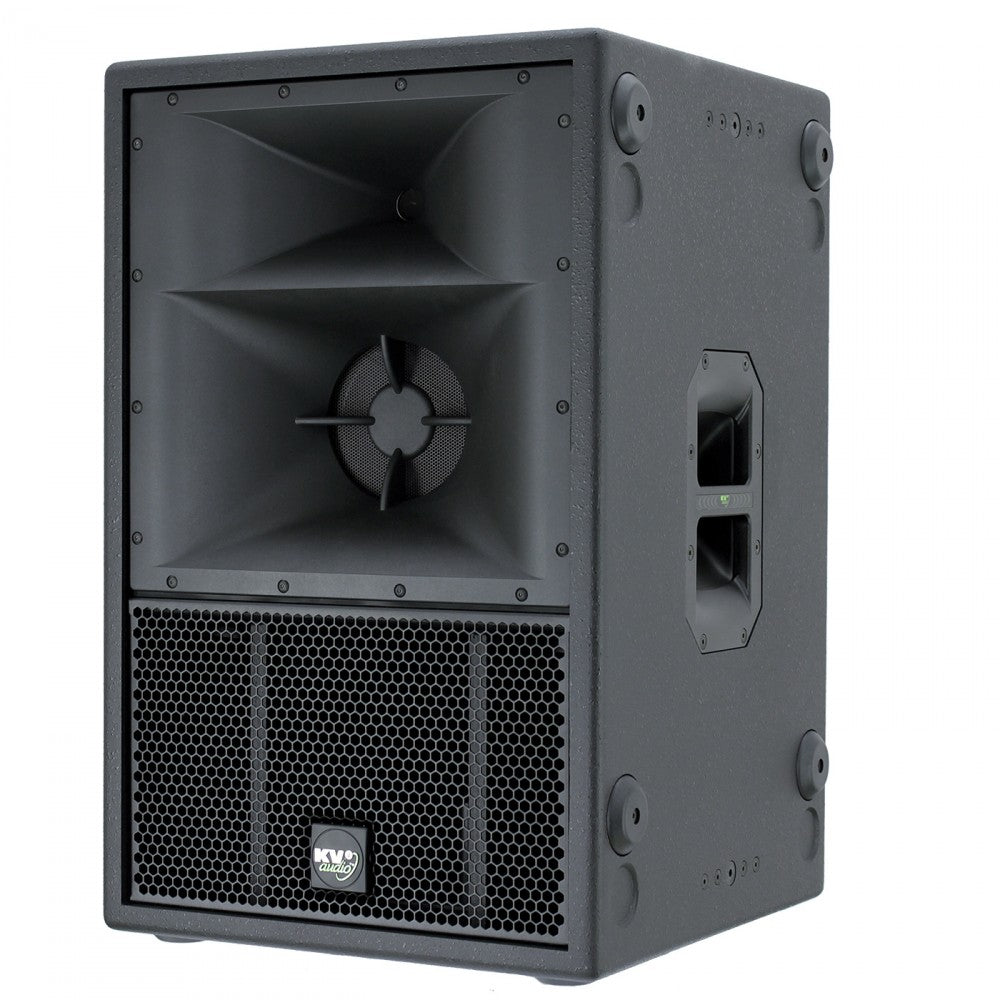

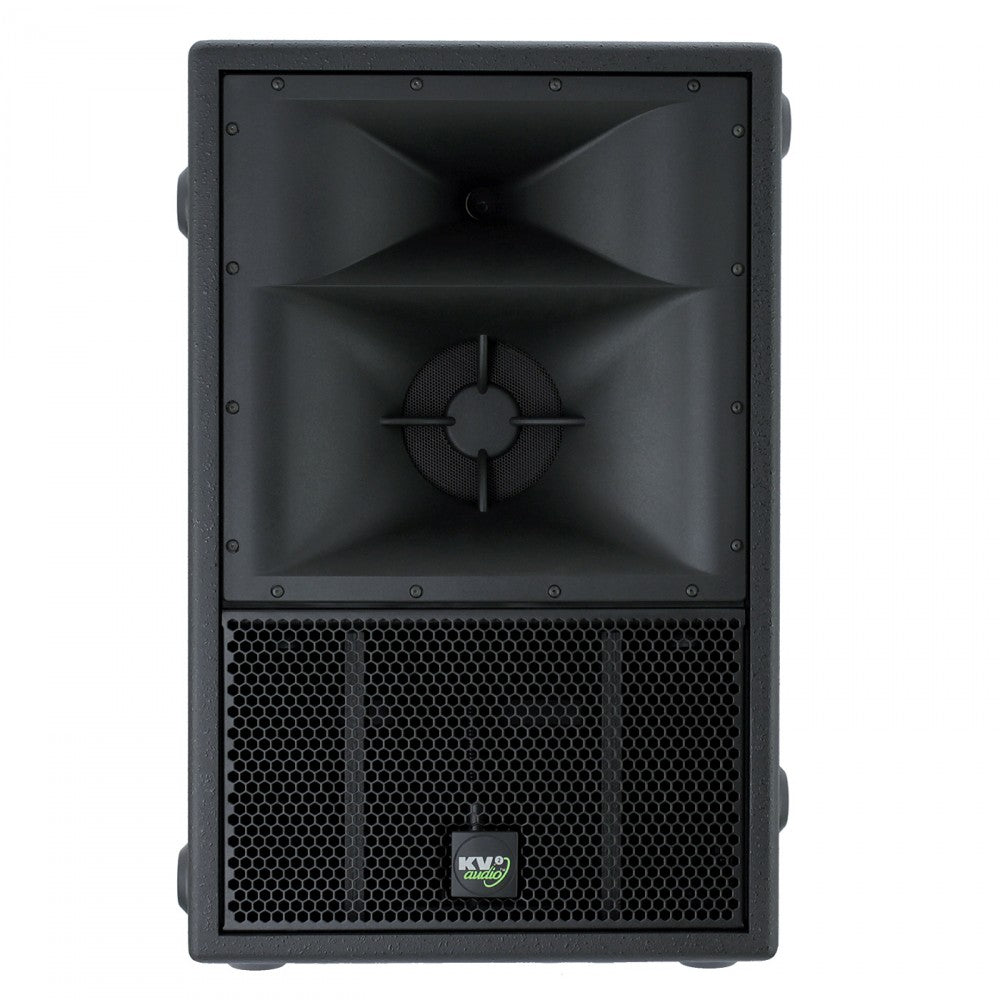

ES1.0 - The Core of Your ES System

The ES1.0 is a 3-way, very high output, active-driven, mid-high / mid-bass module designed as part of a complete ES system, driven by the EPAK2500/R control and amplification unit. The ES1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES1.0 (running two horizontally per side) it becomes an even more powerful tool, providing peak SPL of 139dB and a throw of up to 40 metres for applications of up to 3000 people.



System Acoustic Performance

Max SPL Long-term 131dB
Max SPL Peak 134dB
-3dB Response 130Hz to 20kHz
-10dB Response 85Hz to 28kHz
Impedance Low 16Ω Mid 8Ω High 8Ω
Crossover Point 130Hz, 500Hz, 2.5kHz

High Frequency Section

High Horn Coverage Horizontal / Vertical 90° x 40° rotatable
High Frequency Amplifier Requirement 100W from EPAK 2500/R
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material Titanium
Magnet Type Neodymium

Mid Range Section

Acoustic Design Horn Loaded
Mid Horn Coverage Horizontal / Vertical 90° x 40° rotatable
Midrange Amplifier Requirement 200W from EPAK 2500/R
Woofer Size / Voice Coil Diameter / Design 6" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Mid Bass Section

Acoustic Design Horn Loaded
Mid-bass Amplifier Requirement 600W from EPAK 2500/R
Woofer Size / Voice Coil Diameter / Design 12" / 3" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

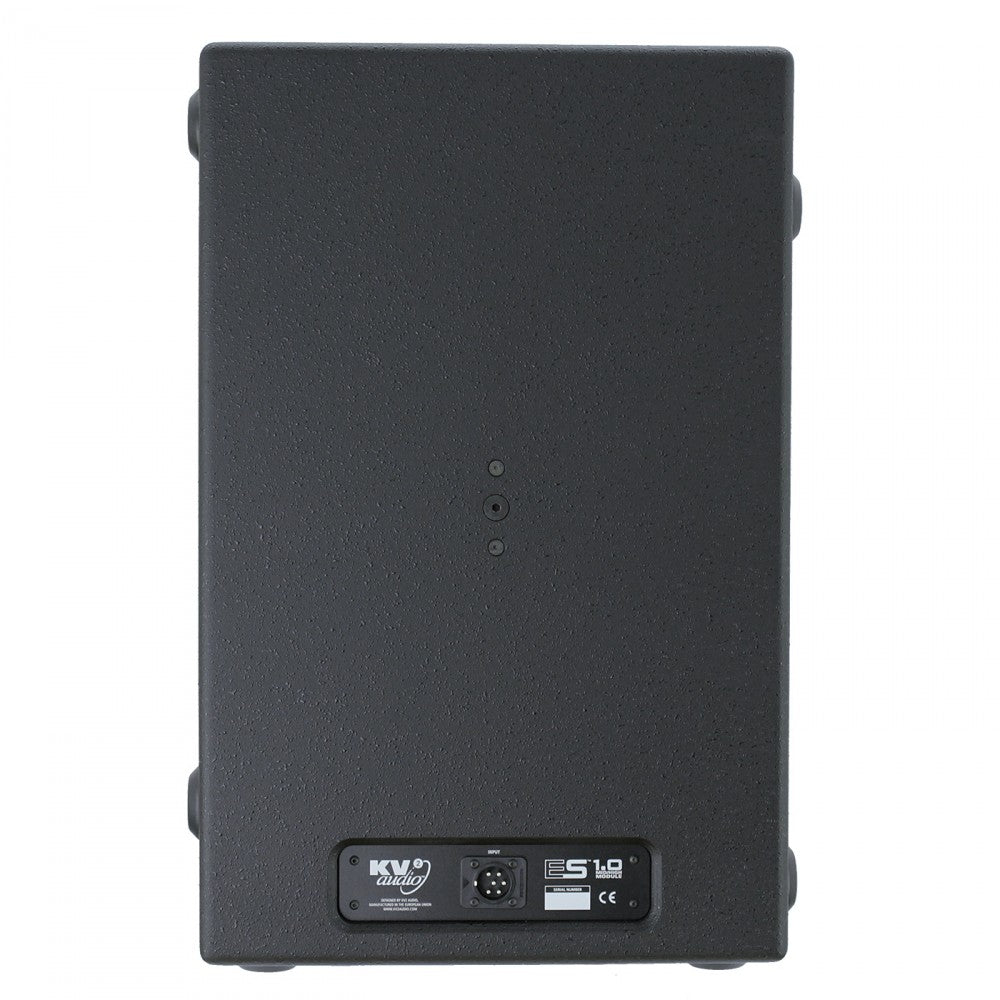

Speaker Input

Speaker Input AP6

Cabinet

Cabinet Material Baltic birch

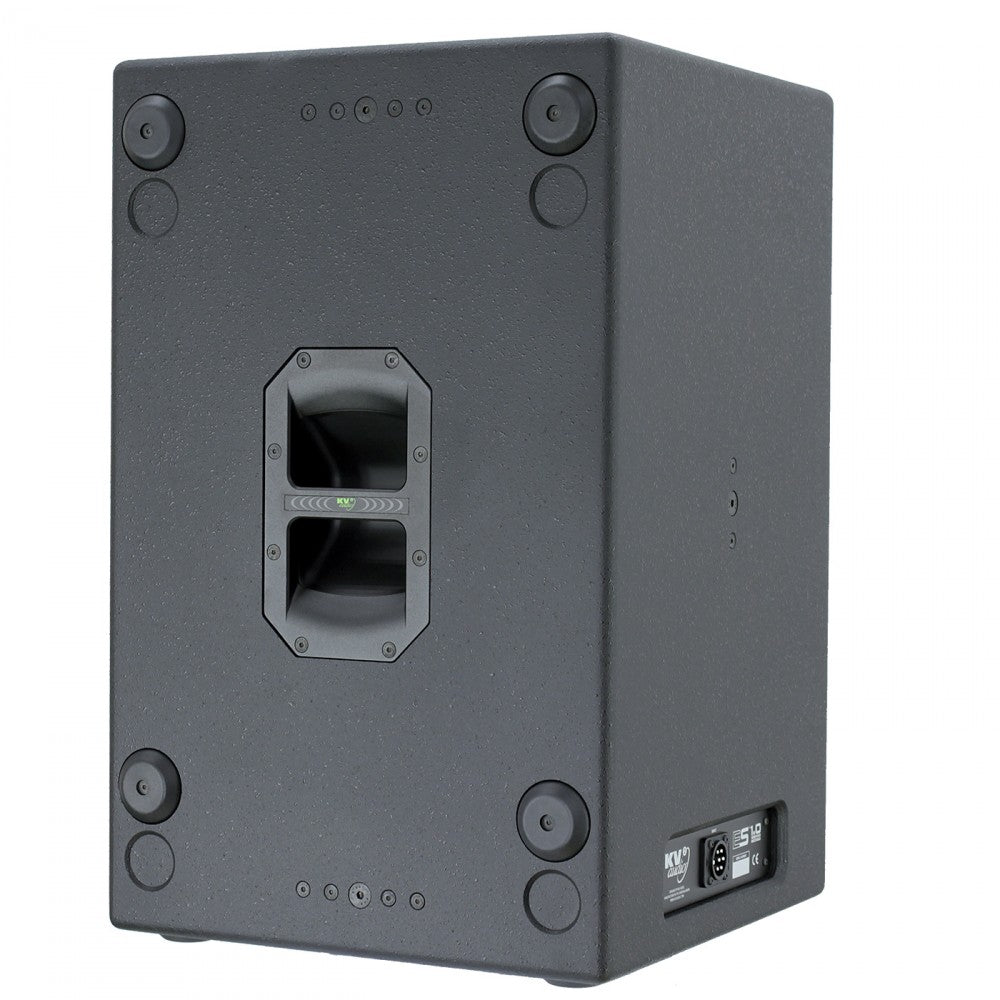

Handles 2
Pole Mount 35 mm
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 700 mm (27.55")
Width 450 mm (17.71")
Depth 450 mm (17.71")
Weight 34 kg (74.8lbs
