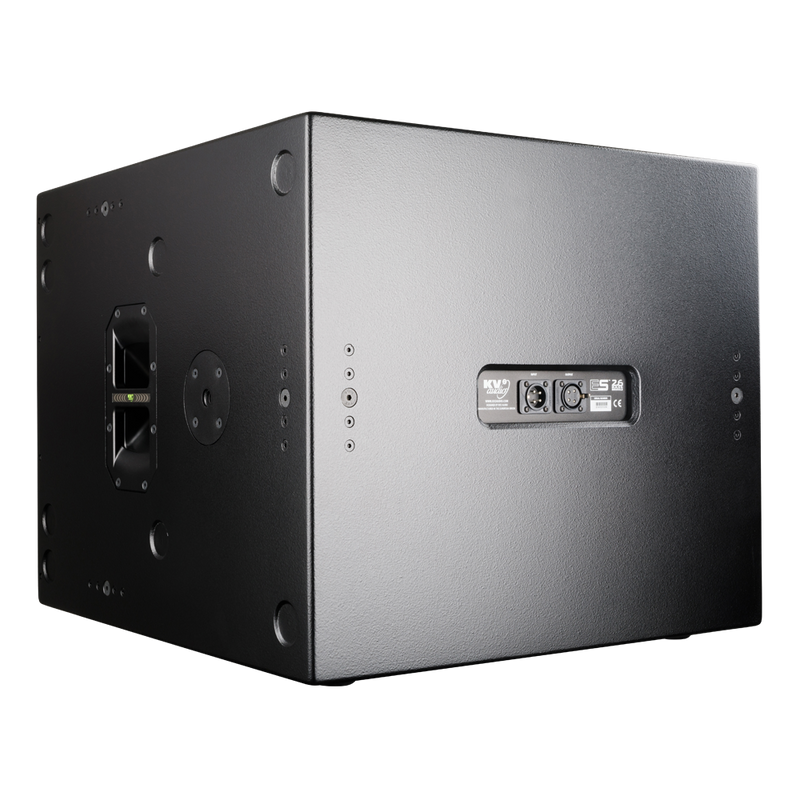

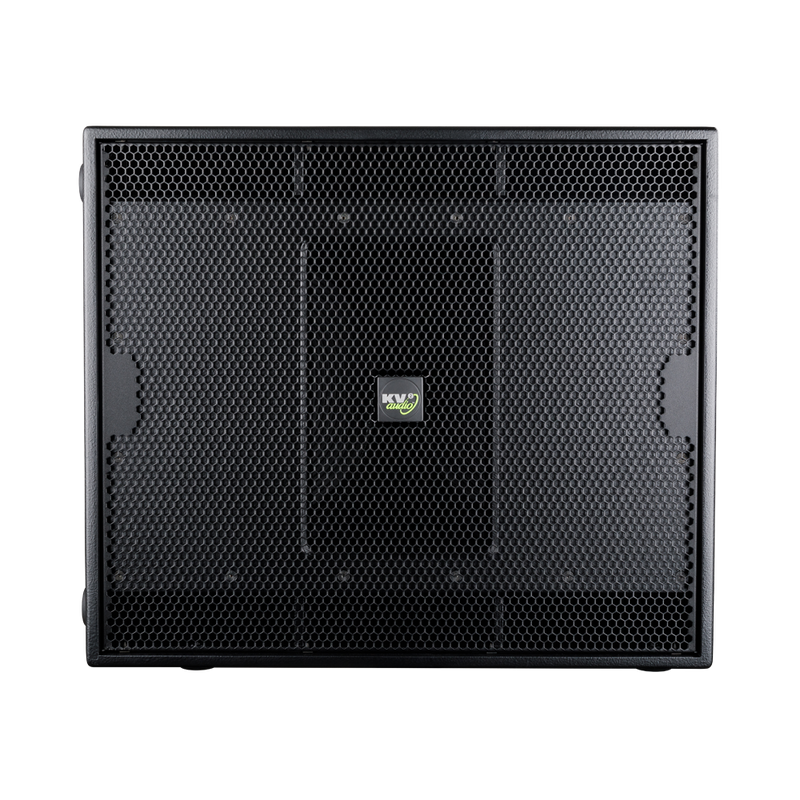

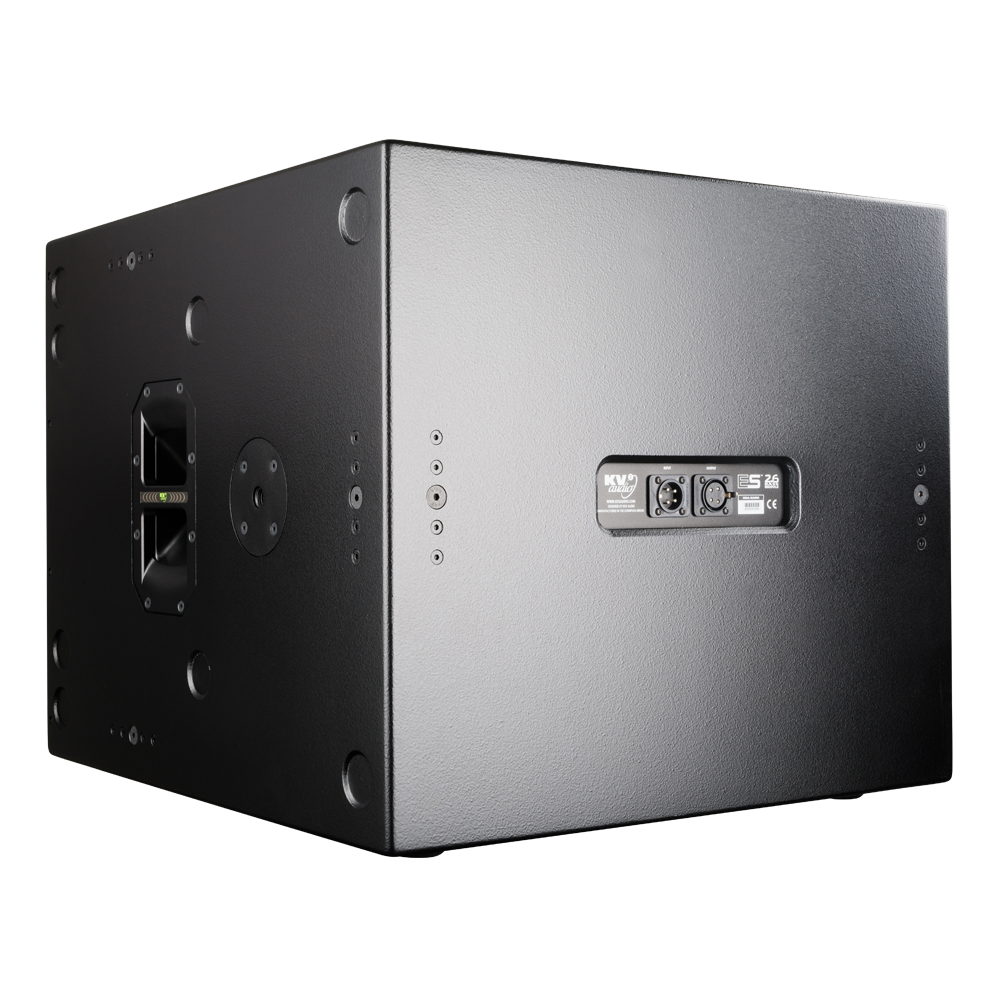

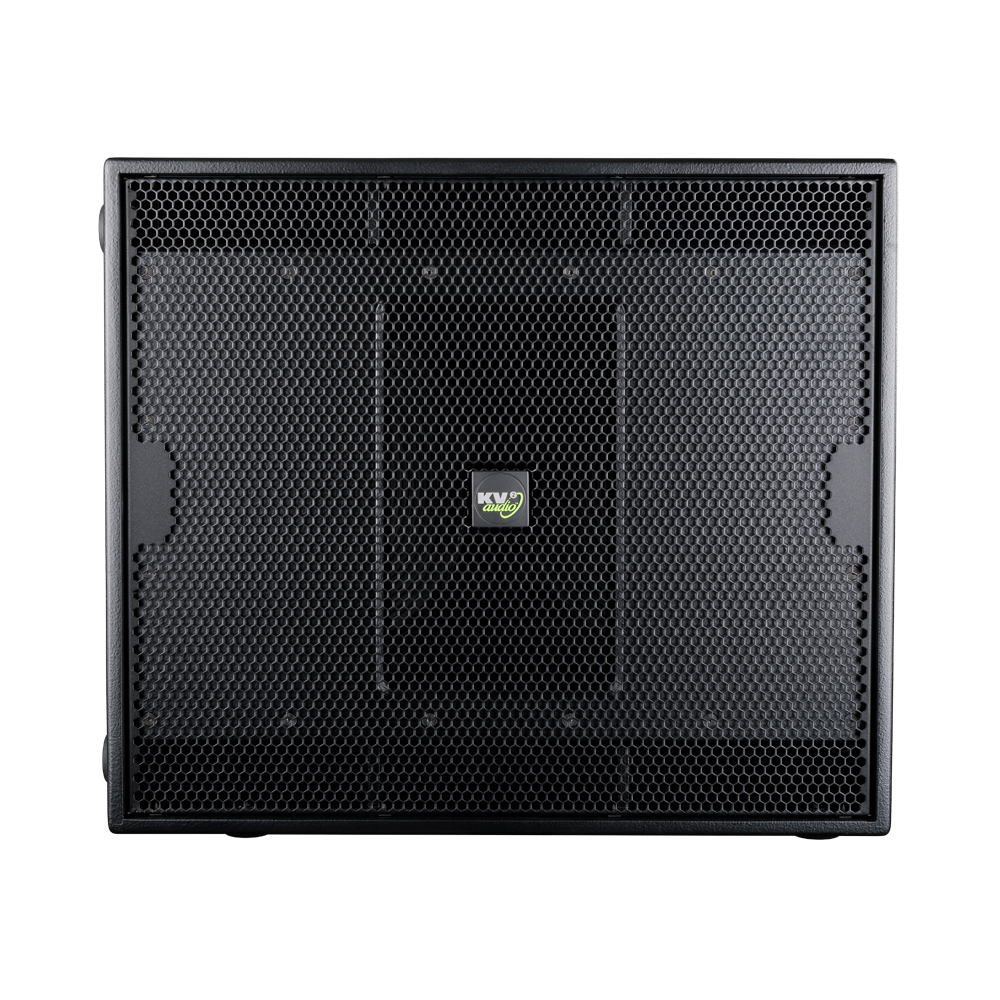

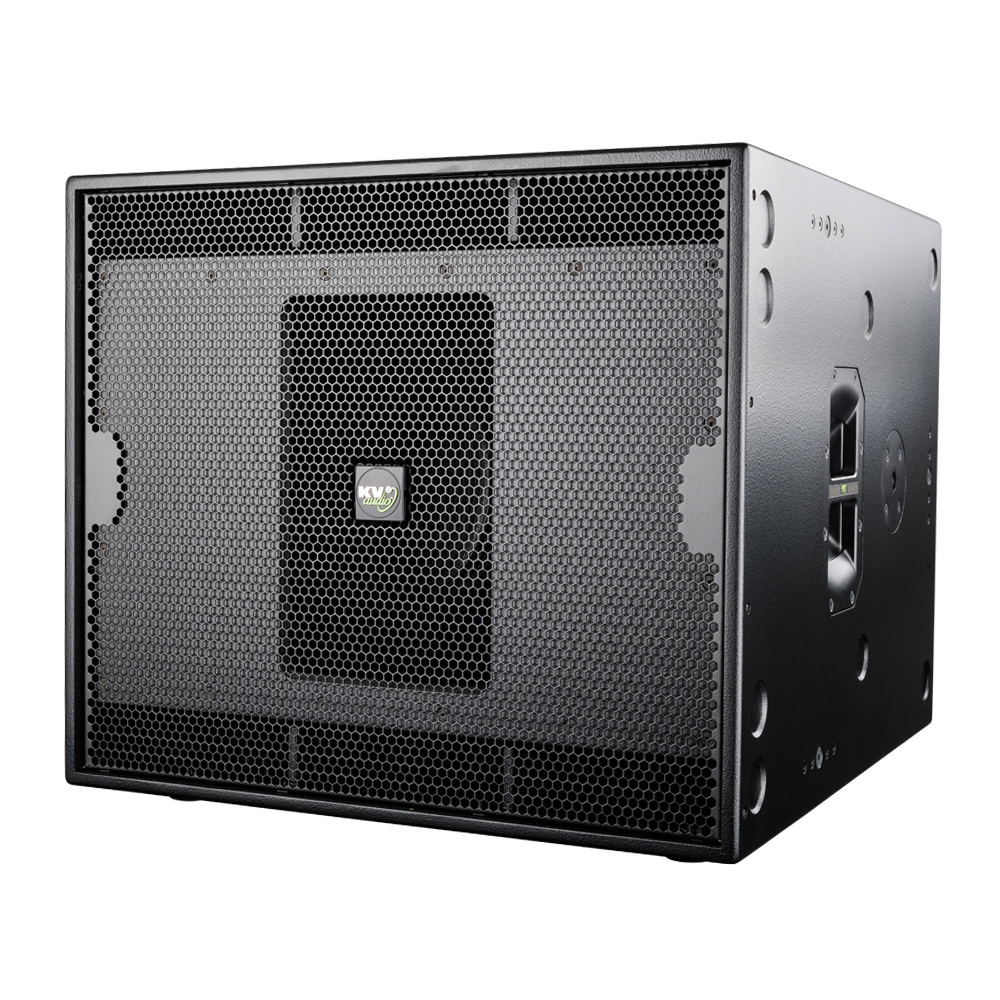

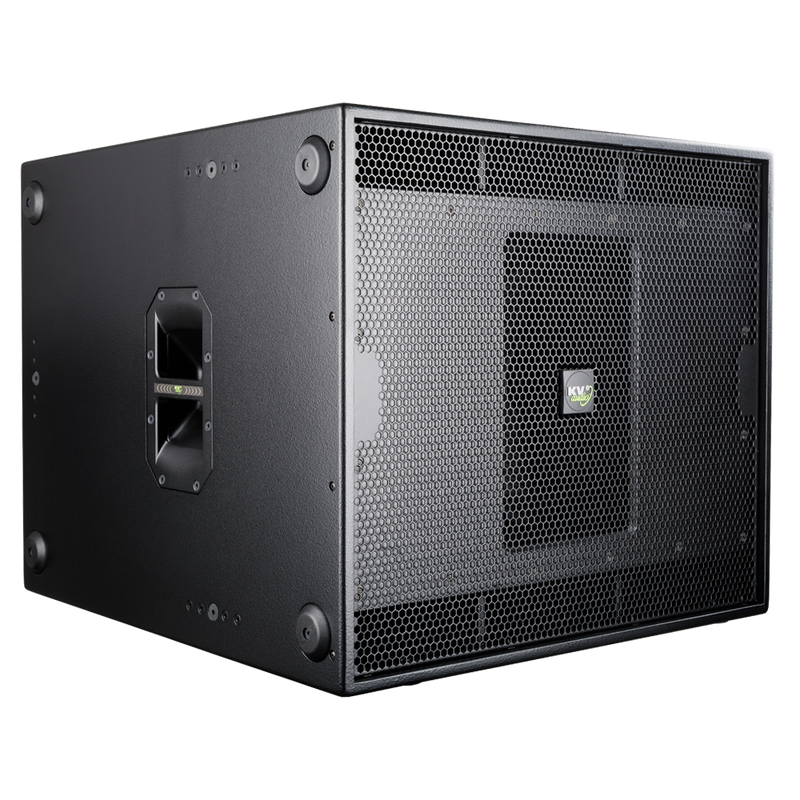

ES2.6 - High Output Active-Driven Subwoofer
The ES2.6 (8 ohms) is a double 15", high output subwoofer designed for the ES Series speaker system. Using new concepts in twin asymmetrical acoustic chambers they deliver very highspeaker loading and intense output from a relatively small cabinet footprint. Reproducing low frequencies with very high transient content, they are ideal for use in live applications or as part of a five way ES system utilising VHD1.21 and 2.21 subwoofers. Together with the ES1.0 and EPAK2500/R, the ES2.5/2.6 delivers the highest dynamic range of any other comparable system providing new levels of clarity, depth and resolution.
✅ Please note this can be used with the EX 2.5 MK2
System Acoustic Performance
| Max SPL Long-term |
132dB (137dB - 2x ES2.6) |
| Max SPL Peak |
135dB (140dB - 2x ES2.6) |
| -3dB Response |
38Hz to 130Hz |
| -10dB Response |
34Hz to 130Hz |
| Impedance |
8Ω |
| Crossover Point |
130Hz |
Low Frequency Section
| Acoustic Design |
Twin Asymmetrical loading |
| Low Frequency Amplifier Requirement |
800W / ES2.6 from EPAK2500/R |
| Number of Drivers |
2 |
| Woofer Size / Voice Coil Diameter / Design |
15" / 4" / Inside Outside |
| Diaphragm Material |
Epoxy Reinforced Cellulose |
| Magnet Type |
Ferrite |

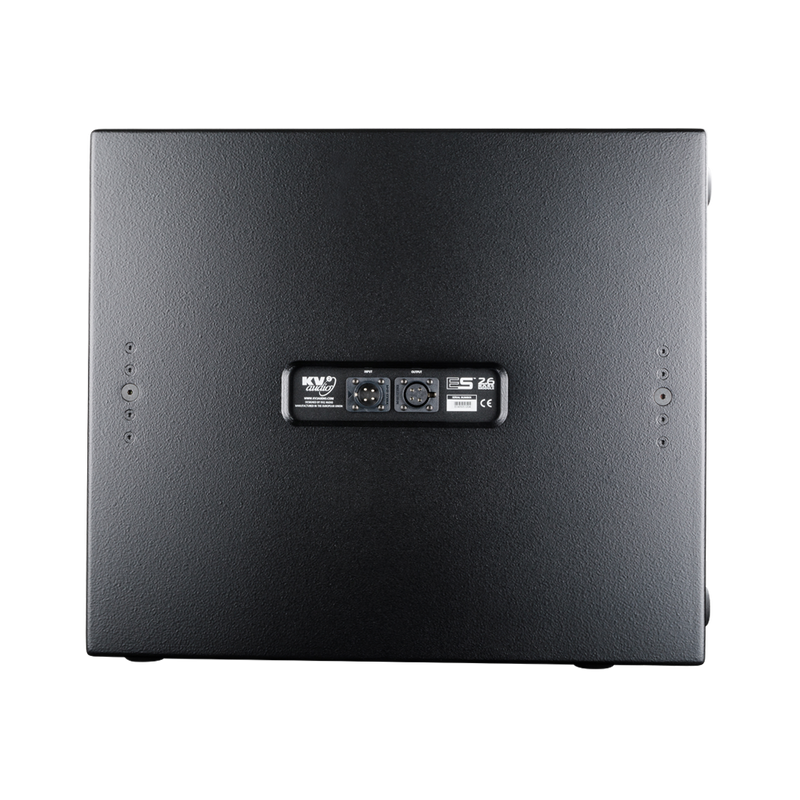

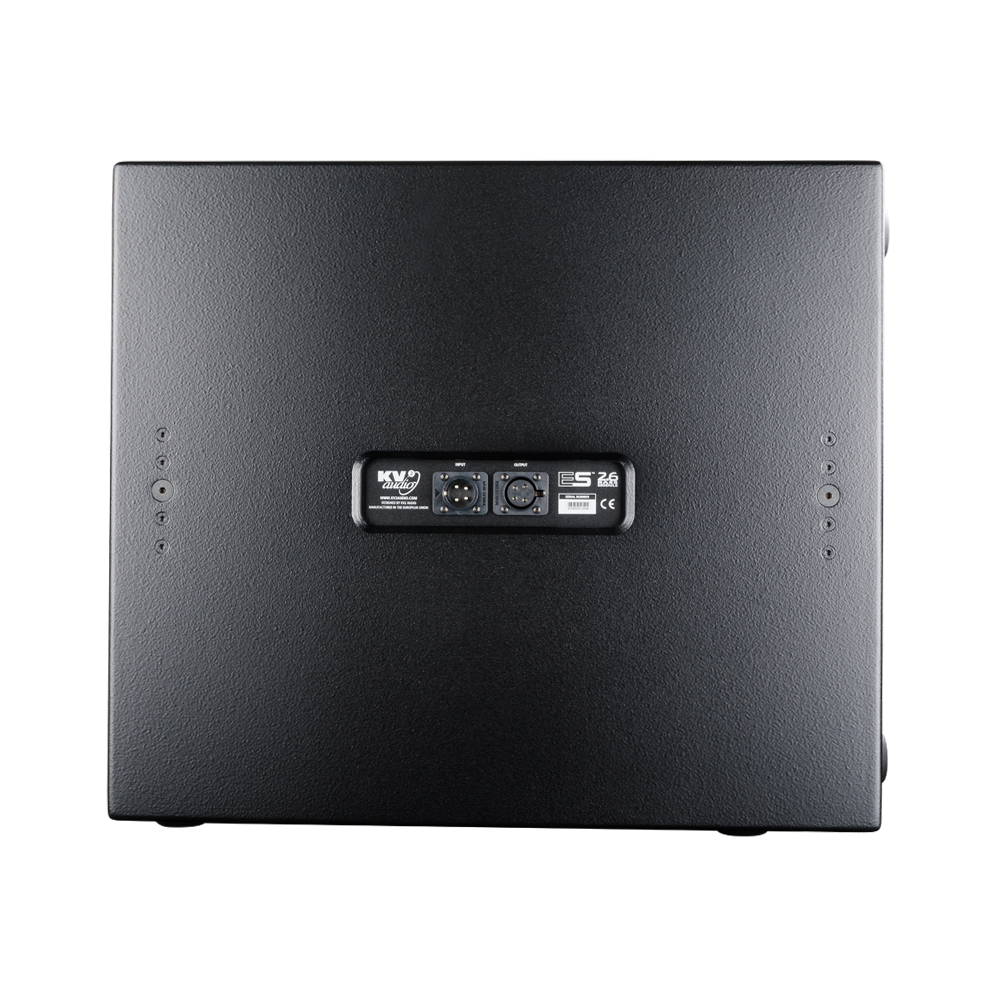

Speaker Input
Speaker Output
Cabinet
| Cabinet Material |
Baltic birch |
| Handles |
4 |
| Pole Mount |
M20 |
| Color |
"Orange peeled" Matt Black or any RAL |
Physical Dimensions
| Height |
600 mm (23.62") |
| Width |
700 mm (27.55") |
| Depth |
750 mm (29.52") |
| Weight |
74,7 kg (163.1lbs |
