🇬🇧 Kv2 Audio VHD2.16 ☎️Call for Quote


Description

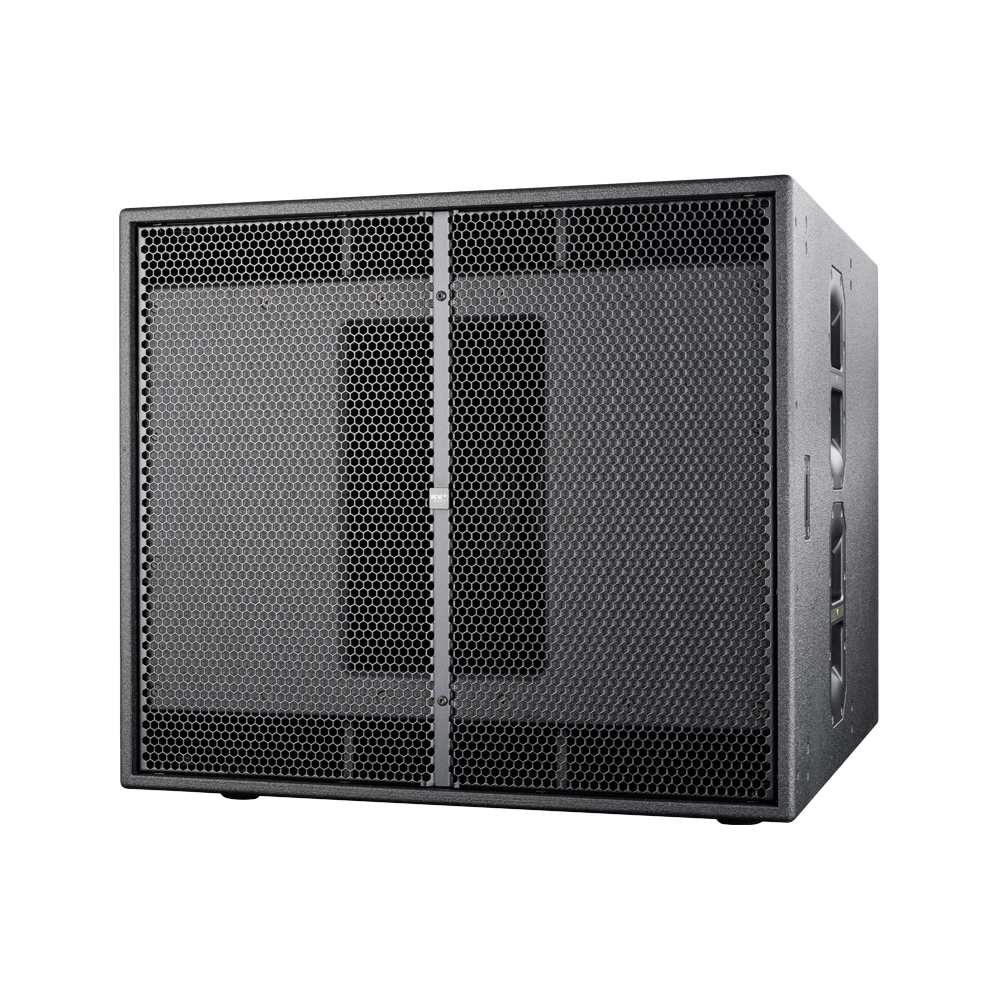

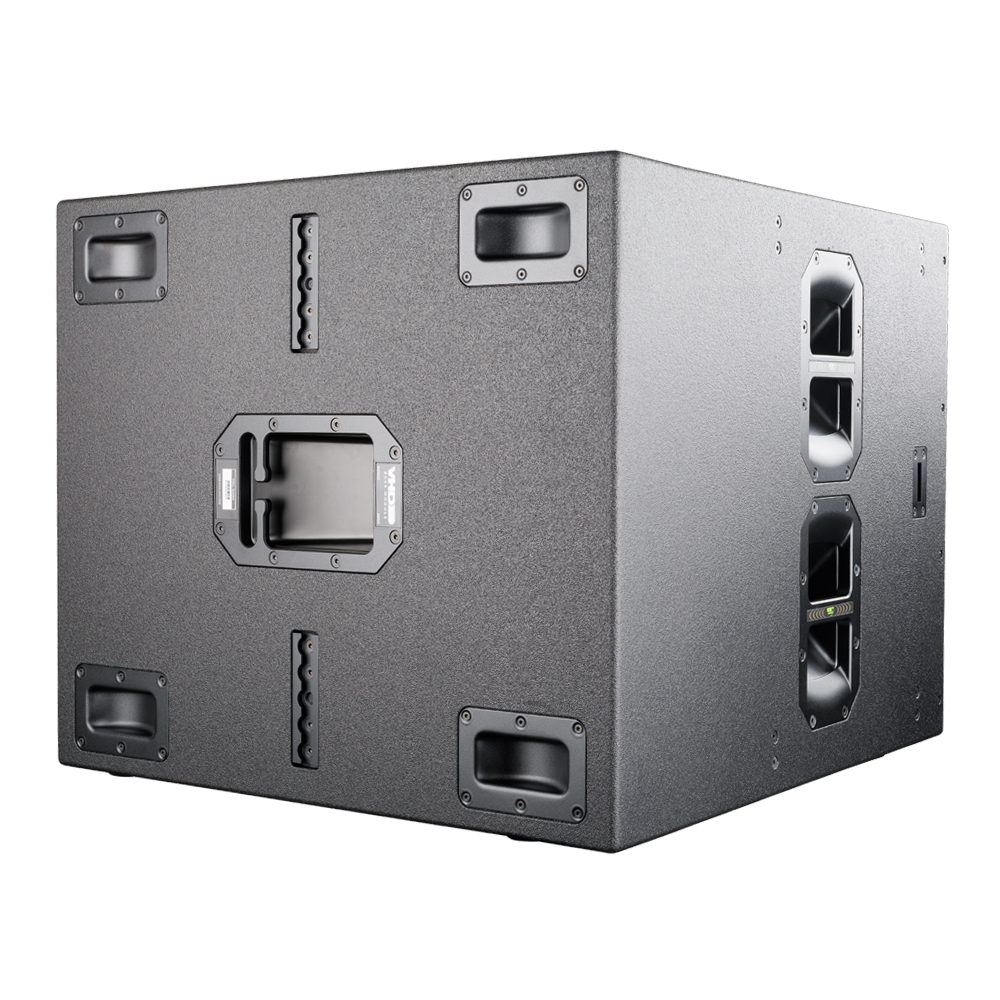

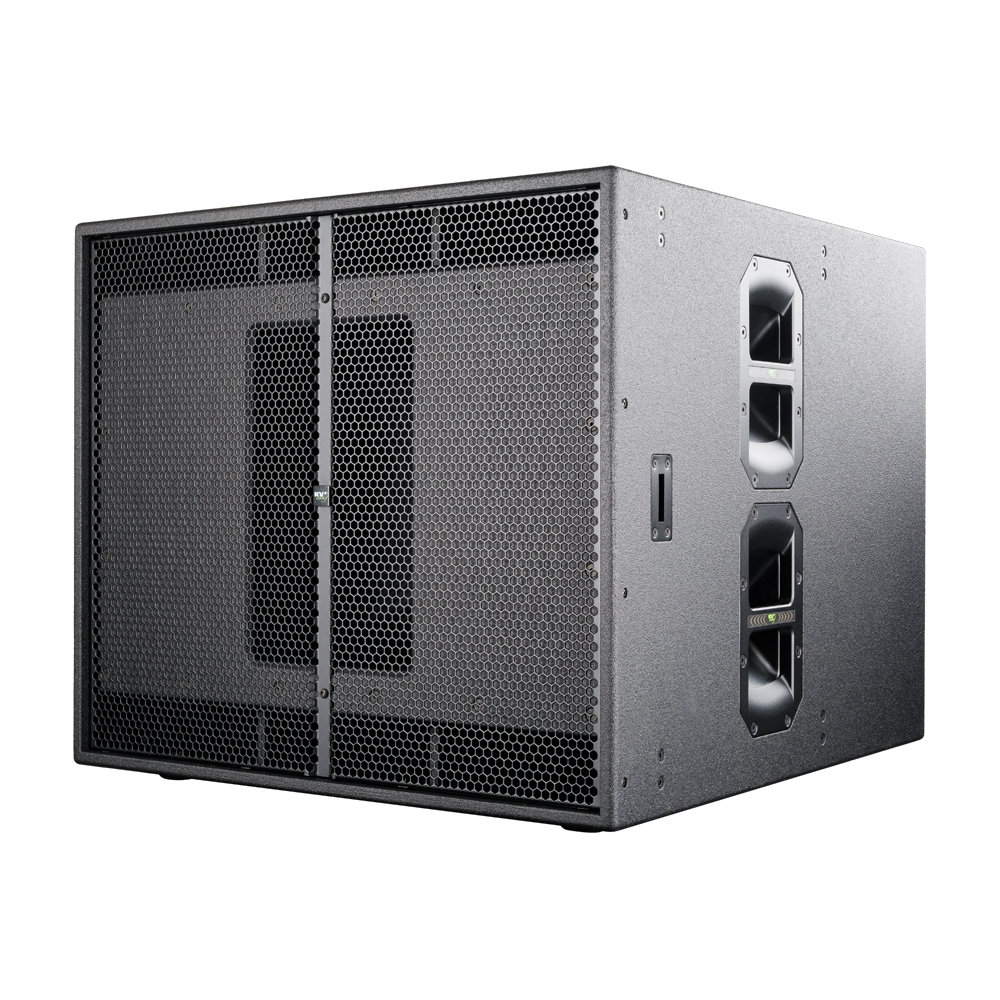

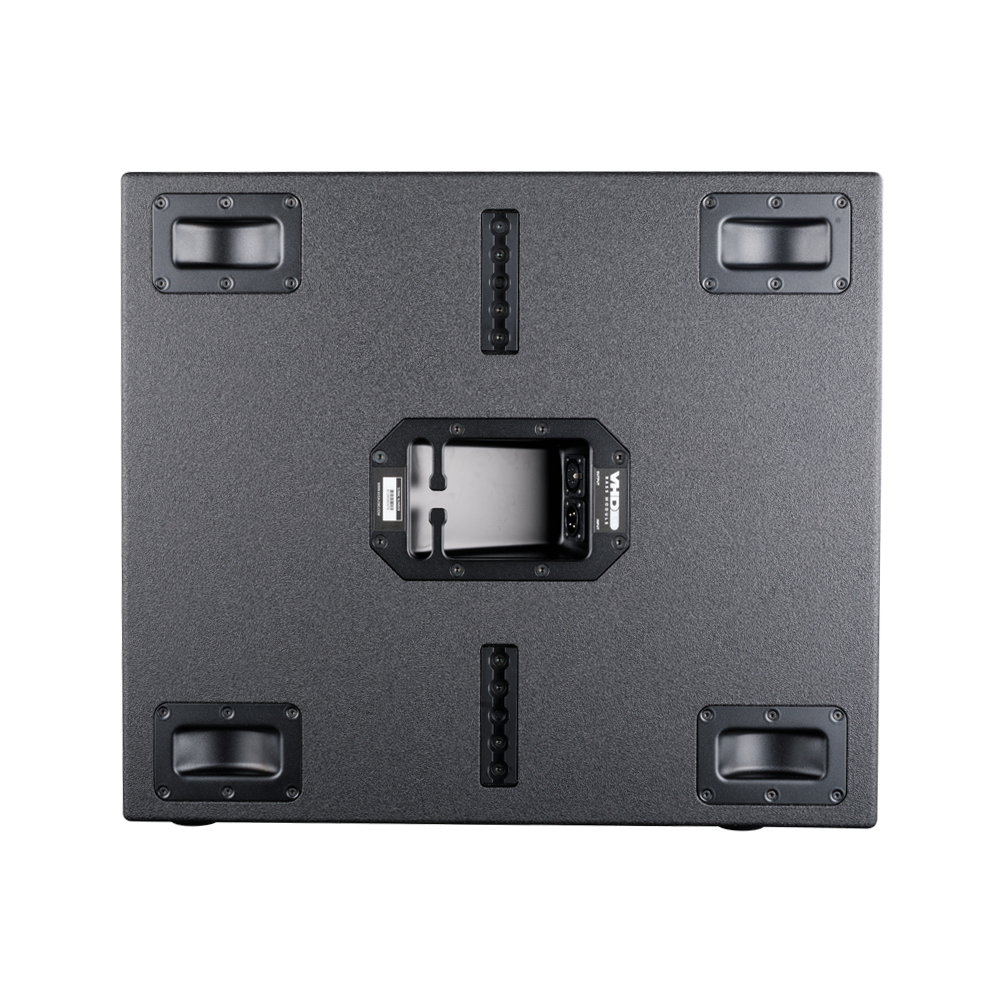

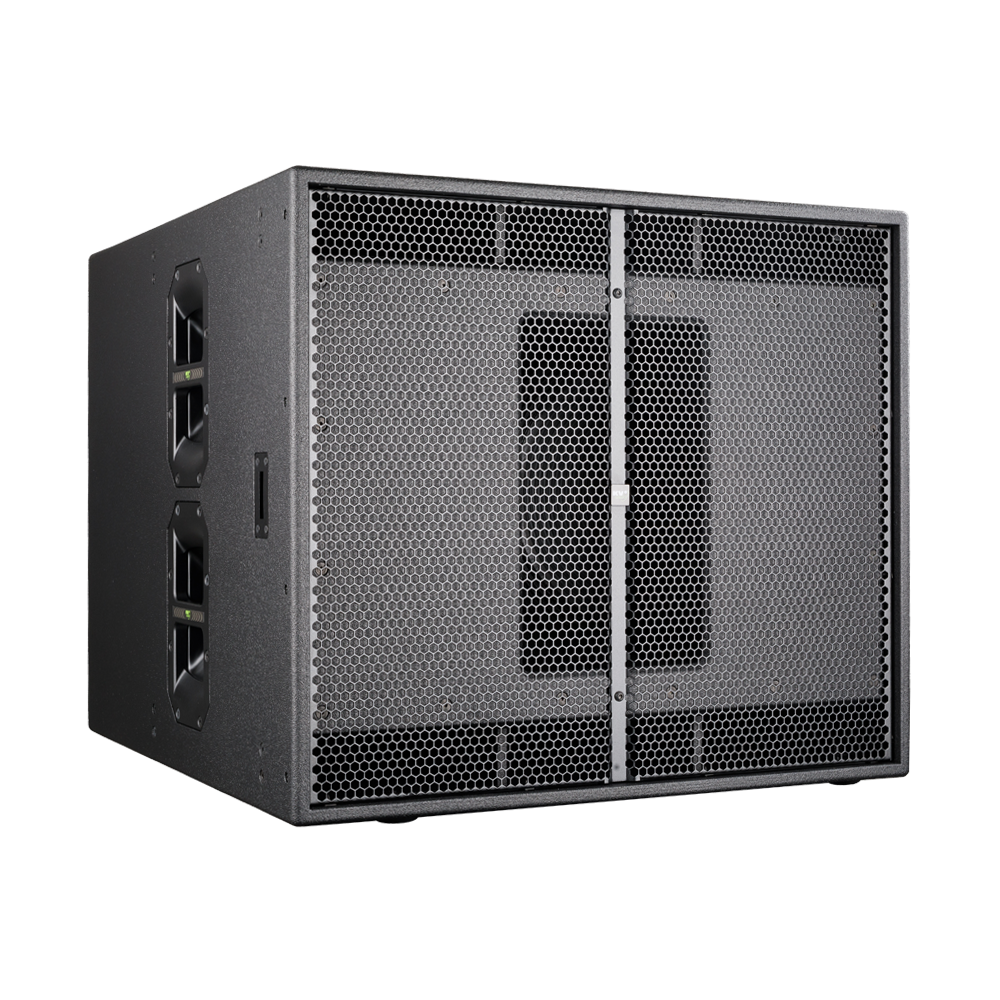

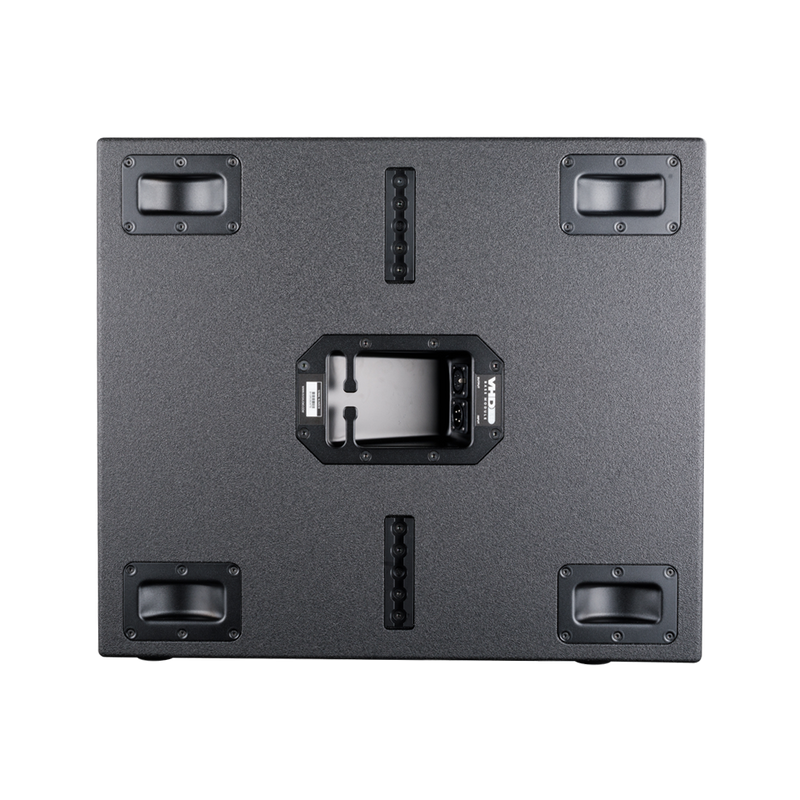

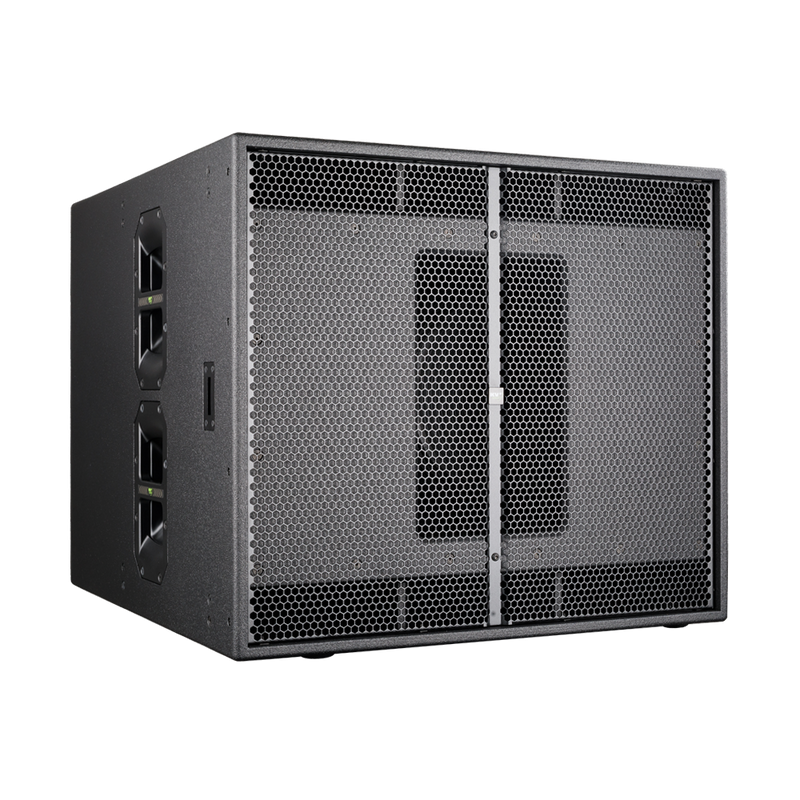

VHD2.16 - VHD Subwoofer Enclosure

The VHD2.16 double 15" subwoofer is a development of KV2 Audio’s ES 2.5 design that has become a standard for compact, high output subwoofer devices. Acoustical design is based on extreme loading of asymmetrical chambers delivering exceptional output and control. The cabinet is built to the same robust standards as the VHD4.18 and delivers output in excess of 140dB when configured in a pair. It also functions as a very effective upper bass cabinet when used alongside the ultra low frequency VHD1.21 or 2.21 subwoofers as part of a five way active system


System Acoustic Performance

Max SPL Long-term 143dB (4x VHD2.16)
Max SPL Peak 146dB (4x VHD2.16)
-3dB Response 37Hz to 130Hz
-10dB Response 32Hz to 130Hz
Impedance
Crossover Point 100 to 130Hz

Low Frequency Section

Acoustic Design Twin Asymmetrical loading
Low Frequency Amplifier Requirement 1600W /2x VDH2.16 (VHD3200 amp.)
Woofer Size / Voice Coil Diameter / Design 2x 15" / 4" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Advanced ventilated neodymium

Speaker Input

Speaker Input AP4 male

Speaker Output

Speaker Output AP4 female

Cabinet

Cabinet Material Baltic birch
Handles 6
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 600 mm (23.62")
Width 700 mm (27.55")
Depth 750 mm (29.52")
Weight 65 kg (143lbs)
