🇮🇹 RCF AYRA PRO 10 SUB Studio & Recording


Price:
$699

Description


  • True active 300 W RMS class D power amplifier

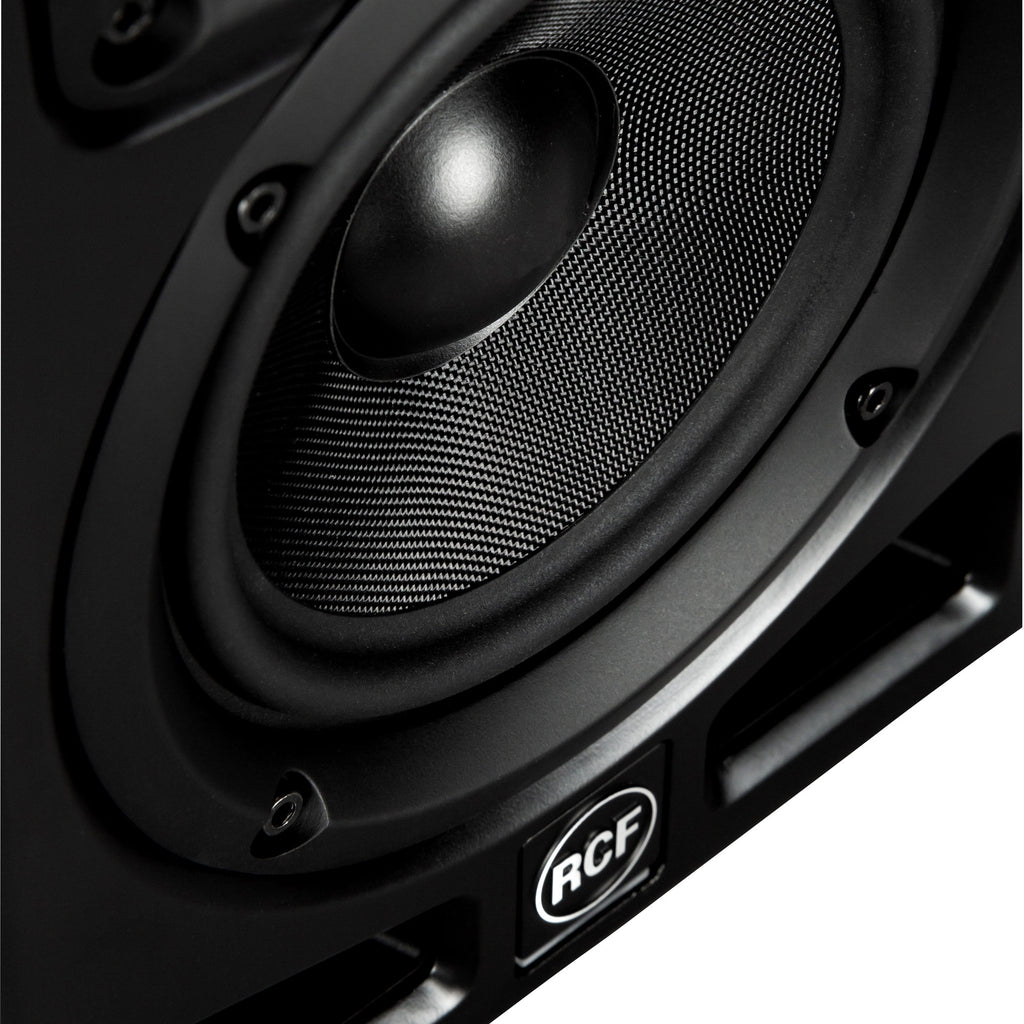

  • 10" composite fiber woofer
  • 25 hz – 120 hz frequency response
  • Stereo input board, stereo x-over output

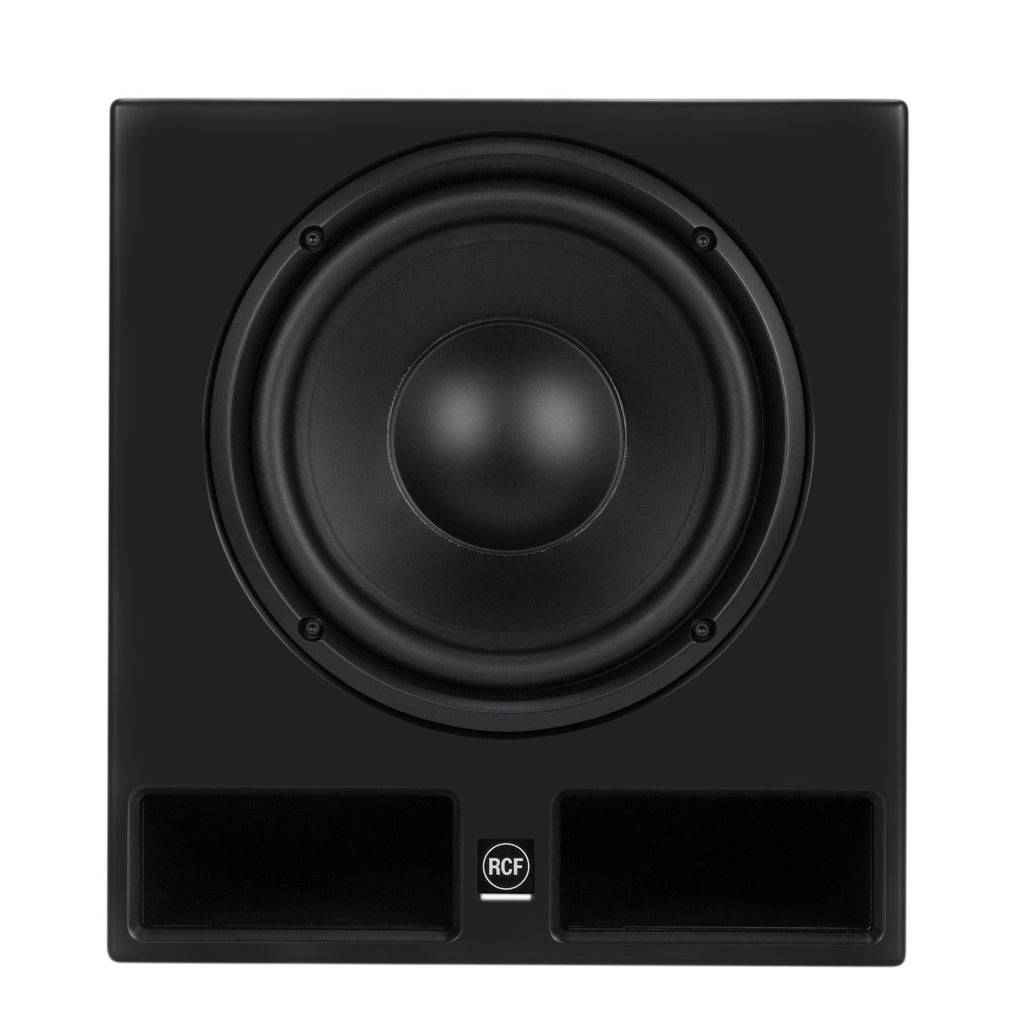

  • Low turbulence frontal bass reflex port
  • Variable 2nd order crossover from 50 to 120 hertz
AYRA PRO10 SUB is an active reference subwoofer designed for AYRA PRO studio monitors, also suitable for low-frequency extension on third-party audio systems. With tight and accurate bass reproduction it's ideal for audio recording, mixing, multichannel systems, desktop use, and other creative applications

PART NUMBER:

  • 13000608
    AYRA PRO10 SUB
    90-240V
    EAN 8024530017699
  • 13000733
    AYRA PRO10 SUB 100V JP
  • 13000734
    AYRA PRO10 SUB 115V US
  • 13000735
    AYRA PRO10 SUB 240V UK

FEEL THE MIX

Pairing the AYRA PRO10 SUB with RCF studio monitors delivers an optimized monitoring experience with extended headroom and powerful low-end. With 300 Watts RMS Class-D Amplifier, frequency range from 25 up to 120 Hz and a variable 2nd order crossover from 50 to 120 hertz, you have enough power for any mixing room size. The bypass footswitch disables the high-pass crossover and mutes the subwoofer, providing full range audio to the monitors without switching off the subwoofer.



LOW RESONANCE AND MINIMUM DISTORTION

Drawing from RCF’s 70-plus years knowledge in speaker production, the low-resonance fiberboard box design follows the requests of many professional sound engineers. Undesirable cabinet’s resonances are removed with careful electro-acoustic design.



CLASSIC BASS REFLEX PORT
The flow becomes turbulent
and the vortices are evident

LAMINAR FLOW VENTED PORT
Good aerodynamic behaviour of the air (laminar),
gaining efficiency and reducing distortions





THE GOOD FLOW

The advanced vented port is a proprietary solution that helps to achieve a good aerodynamic behavior of the air (laminar), gaining efficiency and reducing distortion.









BRING OUT THE LOWS

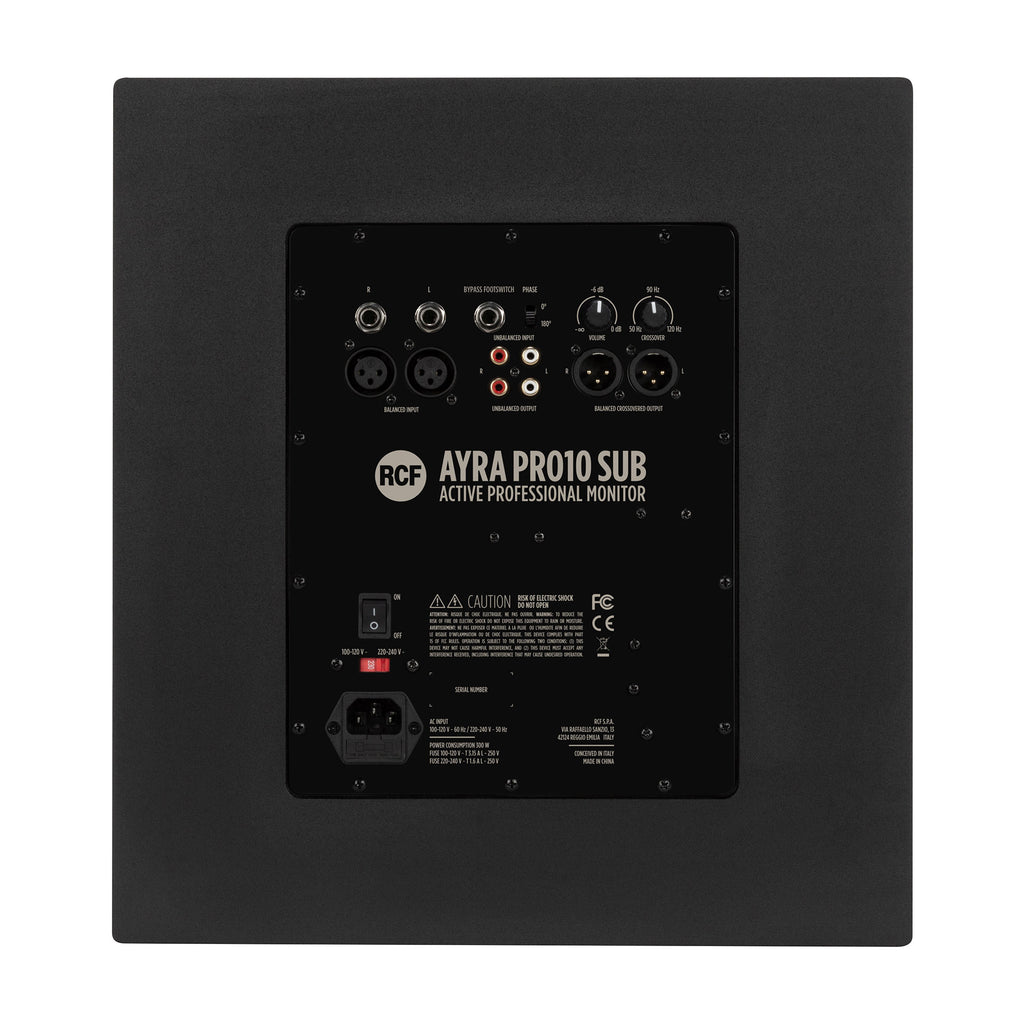

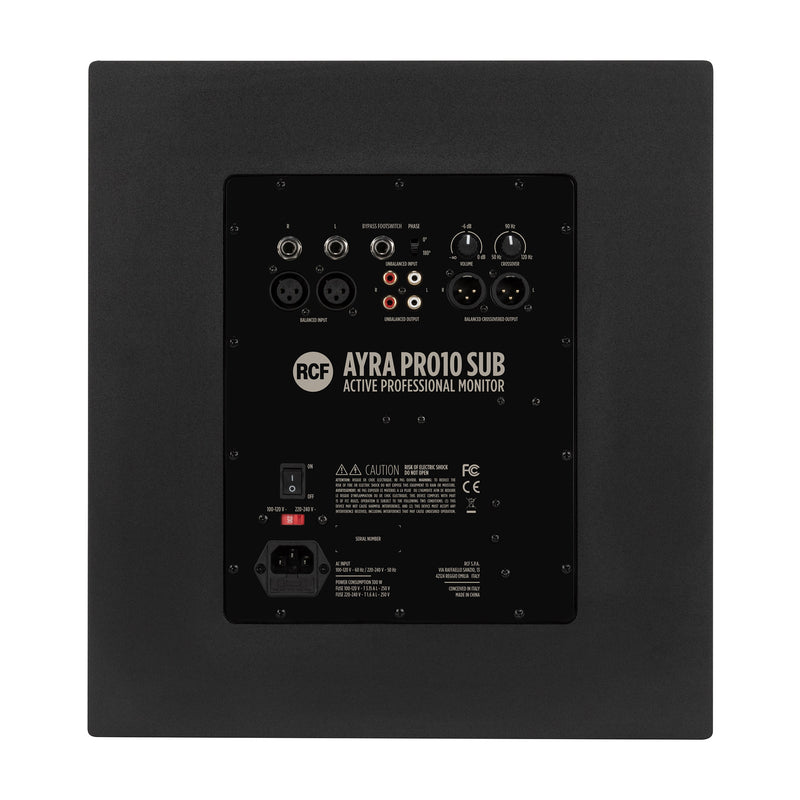

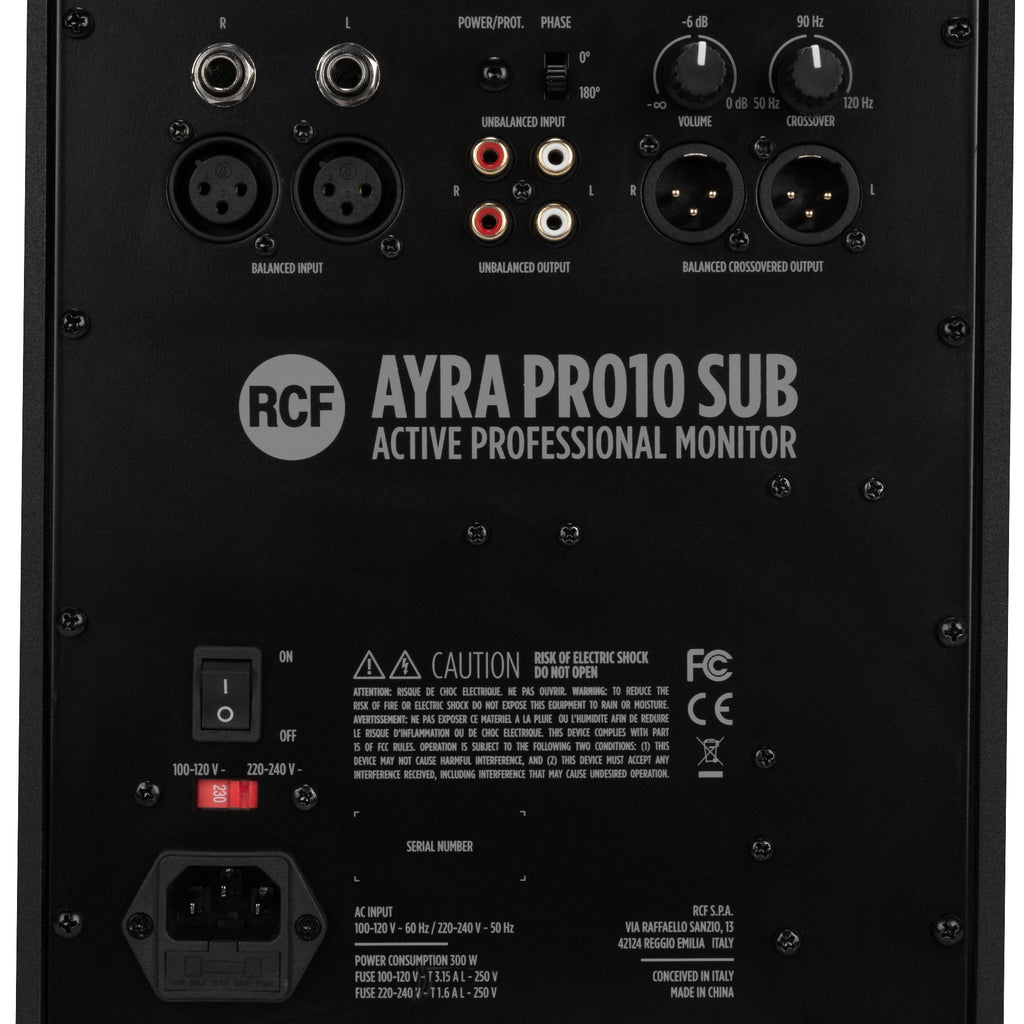

Complete range of analog connectors and controls on the rear panel let you master your monitoring system at its best. The low-frequency behavior of the system is managed carefully with a variable crossovered output for stereo monitors. The low turbulence frontal bass reflex port allows for the best placement flexibility.



SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
30 Hz ÷ 120 Hz
MAX SPL @ 1M:
120 dB
Transducers
WOOFER:
10'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack, RCA
OUTPUT CONNECTORS:
XRL Stereo
INPUT SENSITIVITY:
0 dBu
Processor section
HI-PASS FREQUENCIES:
Selectable 50-120Hz
LOW-PASS FREQUENCIES:
Soft Limiter
CONTROLS:
Level -inf./0dB, Selectable High-pass filter 50-120Hz, Bypass footswitch, 0°/180° phase selector
Power section
TOTAL POWER:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
600 W Peak, 300 W RMS
CONNECTIONS:
XLR, Jack, RCA
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
MDF
COLOR:
Black - RAL 9005
Size
HEIGHT:
400 mm / 15.75 inches
WIDTH:
355 mm / 13.98 inches
DEPTH:
390 mm / 15.35 inches
WEIGHT:
17.8 kg / 39.24 lbs
Shipping informations
PACKAGE HEIGHT:
500 mm / 19.69 inches
PACKAGE WIDTH:
460 mm / 18.11 inches
PACKAGE DEPTH:
500 mm / 19.69 inches
PACKAGE WEIGHT:
21 kg / 46.3 lbs
