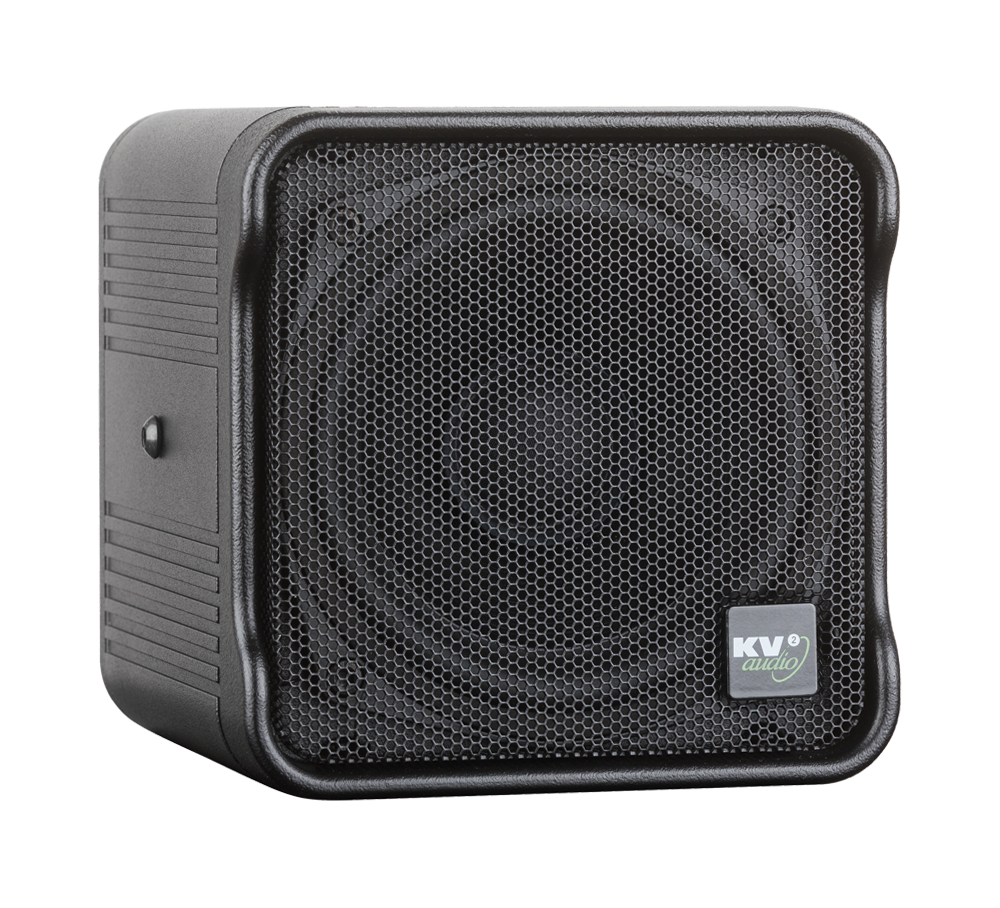

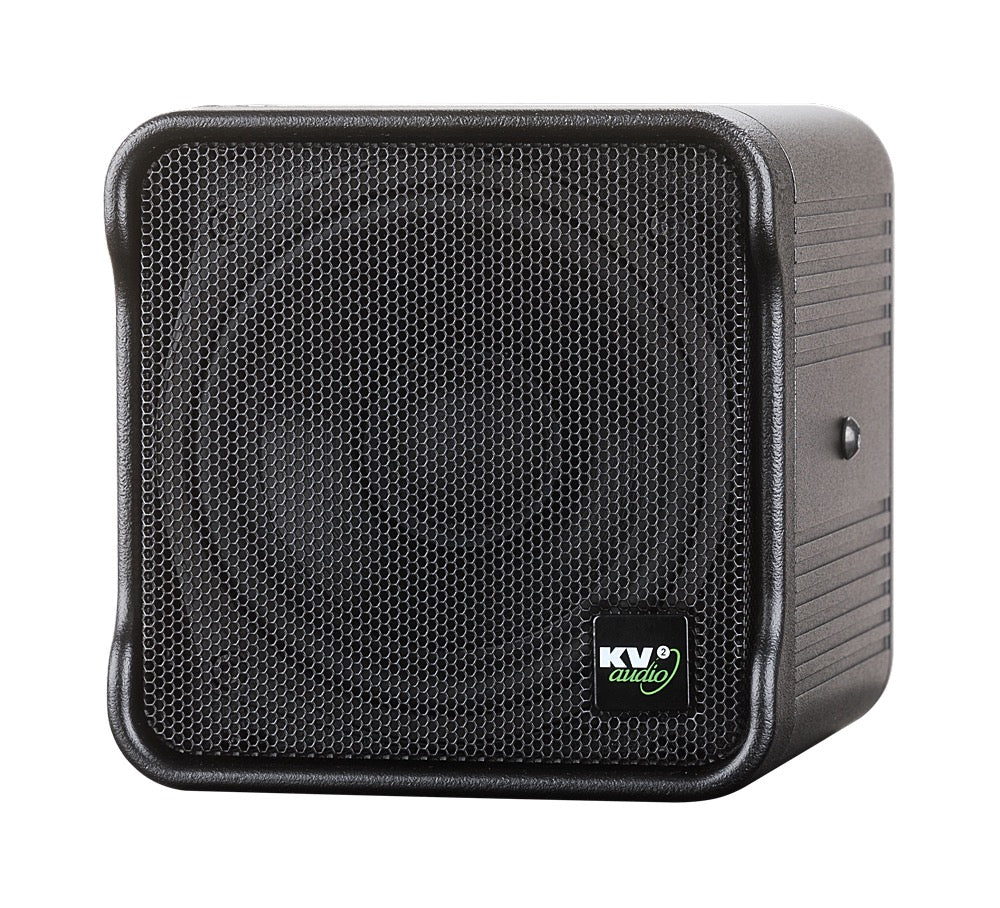

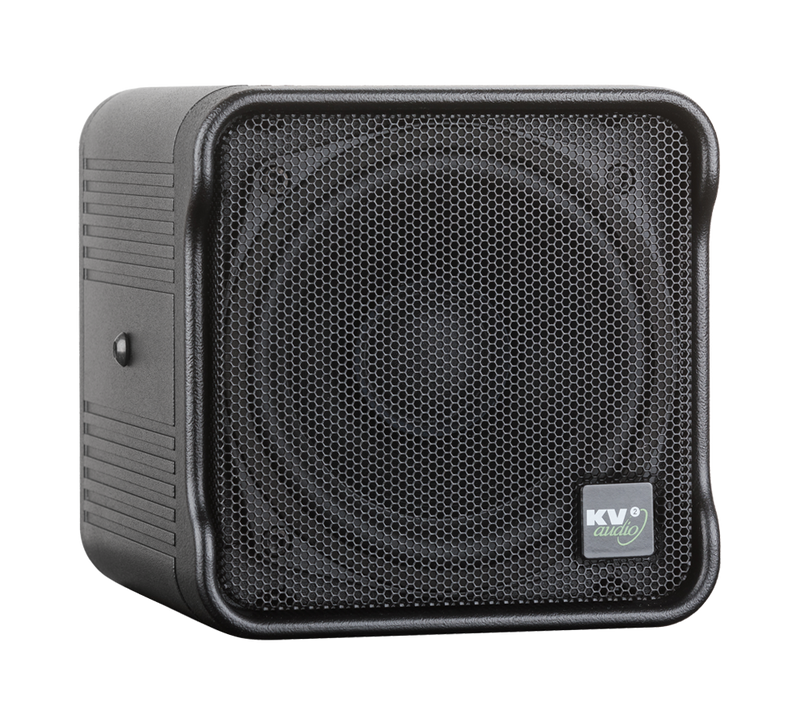

ESD Cube - Ultra Compact Passive Speaker
The ESD Cube is a very high quality ultra compact low profile 5” passive loudspeaker utilising a unique trans-coil design for superior vocal reproduction, extended high frequency response, increased dynamic range and the lowest distortion of any comparable speaker in its class. Housed in an aluminium enclosure its compact dimensions make it extremely discreet for peripheral reinforcement in theaters, bars, clubs, churches, museums or Tourist attractions. Along with our new ESP1000 amplifier a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10 subwoofers can be run - learn more about the combinations. A simple proprietary flying bracket completes the system for a low profile look and easy installation and it's included with the box.
System Acoustic Performance
| Max SPL Long-term |
110dB |
| Max SPL Peak |
113dB |
| -3dB Response |
90Hz to 18kHz (with ESP1000 equalization) |
| Recommended Power |
100W |
| Sensitivity |
90dB |
| Impedance |
8Ω |
| Crossover Point |
no - full range |
Full Range Transducer
| Acoustic Design |
Closed box, Front Loaded |
| Magnet Type |
Neodymium |
| Protection |
Thermal breaker - autoreset |
| Number of drivers |
1 |
| Woofer Size |
5" AIC Trans-coil |
| Diaphragm Material |
Epoxy Reinforced Cellulose |
Signal Output

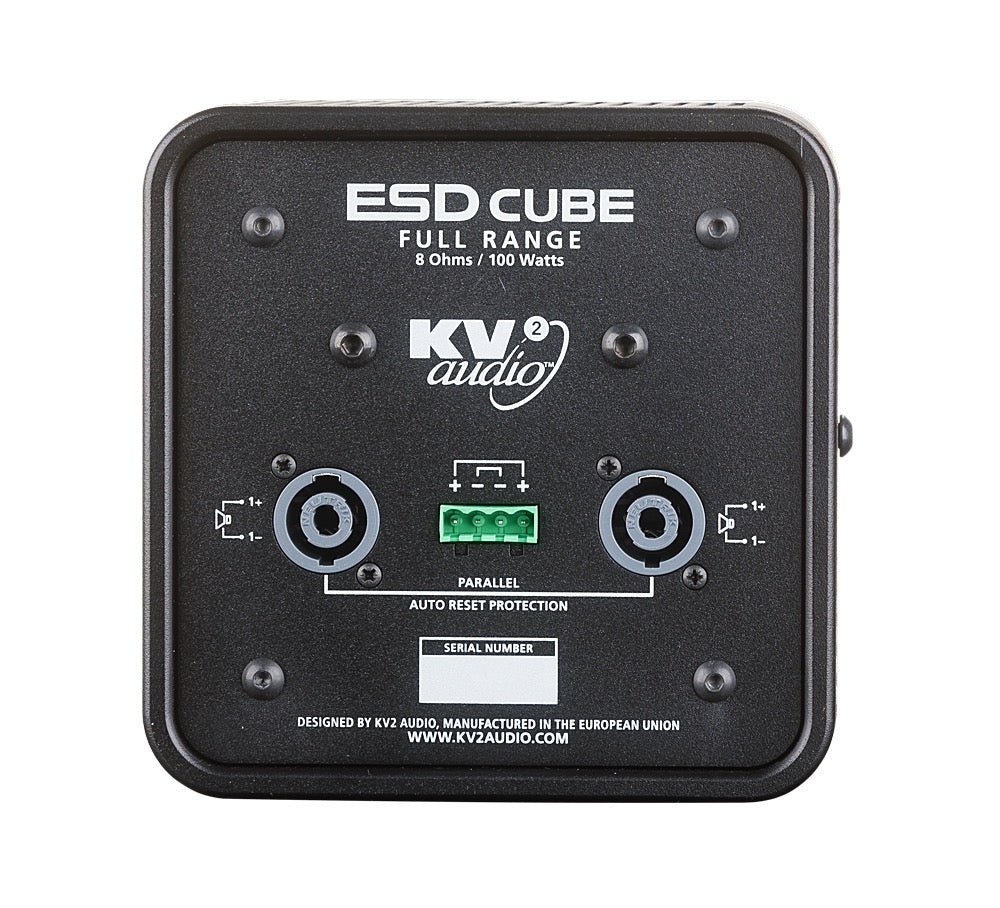

Speaker Input
| Speaker Input |
2x Neutrik Speakon®, Terminal Block |
Cabinet
| Cabinet Material |
Extruded Aluminium |
| Color |
Matt Black or any RAL |
Physical Dimensions
| Height |
154 mm (6") |
| Width |
154 mm (6") |
| Depth |
163 mm (6.4") |
| Weight |
3 kg (6,6 lbs |
