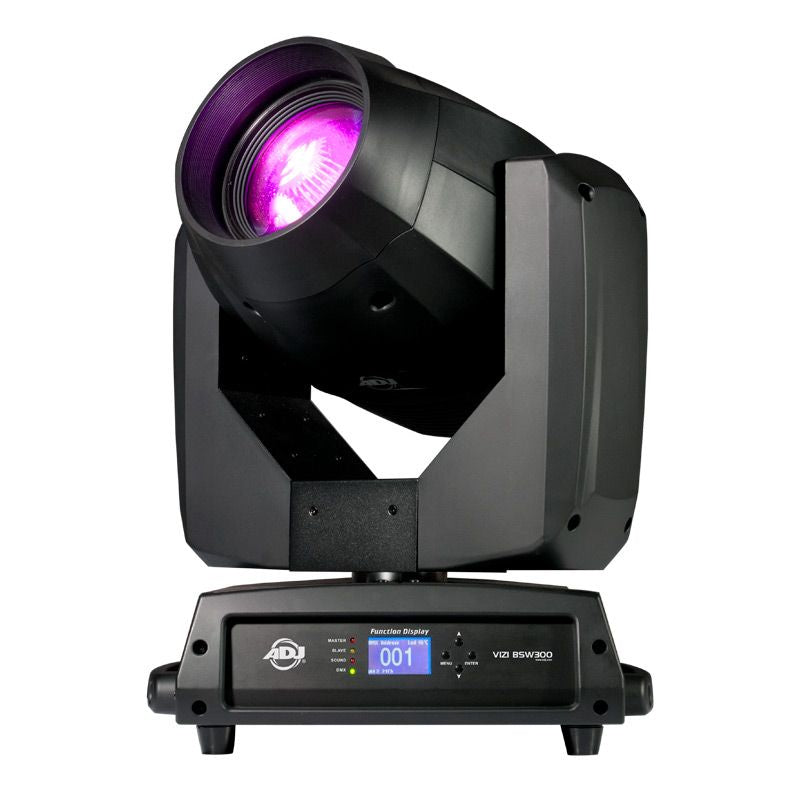

🇺🇸 ADJ VIZI BSW 300 Moving Yokes

Optical

• Light Source: 300W White LED

• Beam Angle: 8° to 17° ( Spot Mode)

• Beam Angle: 1° to 7°  (Beam Mode)

• Beam Angle: 18° to 26° (Wash Mode) Frost Filter

Specifications

• Pan / Tilt Range: 540° / 240°

• Color Wheel 1: 7 + Open

• Color Wheel 2: 7+ Open (CTO 3200k), CTC (5600k), UV

• GOBO Wheel 1: 6 Fixed + Open (3 Beam Reducers Beam Mode)

• GOBO Wheel 2: 7 Rotating/Replaceable + Open (3 Glass, 4 Metal)

• Dimming: Electronic

• Shutter:  Electronic

• Focus: Motorized

• Frost: 26° (Wash)

• Prism 1: Rotating 6-facet Circular

• Prism 2: Rotating 6-facet Linear Rotating
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 50; Back: 50; Left: 53; Right: 54; Top:49

• Dimensions (LxWxH): 14.75” x 12.75” x 21.5” / 376 x 325 x 545mm

• Weight:  49 lbs. / 22 kg.

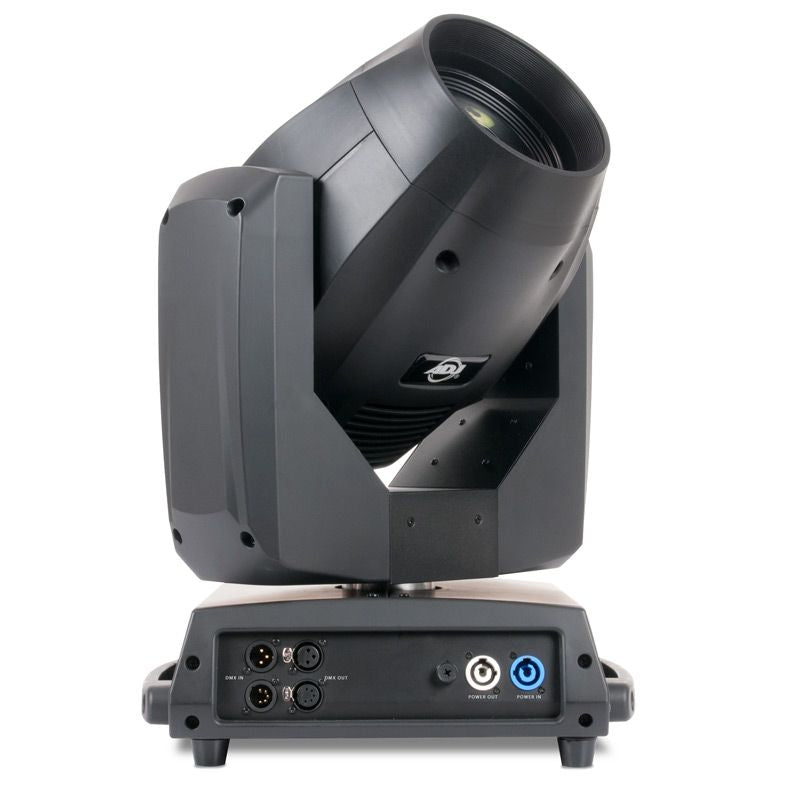

Connections

• Power Input: powerCON

• Power Pass through: powerCON @120V or 220V

Control

• Control Channels: 17 or 20

• DMX Modes: 2

• Control: 3-pin and 5-pin DMX
• With Wired Digital Communication Network

• Pan / Tilt Correction: Automatic

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw 120V 60Hz: 345W, 2.88 Amps

• Power draw 220V 50Hz: 345W, 1.57 Amps

Certifications

• ETL Approved
• CE

• IP 20: Dry area, No liquids

What's Included

• Power Cable- 6’ powerCON

   to Edison

• Qty: 2 Omega Clamps

• Safety Cable

• Manual

Optional Accessories

• DRC 16 Road Case (Fits 2)
