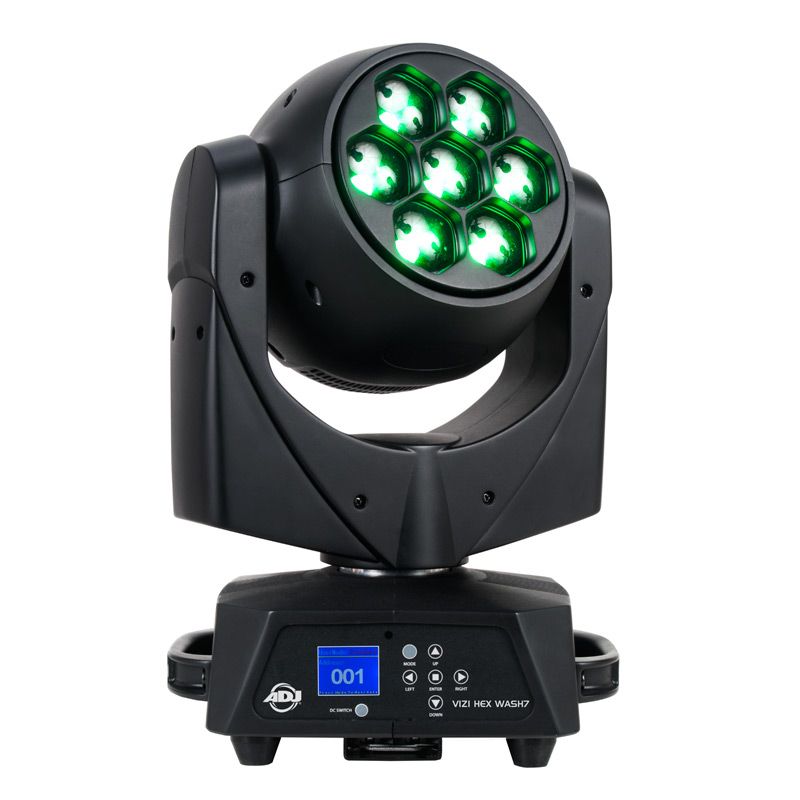

🇺🇸 ADJ VIZI-HEX-WASH-7 Moving Yokes

Optical



• Light Source: 7 (15) Watt HEX RGBWA+UV LED



• Life Expectancy: 50,000 hrs



• Beam Angle: 5~55-degree

• Refresh Rate: 1.2KHz







Specifications



• Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree



• Colors: 64 built-in color macros



• Dimming: Electronic



• Zoom: Motorized 5°-55°



• Strobe: Electronic



• Dimmer Curves: 5 dimmer curves



• Operational Modes: 2 modes Program/ DMX



• Flicker Free



• Wifly EXR DMX Range: 2,500 feet (line of site)



• Wifly On/Off



• Demensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm



• Weight: 19 lbs./8.5 kgs







Connections



• Power Input: Locking power IN connection



• Power Pass through: Locking power OUT connection



• Data: 3 & 5-pin In/Out DMX

• With Wired Digital Communication Network







Control



• DMX Modes: 2



• On Board: LCD menu 180 degree inverse



• 16 Selectable WiFLY Address Channels



Certifications



• Certifications: ETL Approved





Electrical



• Input Voltage: 100~230 V, 50 Hz./60Hz



• Power draw @120V: 137W



• Power draw @ 220V:







Whats Included



• Omega bracket



• Locking power to Edison cable



• User Manual
