🇺🇸 Elation Professional Cupix 16IP (demo unit)

Save $460.12

$2,378.88 $2,839

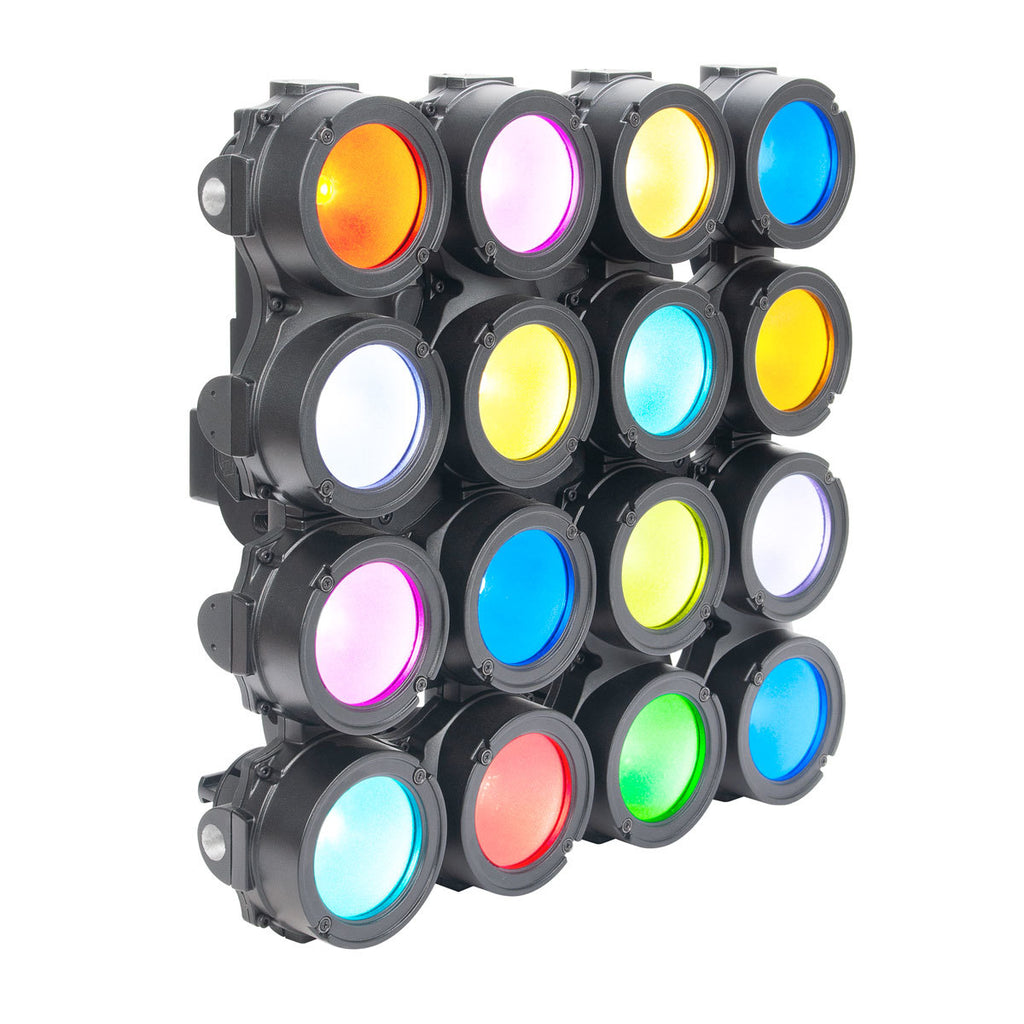

CUEPIX 16IP™ is a versatile IP65 outdoor rated effect panel luminaire that features a 4x4 array of 16 30W 4-in-1 RGBA COB LEDs, 62° beam and 87° field angles, full pixel control and 5 pixel flip modes, RGB + Dynamic Amber modes, 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 Ethernet, and IP65 Locking Power Cable in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal auto switching power supply (100-240v). Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes, and integrated alignment pins and interlocks for multiple panel matrix designs. Optional ¼ turn omega brackets available.


Versatile IP65 Outdoor Rated Effect Panel Luminaire
4x4 Array of 16 30W 4-in-1 RGBA COB LEDs
62° Beam and 87° Field Angles

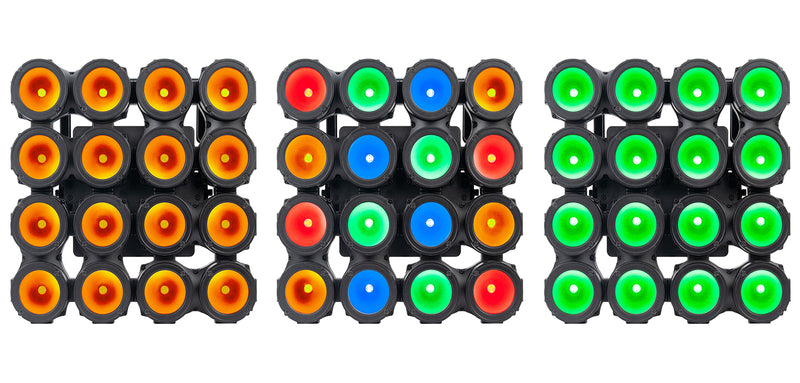

Full Pixel Control with Pixel Flip Modes
RGB+ Dynamic Amber Channel Mode
16-bit Dimming and Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Applications
DMX, RDM, Kling-NET, and Art-NET Protocol Support
90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

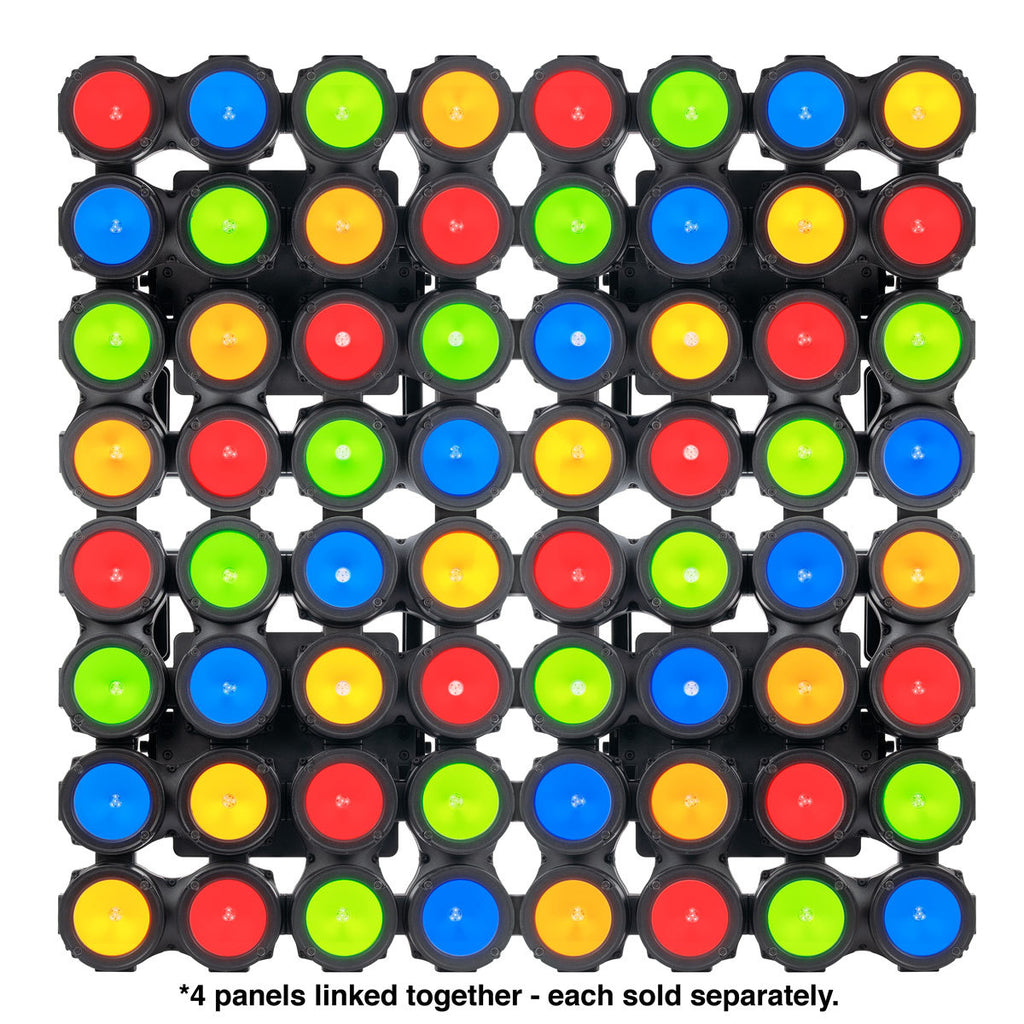

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available


16 30W 4-IN-1 RGBA COB LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

6,400+ Total Lumen Output
62° Beam / 87° Field Angles
6,809 LUX 633 FC @3.3' (1m) (Full ON)

Full Pixel Control with Pixel Flip Modes
RGB + Dynamic Amber Channel Modes
Smooth Color Mixing and 64 Internal Color Macros
High Speed Electronic Shutter and Strobe
16Bit Dimming and Variable Dimming Curve Modes


14 DMX Channel Modes (128) total channels)
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button OLED Menu Control Display
DMX, RDM, Kling-Net, and Art-Net Protocol Support
IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network

Length: 17.3” (440mm)
Width: 8.1” (206mm)
Vertical Height: 17.3” (440mm)
Weight: 33.0 lbs. (15.0 kg)

AC 100-240V - 50/60Hz
520W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

CE | cETLus | IP65

Current Update: V1.06
Click HERE for software updates

Specifications and documentation subject to change without
