Description

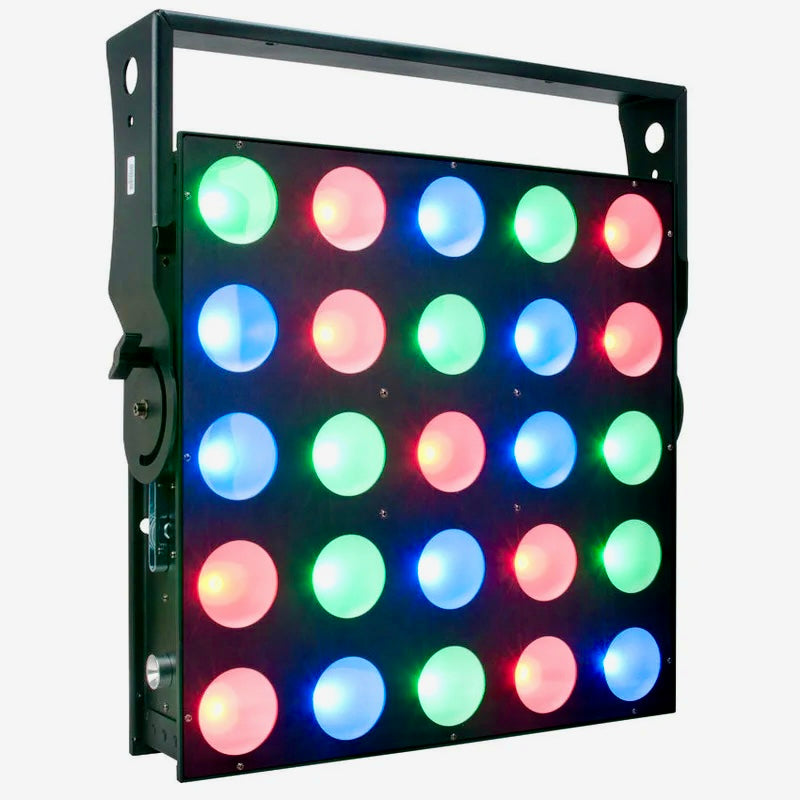

CUEPIX PANEL

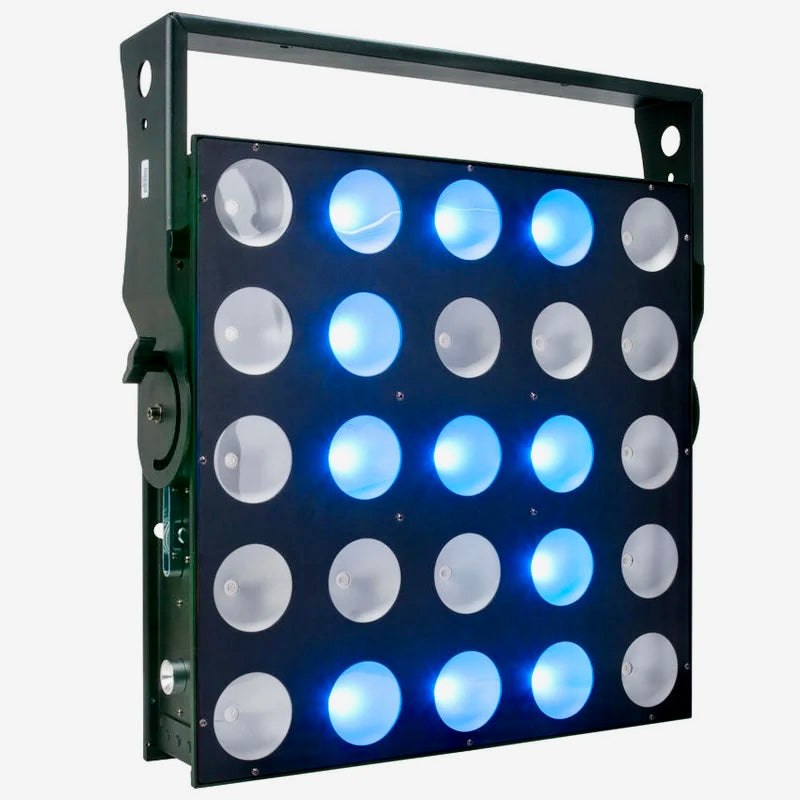

The CUEPIX Panel™ features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX and Locking Power cable in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).
Versatile COB LED Effect Panel Luminaire
5x5 Array of 25 25W 3-in-1 RGB COB LEDs
60° Beam Angle
Full Pixel Control with Pixel Flip Modes
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support
90° Adjustable Yoke Bracket w/3-Position Holes
Integrated Fixture-to-Fixture Interlocking Coffin Locks
Optional Rigging Bar and 15° Lens Kit Available
Versatile COB LED Effect Panel Luminaire
5x5 Array of 25 25W 3-in-1 RGB COB LEDs
60° Beam Angle
Full Pixel Control with Pixel Flip Modes
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support
90° Adjustable Yoke Bracket w/3-Position Holes
Integrated Fixture-to-Fixture Interlocking Coffin Locks
Optional Rigging Bar and 15° Lens Kit Available
SPECIFICATIONS
SOURCE
(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
15,490 Max LUX (1439 fc) @2M (Full On)
3310 Max LUX (307 fc) @2M (Red LEDs)
3720 Max LUX (346 fc) @2M (Green LEDs)
5870 Max LUX (545 fc) @2M (Blue LEDs)
EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros
CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)

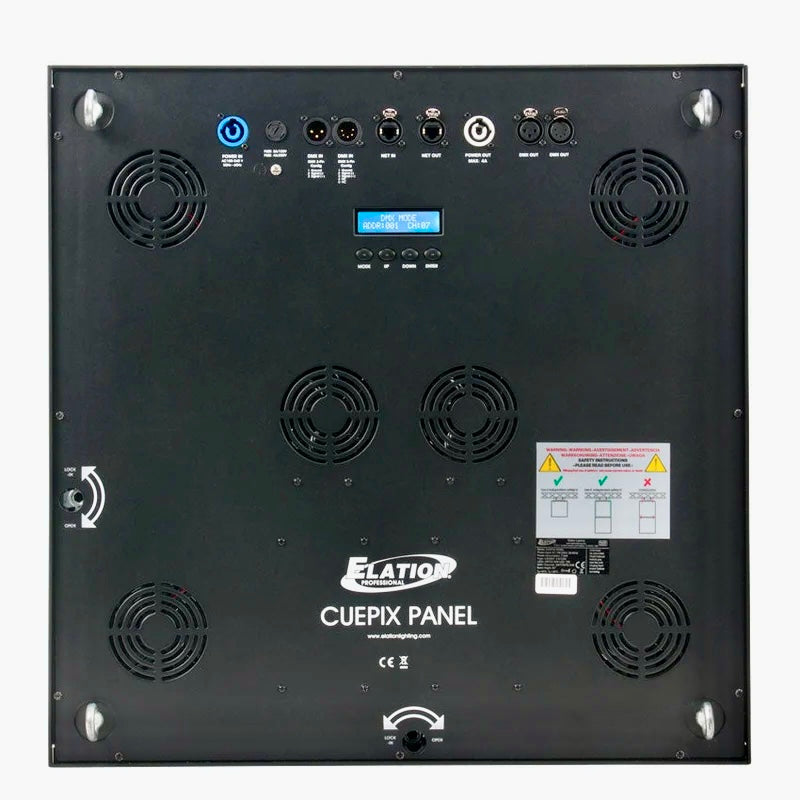

4 Button Control Panel and LCD Menu Display
(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
15,490 Max LUX (1439 fc) @2M (Full On)
3310 Max LUX (307 fc) @2M (Red LEDs)
3720 Max LUX (346 fc) @2M (Green LEDs)
5870 Max LUX (545 fc) @2M (Blue LEDs)
EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros
CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)
4 Button Control Panel and LCD Menu Display
