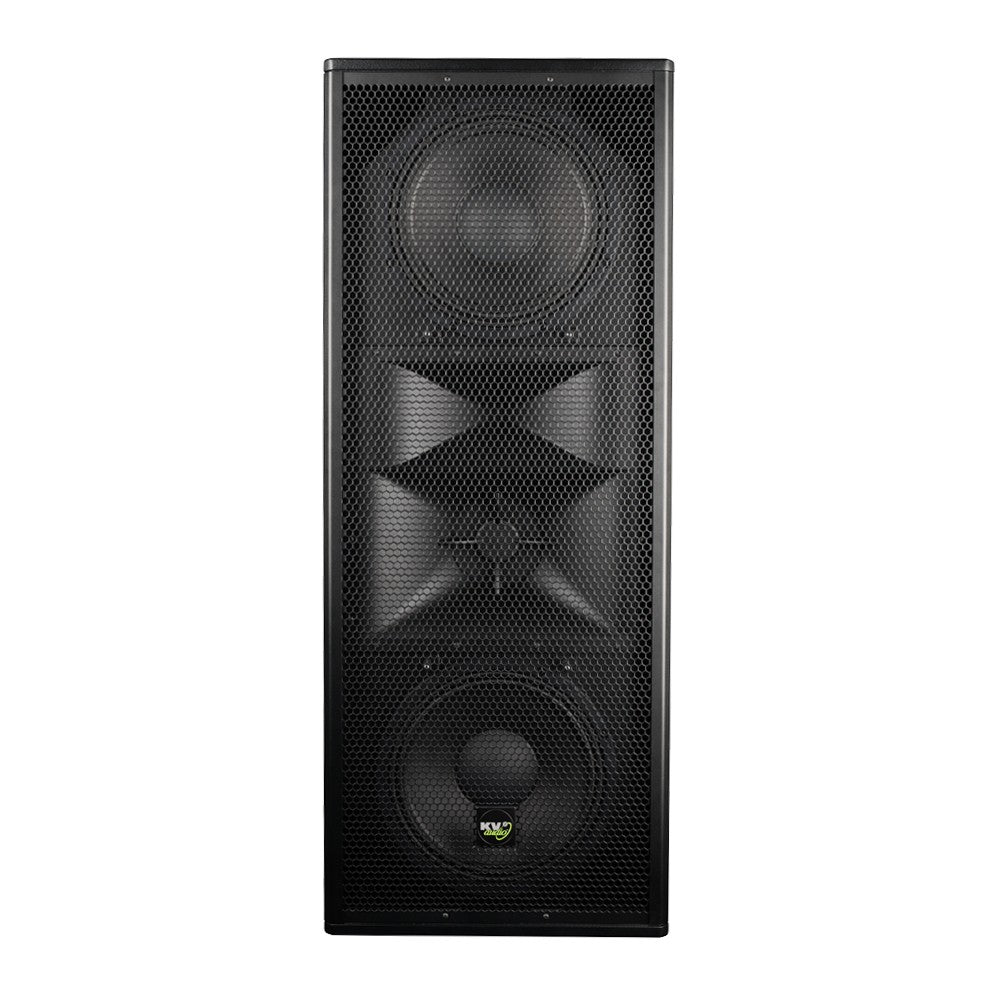

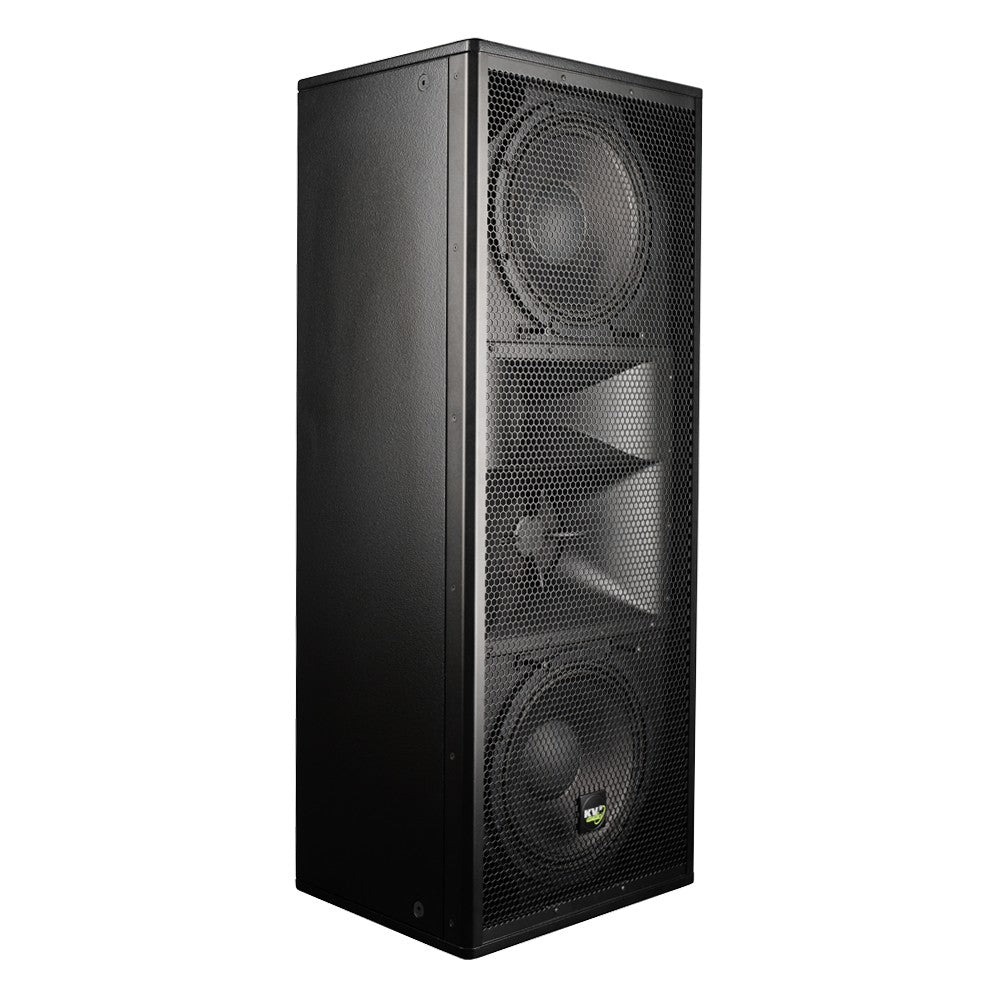

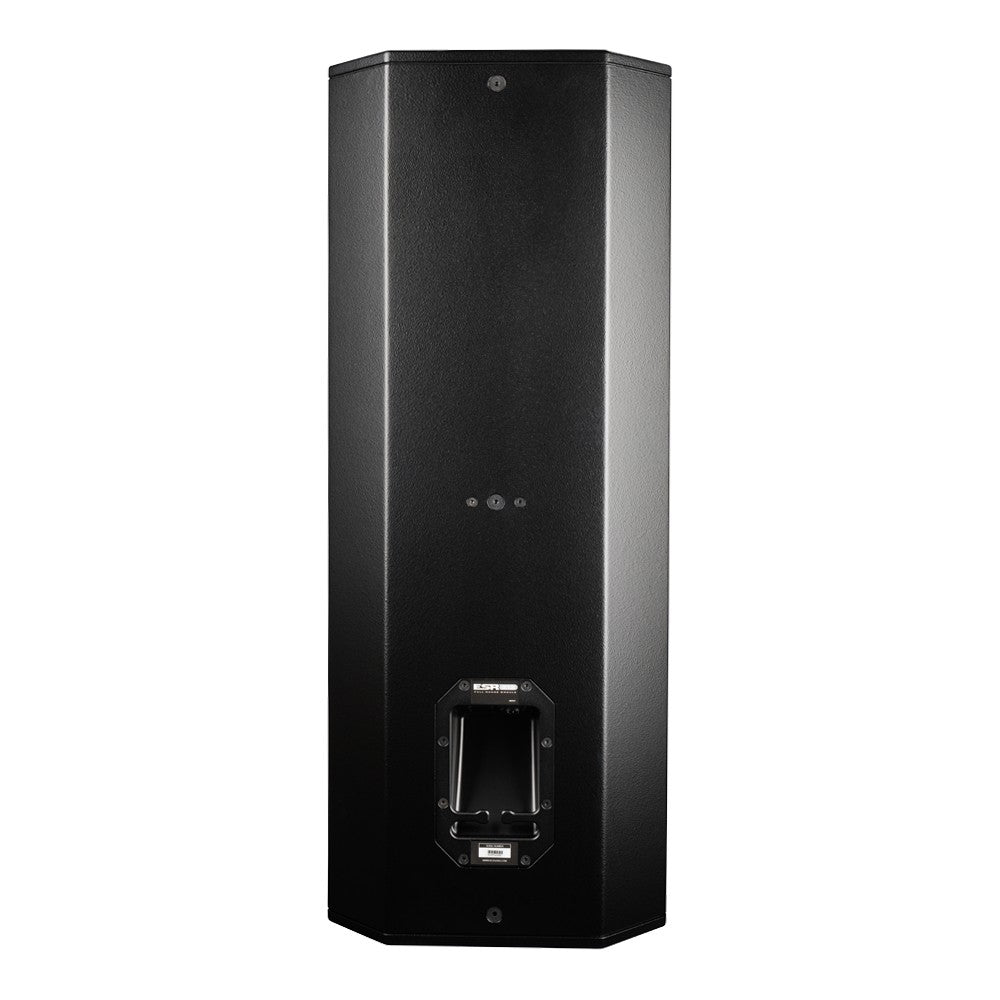

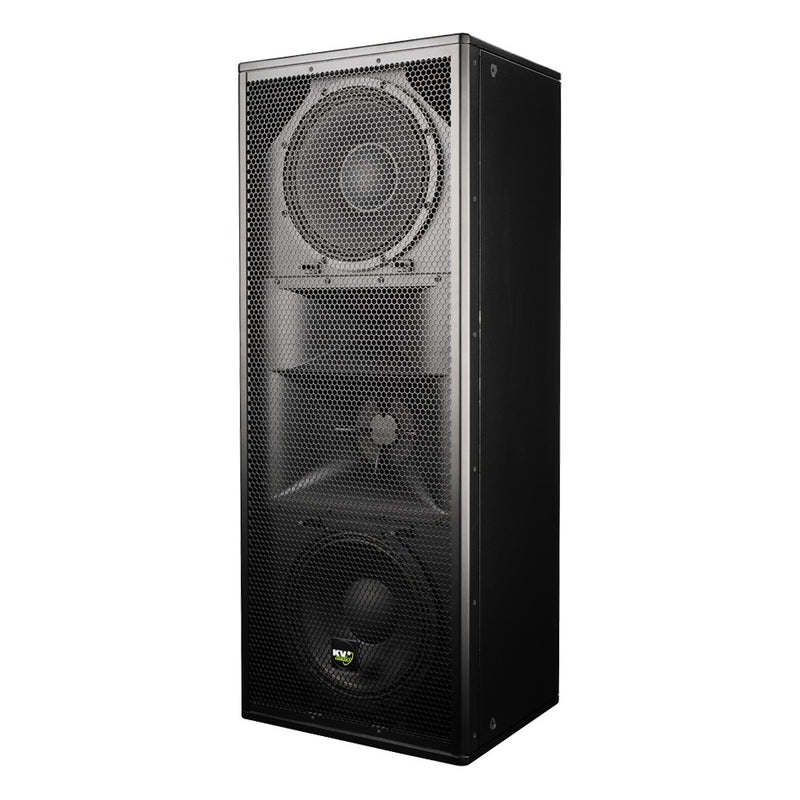

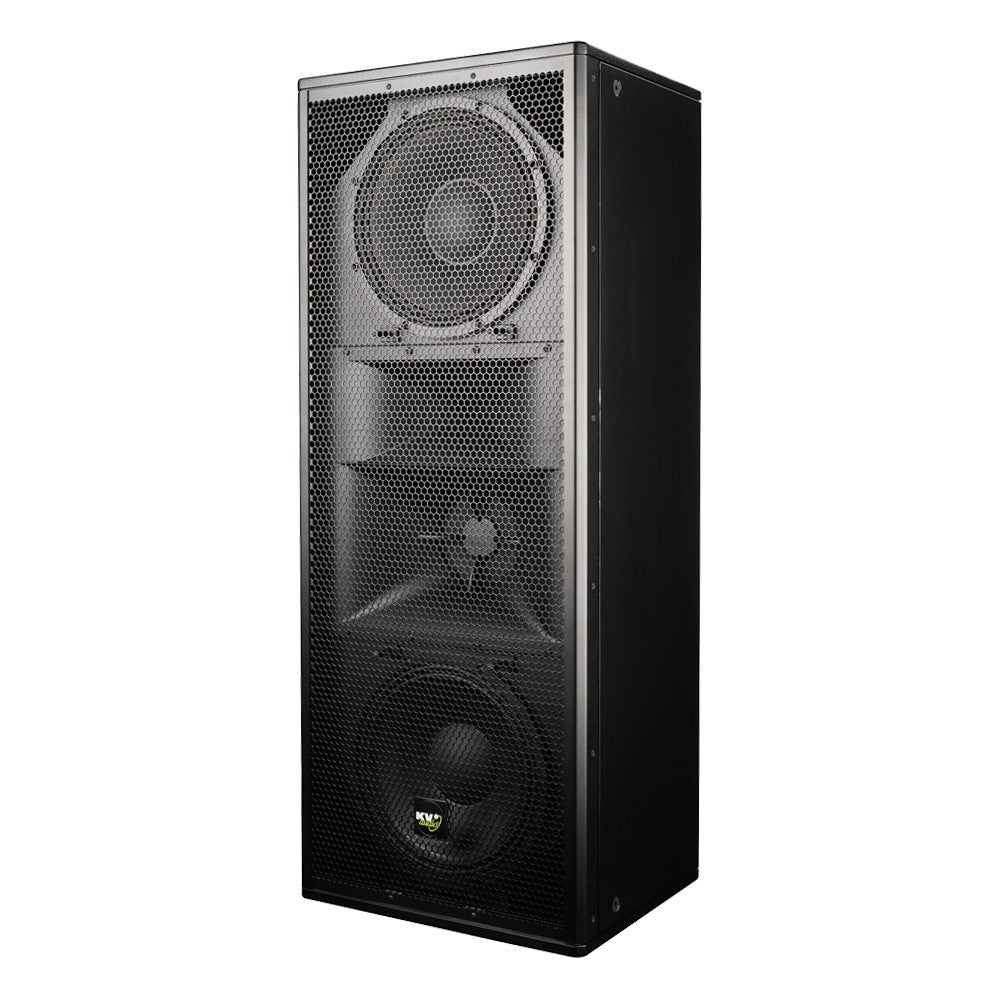

🇬🇧 Kv2 Audio ESR 212 ☎️Call for Quote


Price:
$123,456

Description

System Acoustic Performance

Max SPL Long-term 128dB
Max SPL Peak 131dB
-3dB Response 38Hz to 22kHz
-10dB Response 33Hz to 28kHz
Crossover Point 500Hz, 2.5kHz

High Frequency Section

Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 90° x 40°
Rotatable Horn YES
Sensitivity 109dB
High Frequency Amplifier Requirement 100W from ESR2800 Amplifier
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material NVPD Treated Titanium
Magnet Type Neodymium

Mid Range Section

Acoustic Design Horn Loaded
Mid Horn Coverage Horizontal / Vertical 90° x 40°
Rotatable Horn YES
Sensitivity 106dB
Midrange Amplifier Requirement 200W from ESR2800 Amplifier
Woofer Size / Voice Coil Diameter / Design 6" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Low Frequency Section

Acoustic Design Front Loaded, Bass Reflex
Sensitivity 98dB
Low Frequency Amplifier Requirement 1000W from ESR2800 Amplifier
Number of Drivers 2
Woofer Size / Voice Coil Diameter / Design 12" / 3" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Speaker Input

Speaker Input Amphenol AP-6 Male

Speaker Output

Speaker Output -

Cabinet

Cabinet Material Baltic birch
Handles 2
Color Black / Optional luxury High gloss

Physical Dimensions

Height 1135 mm (44.69")
Width 447 mm (17.6")
Depth 444 mm (17.48")
Weight 45 kg (99.2lbs)
