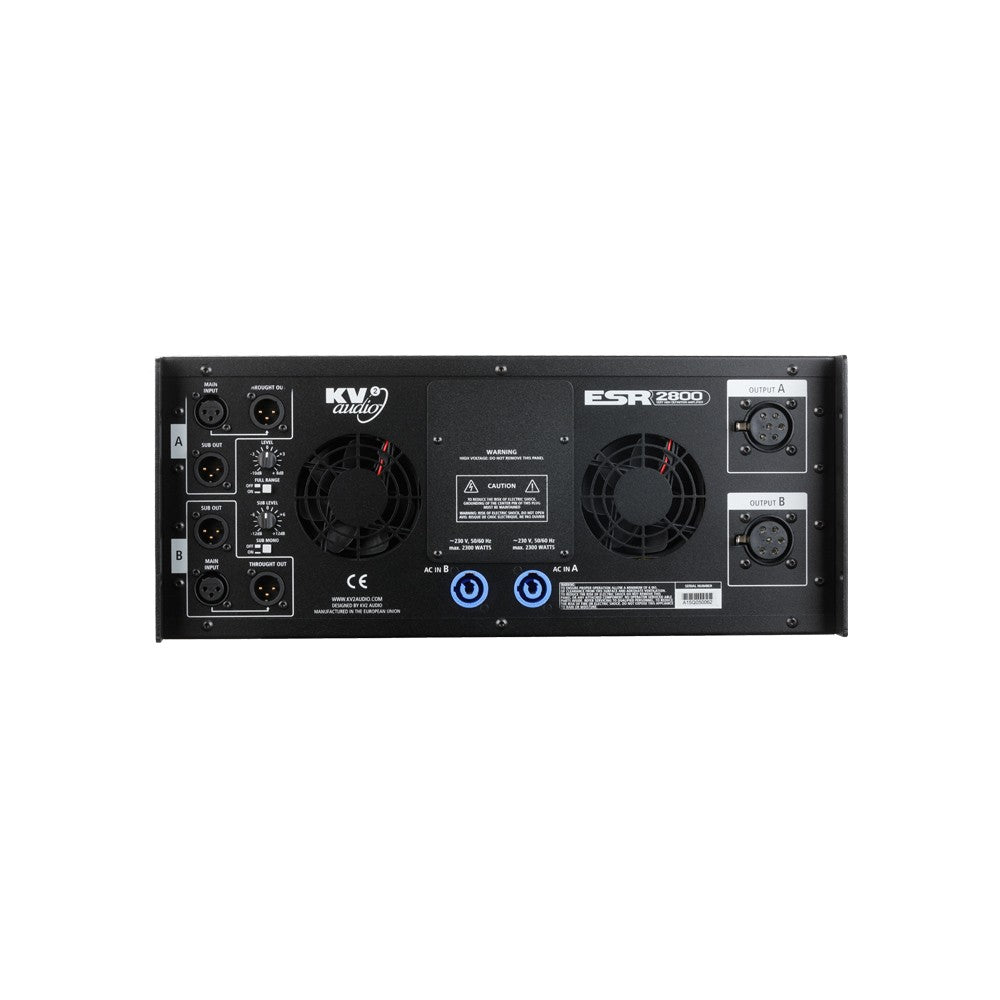

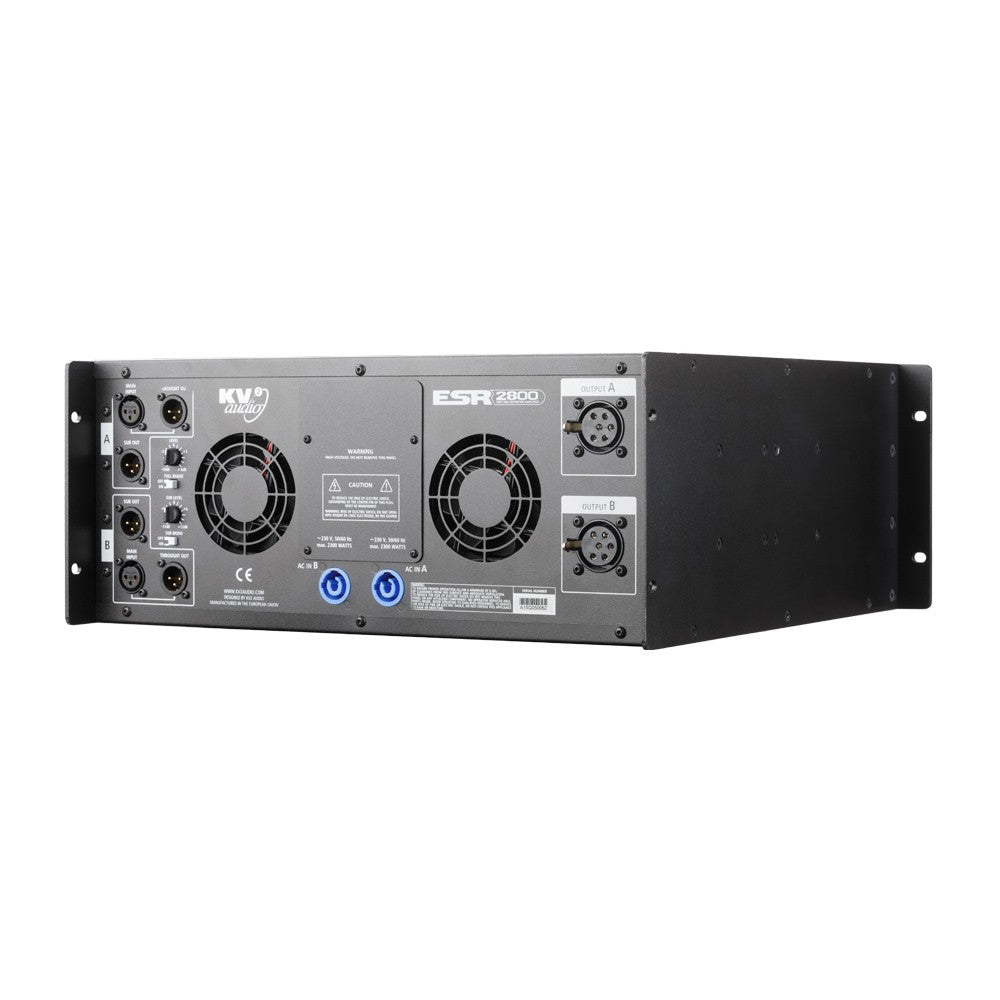

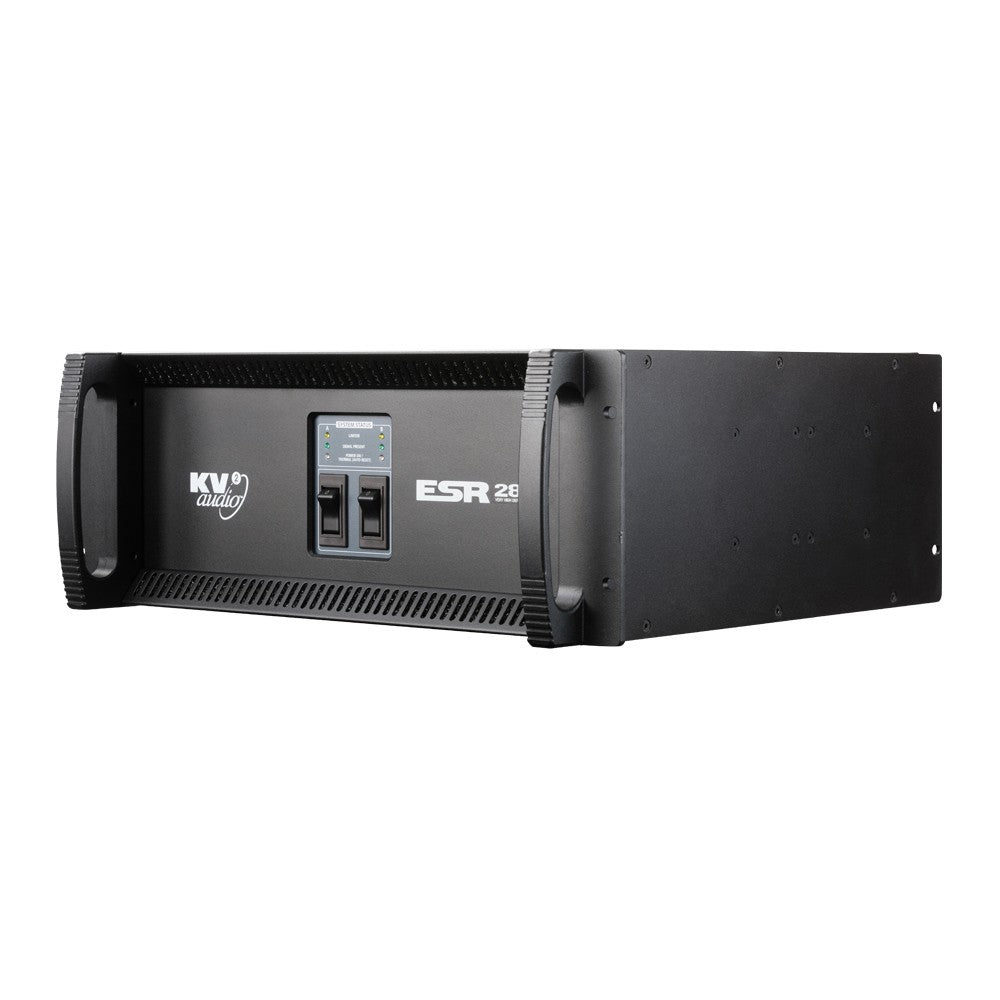

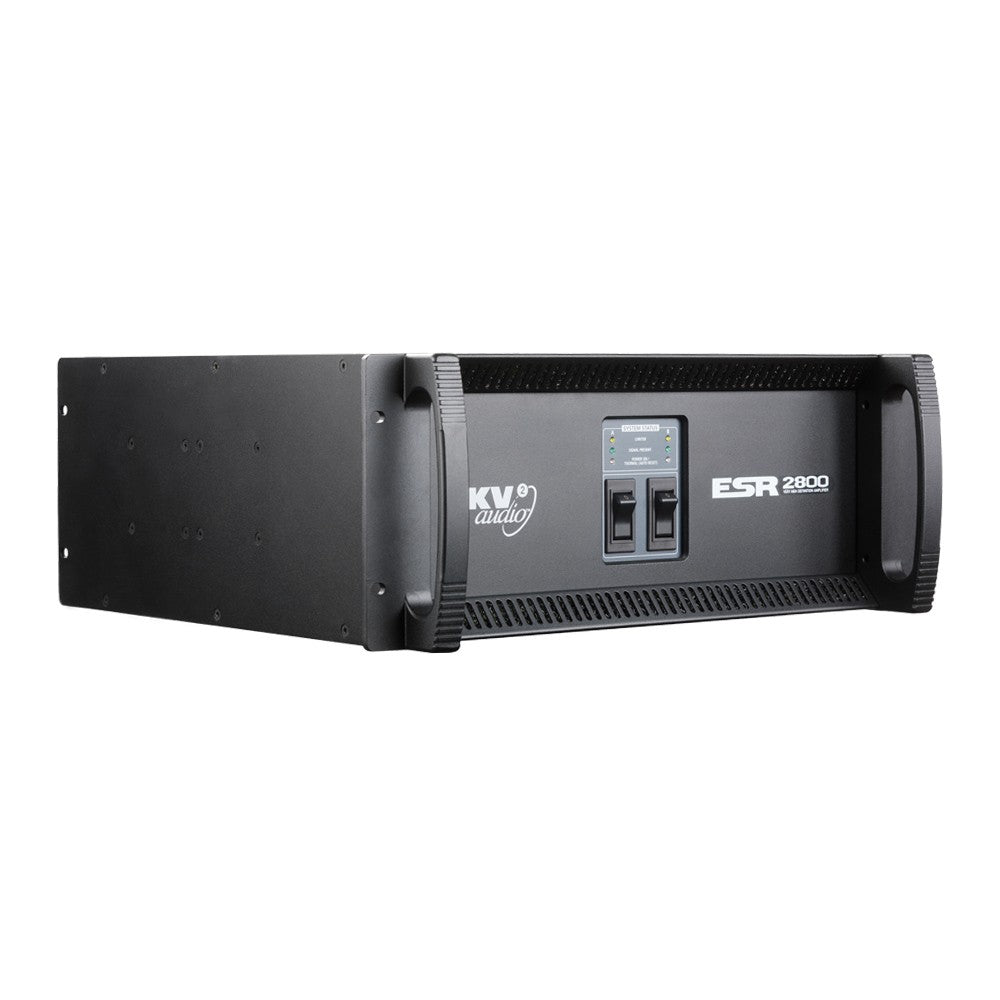

ESR2800 Amplifier - rack mounted
ESR2800 amplifier is designed as part of KV2 Audio's ESR, full range Series and optimised for use with the ESR212 loudspeaker system featuring tri-amplified stereo electronic control pack, Super Analog components throughout. Extremely High Definition offers a true musical solution to the enjoyment of live music on a grand scale.
Output Channels
| Number of Channels |
2 (stereo) |
| Total Output Power |
2x 1300W |
High Frequency Amplifier Specification
| Type |
Class AB - Push Pull - Low IM Design, Transformer balanced output |
| Rated Continuous Power |
100W |
| Distortion |
<0.02% |
| Operating Bandwidth |
2.5kHz to 40kHz |
Mid Frequency Amplifier Specification
| Type |
Class AB - Push Pull - Low IM Design, Transformer balanced output |
| Rated Continuous Power |
200W |
| Distortion |
<0.02% |
| Operating Bandwidth |
500Hz to 2,5kHz |
Low Frequency Amplifier Specification
| Type |
High efficiency, Current-enhancing switch mode |
| Rated Continuous Power |
1000W |
| Distortion |
<0.02% |
| Operating Bandwidth |
20Hz to 500Hz |
Signal Input
| Input Sensitivity |
1.55V RMS |
| Input Impedance |
20kΩ (balanced) |
Speaker Output
Power Requirements
| Power Connector |
2x Neutrik PowerCon® |
| Operating Voltage |
115V / 230V / 250V |
| Operating Voltage Range |
100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz |
| Recommended Amperage |
2x10A 115V | 2x5A 230V | 2x5A 250V |
Physical Dimensions
| Height |
177 mm (6.97"), 4RU |
| Width |
481.4 mm (18.95") |
| Depth |
455.3 mm (17.93") |
| Weight |
36 kg (79.37lbs) |
