🇬🇧 Kv2 Audio ESR 3000 Mk ll ☎️Call for Quote


Price:
$123,456

Description

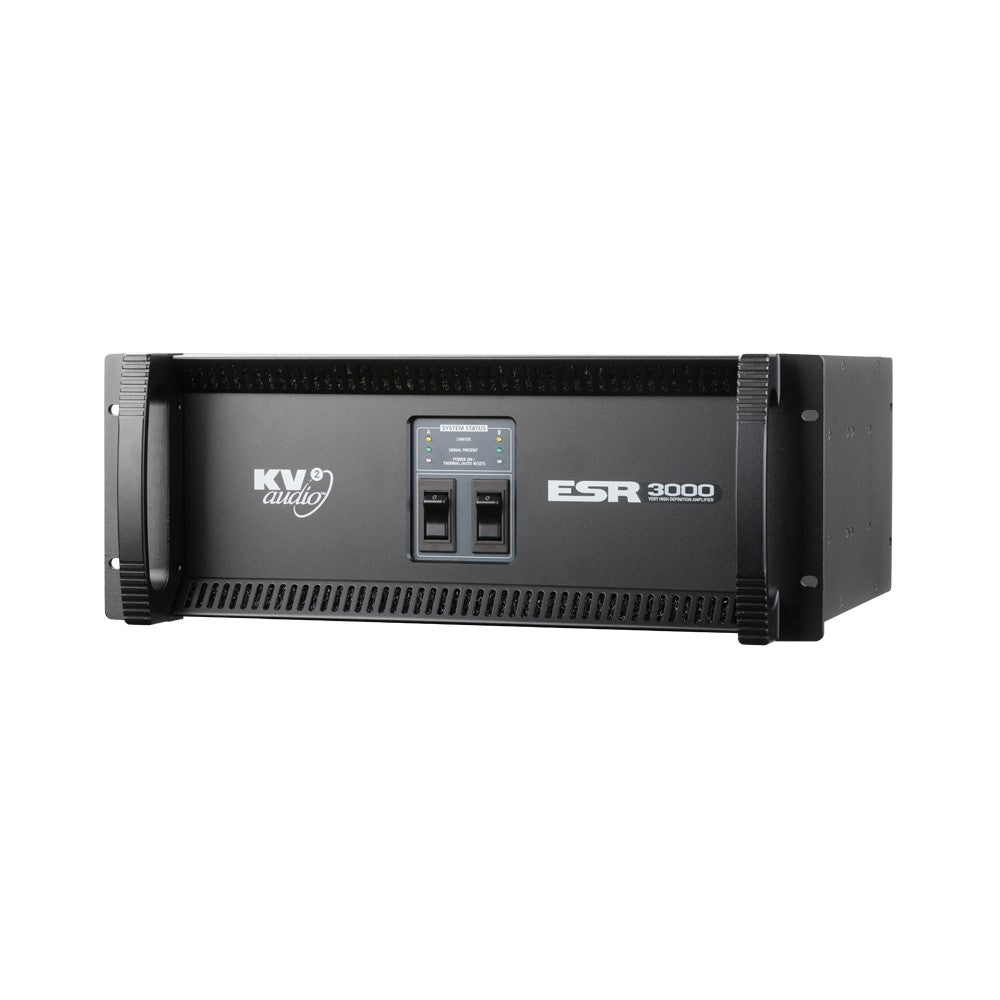

ESR3000MkII Amplifier - Rack mounted

The ESR3000MkII is three-way, active control and amplification system specially designed for the KV2 Audio ESR full range series loudspeaker systems. It houses all signal processing and amplification, as well as providing control and crossover function an external subwoofer cabinet if needed utilizing an external amplifier. The ESR3000MkII powers the ESR215MkII. Each unit incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifier for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design for mids and two a 1000-watt, high-efficiency, current- enhancing switch mode technology amplifier for bass. The ESR3000MkII stereo configuration powers two ESR cabinets accordingly.



Output Channels

Number of Channels 2 (stereo)
Total Output Power 2x 1300W

High Frequency Amplifier Specification

Type Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power 100W
Distortion <0.02%
Operating Bandwidth 2.5kHz to 40kHz

Mid Frequency Amplifier Specification

Type Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power 200W
Distortion <0.02%
Operating Bandwidth 400Hz to 2,5kHz

Low Frequency Amplifier Specification

Type High efficiency, Current-enhancing switch mode
Rated Continuous Power 1000W
Distortion <0.02%
Operating Bandwidth 20Hz to 400Hz

Signal Input

Input Sensitivity 1.55V RMS
Input Impedance 20kΩ (balanced)

Speaker Output

Speaker Output 2x AP6 female

Power Requirements

Power Connector 2x Neutrik PowerCon®
Operating Voltage 115V / 230V / 250V
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 2x10A 115V | 2x5A 230V | 2x5A 250V

Physical Dimensions

Height 177 mm (6.97"), 4RU
Width 481.4 mm (18.95")
Depth 455.3 mm (17.93")
Weight 39 kg (86lbs)
