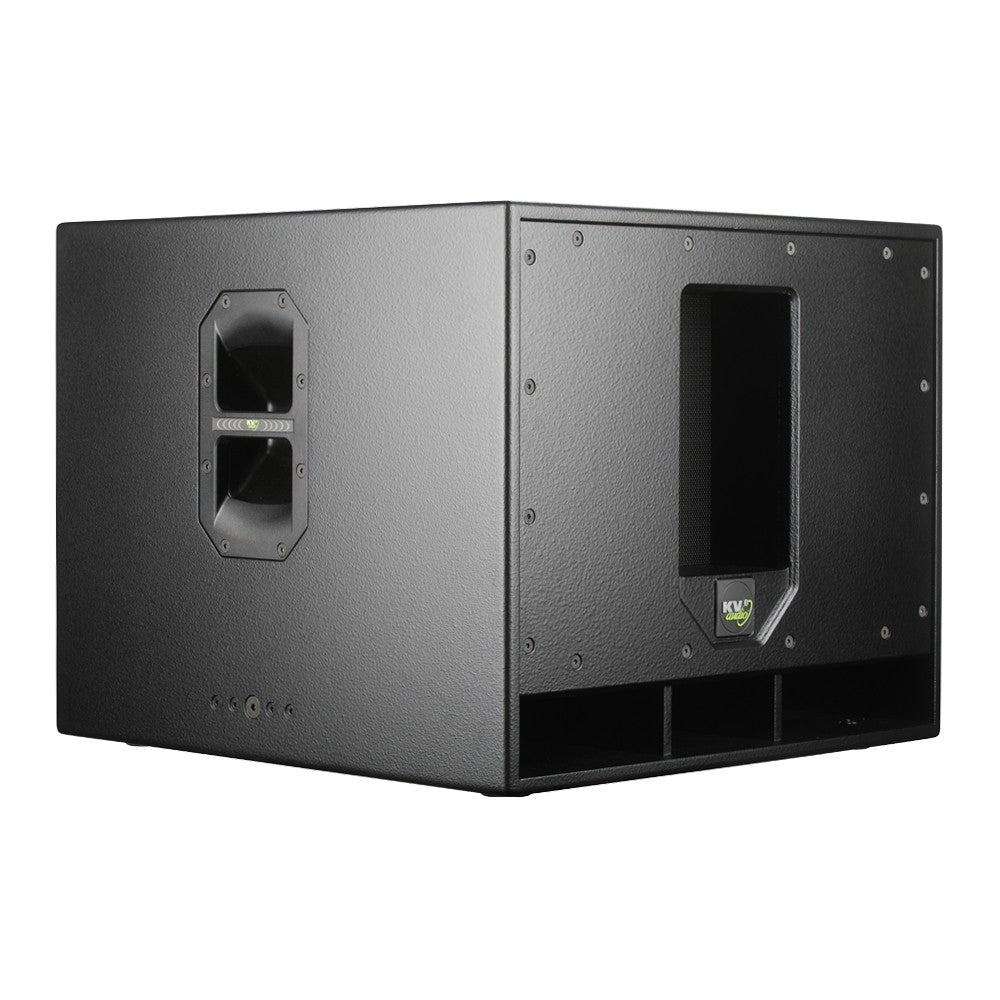

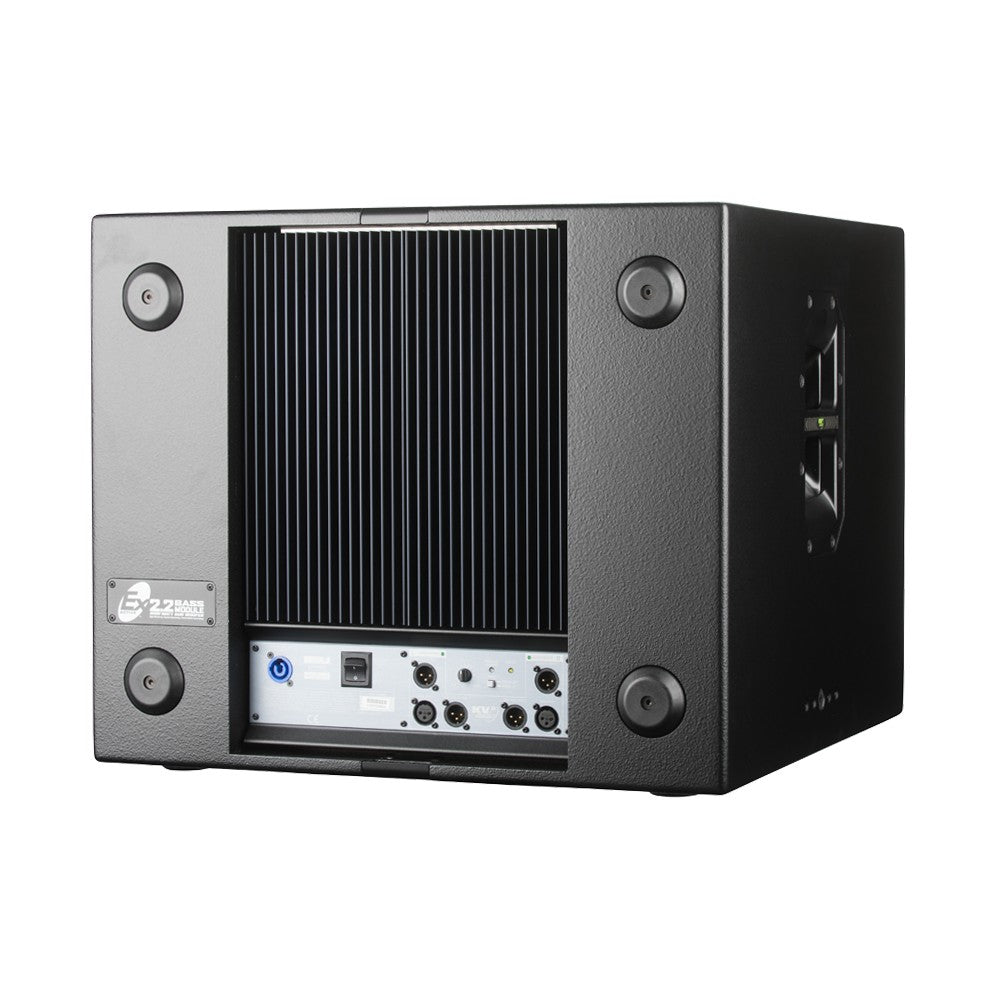

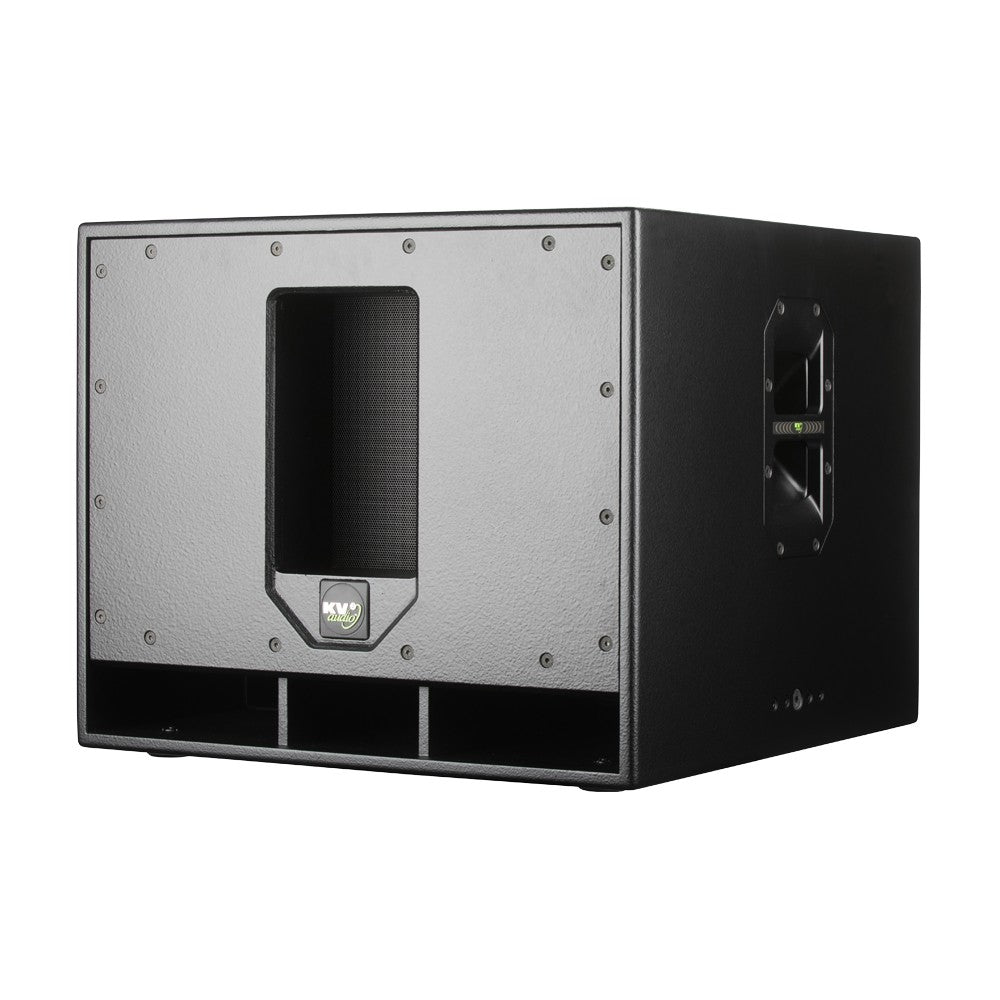

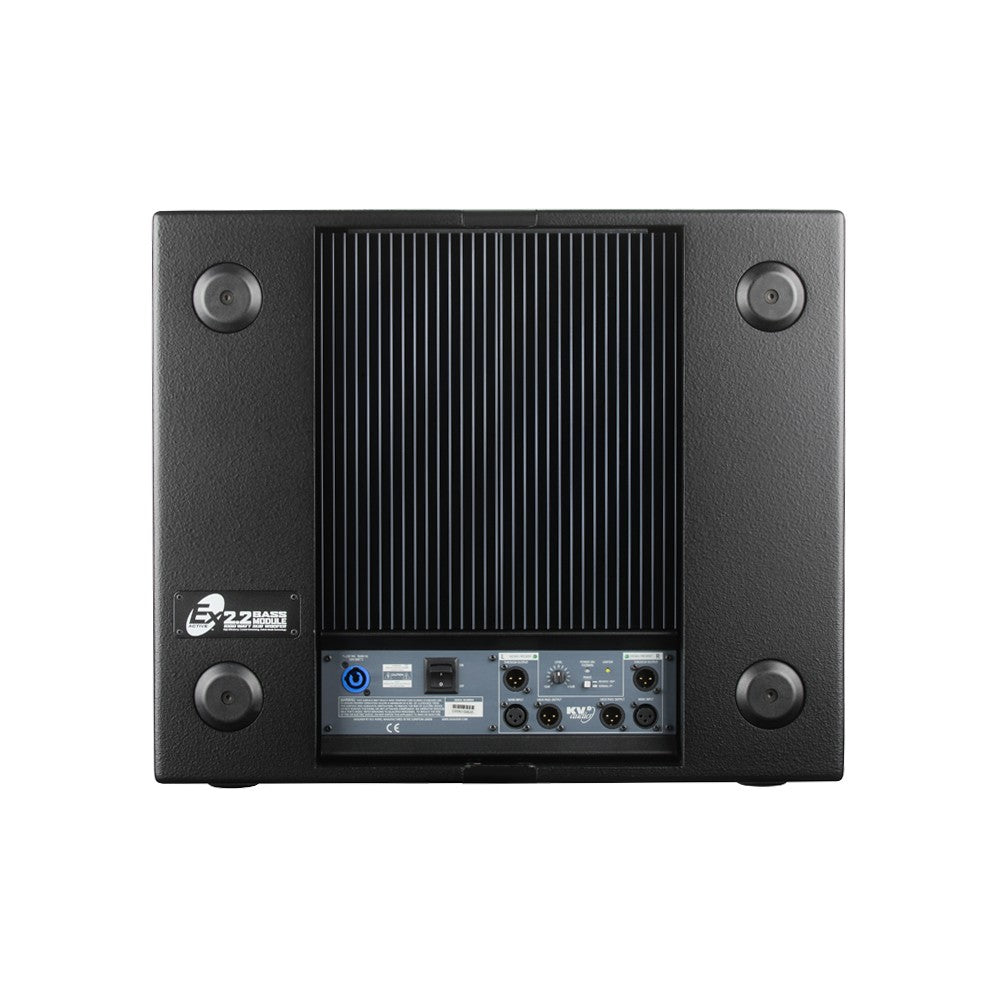

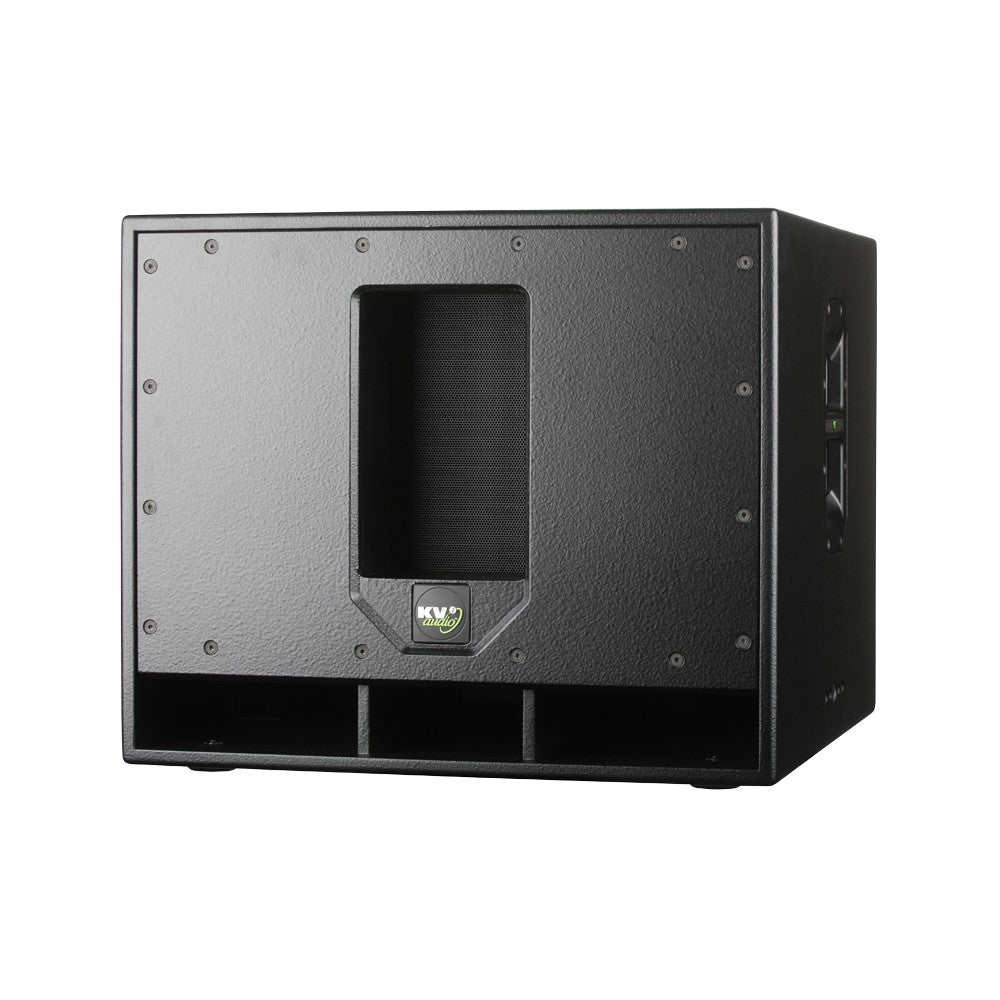

🇬🇧 Kv2 Audio EX2.2 ☎️Call for Quote


System Acoustic Performance

Max SPL Long-term 130dB
Max SPL Peak 133dB
-3dB Response 45Hz to 125Hz
-10dB Response 40Hz to 125Hz
Crossover Point 125Hz

Low Frequency Section

Acoustic Design Twin Asymmetrical loading
Number of Drivers 2
Woofer Size / Voice Coil Diameter / Design 12" / 3" / Inside outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Low Frequency Amplifier Specification

Type High efficiency, Current-enhancing switch mode
Rated Continuous Power 1000W
Distortion <0.05%
Operating Bandwidth 40Hz to 125Hz

Signal Input

Input Channels 2
Input Sensitivity 1.0V RMS
Input Impedance 20kΩ (balanced)

Signal Output

Signal Output Channels Mid/High, Through


Input Level Control -6 - +6dB
Phase 0° / 180°
RMS Limiter YES

Power Requirements

Power Connector Neutrik PowerCon®
Operating Voltage 115V / 230V / 250V
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 10A 115V | 5A 230V | 5A 250V
Cooling Passive


Cabinet Material Baltic birch
Handles 2
Pole Mount M20
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 491 mm (19.33")
Width 594 mm (23.38")
Depth 616 mm (24.25")
Weight 49 kg (107.8lbs)
