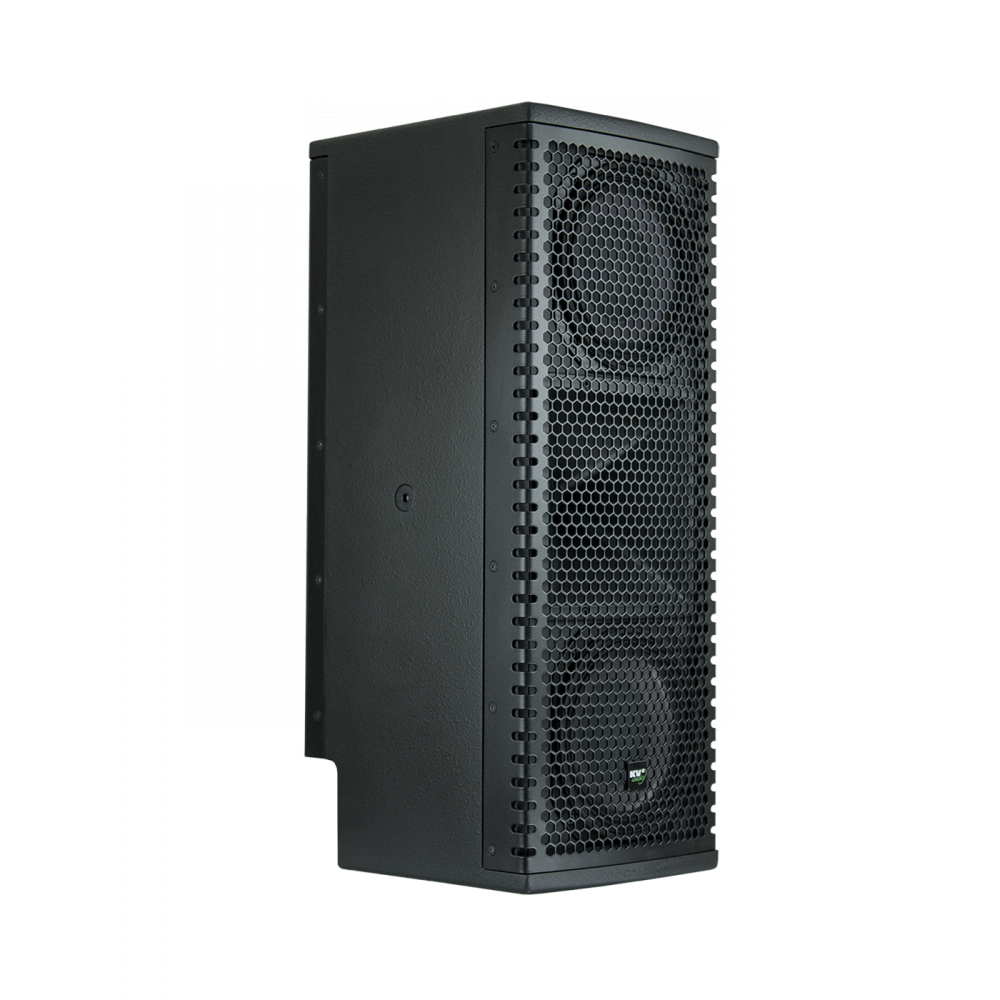

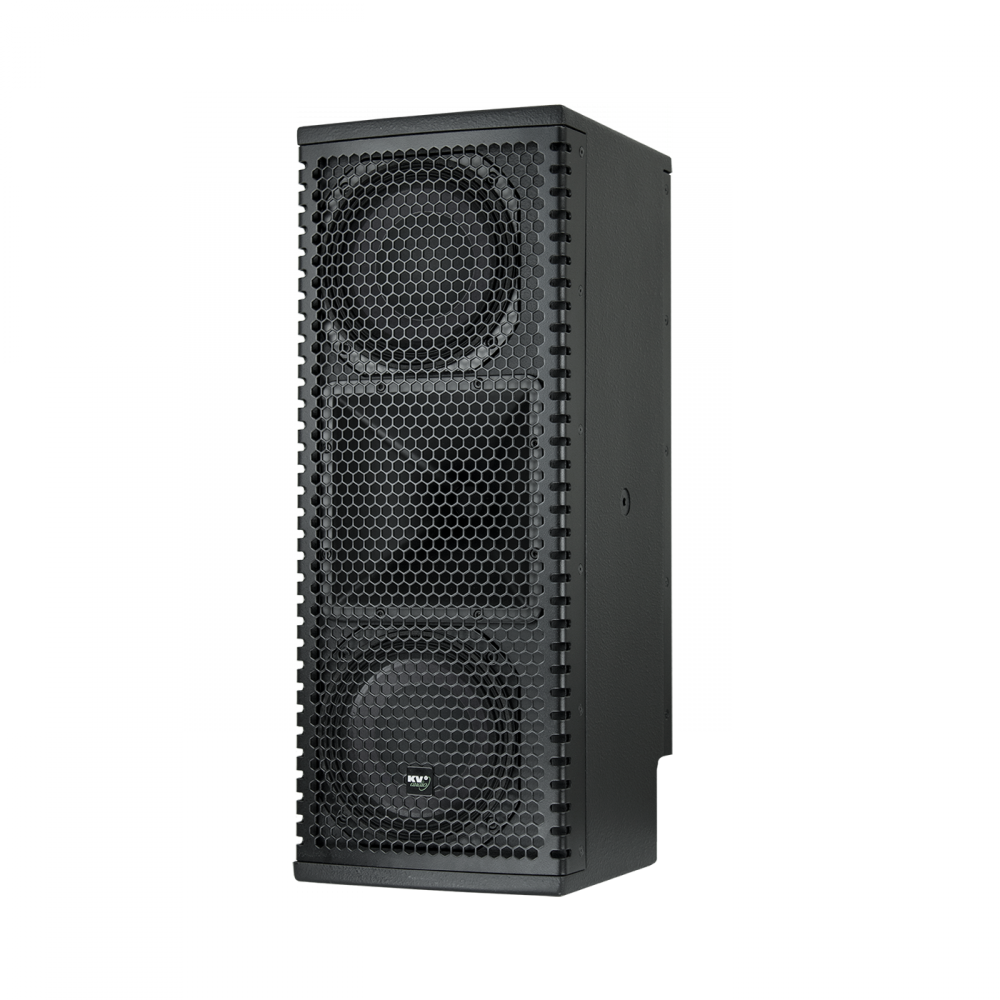

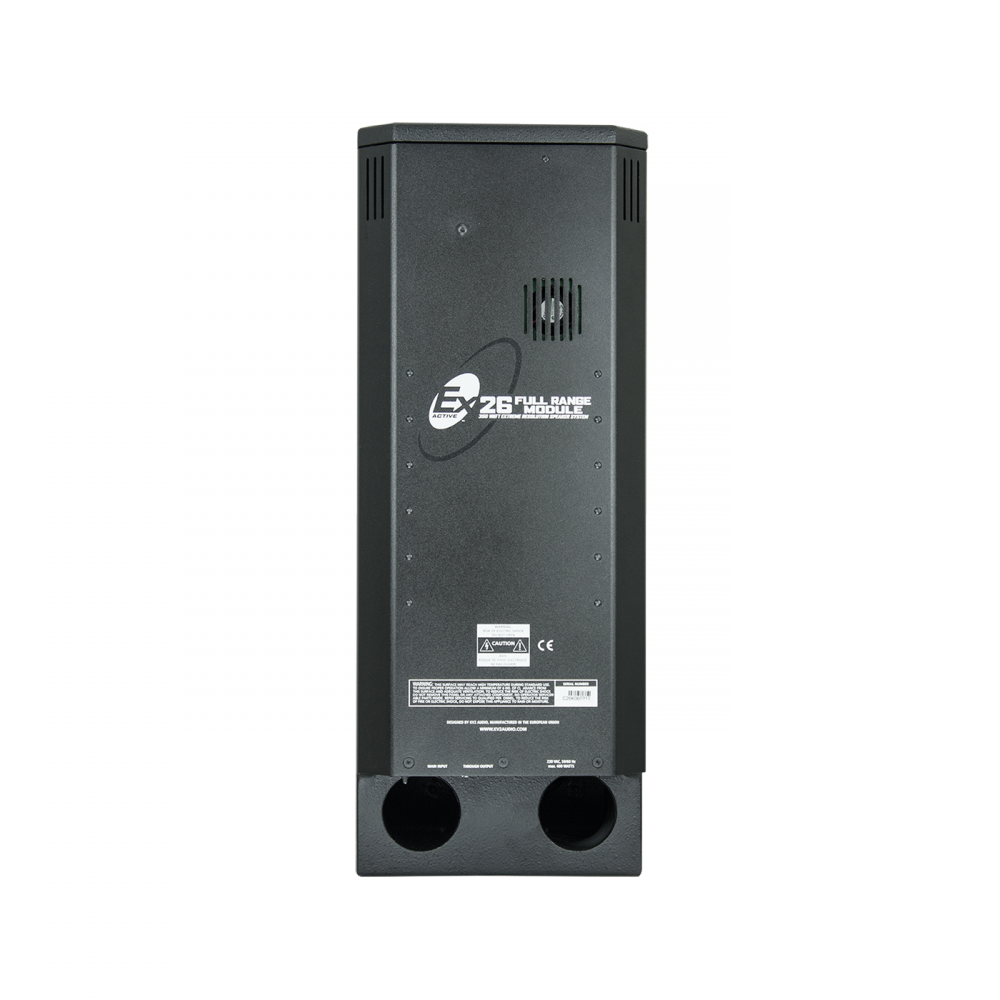

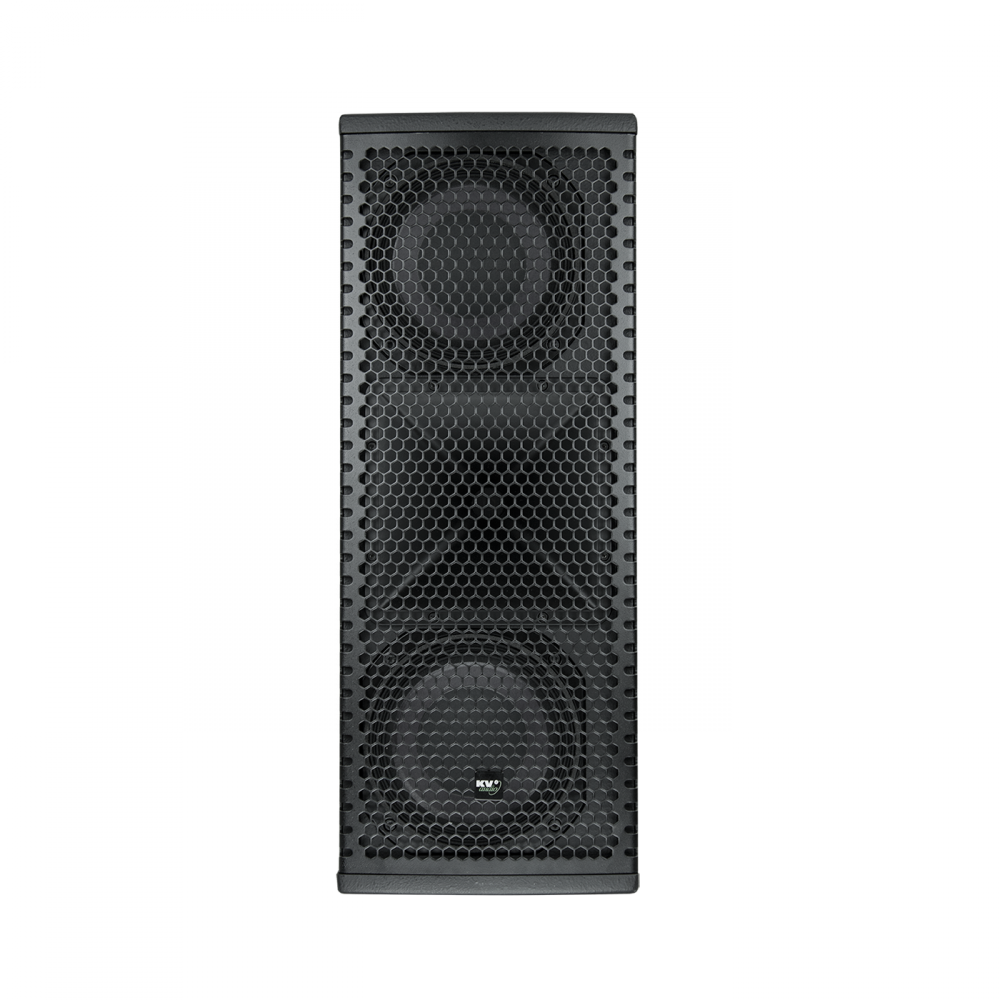

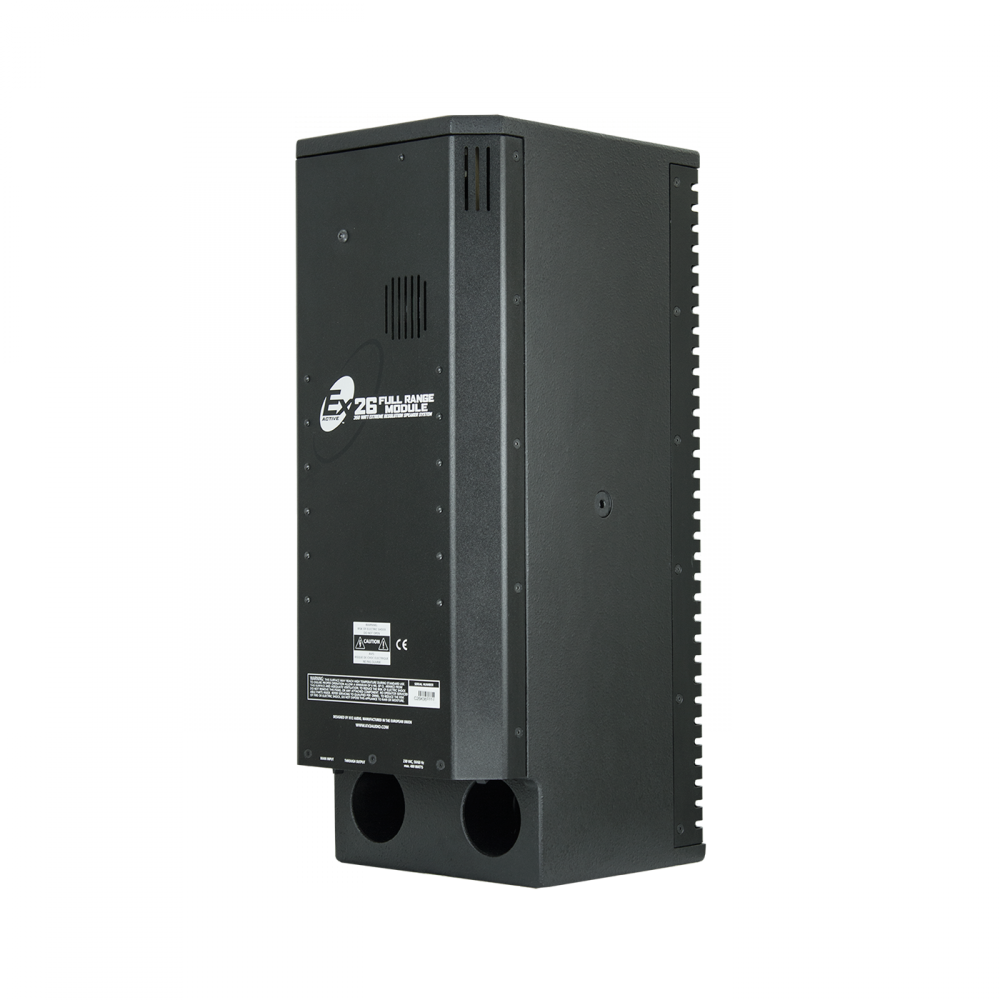

EX26 - High Intelligibility Active Speaker System
The EX26 is a unique Loudspeaker unit that provides superb vocal intelligibility and high quality musical reproduction. Its 100 x 100 degree horn provides for wide, even coverage making it ideal for audio visual presentations, churches, meeting rooms and various other applications where high quality speech reproduction is required. The EX26 makes an ideal under balcony fill speaker when used in a horizontal orientation.
System Acoustic Performance
| Max SPL Long-term |
124dB |
| Max SPL Peak |
127dB |
| -3dB Response |
80Hz to 20kHz |
| -10dB Response |
65Hz to 28kHz |
| Crossover Point |
2.5kHz |
High Frequency Section
| Acoustic Design |
Horn Loaded |
| High Horn Coverage Horizontal / Vertical |
100° x 100° |
| Throat Exit Diameter / Diaphragm Size |
1" / 1.75" |
| Diaphragm Material |
Nitride Titanium |
| Magnet Type |
Neodymium |
High Frequency Amplifier Specification
| Type |
Class AB Push-Pull |
| Rated Continuous Power |
20W |
| Distortion |
<0.05% |
| Operating Bandwidth |
2.5kHz to 28kHz |
Low Frequency Section
| Acoustic Design |
Front Loaded, Bass Reflex |
| Woofer Size / Voice Coil Diameter / Design |
6" / 1.75" |
| Magnet Type |
Neodymium |
| Diaphragm Material |
Epoxy Reinforced Cellulose |
Low Frequency Amplifier Specification
| Type |
High efficiency, Current-enhancing switch mode |
| Rated Continuous Power |
350W |
| Distortion |
<0.05% |
| Operating Bandwidth |
68Hz to 2.5kHz |
Signal Input
| Input Sensitivity |
1V RMS |
| Input Impedance |
20 kΩ |
Power Requirements
| Power Connector |
Neutrik PowerCon® |
| Operating Voltage Range |
100 to 120V @ 60Hz | 230 to 250V @ 50Hz |
| Recommended Amperage |
3.15A 115V | 1.6A 230V |
Cabinet
| Cabinet Material |
Baltic birch |
| Handles |
1 |
| Pole Mount |
35 mm |
| Color |
"Orange peeled" Matt Black or any RAL |
Physical Dimensions
| Height |
570 mm (22.44") |
| Width |
220 mm (8.66") |
| Depth |
274 mm (10.78") |
| Weight |
16 kg (35.2lbs |
