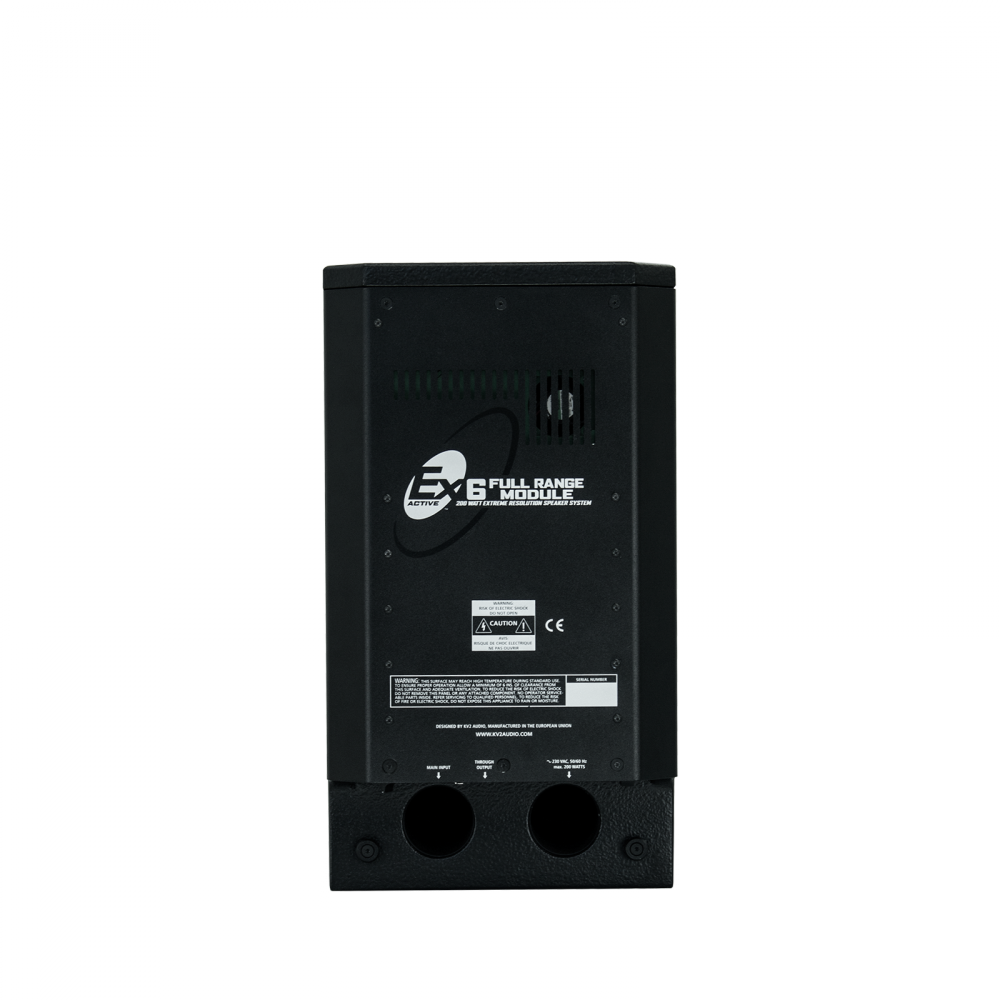

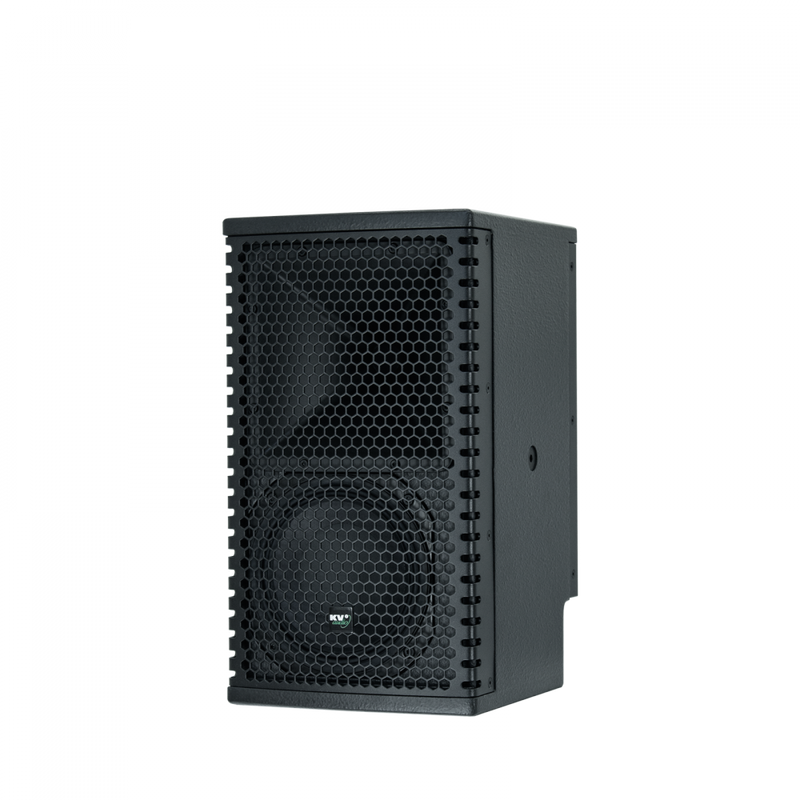

🇬🇧 Kv2 Audio EX6 ☎️Call for Quote

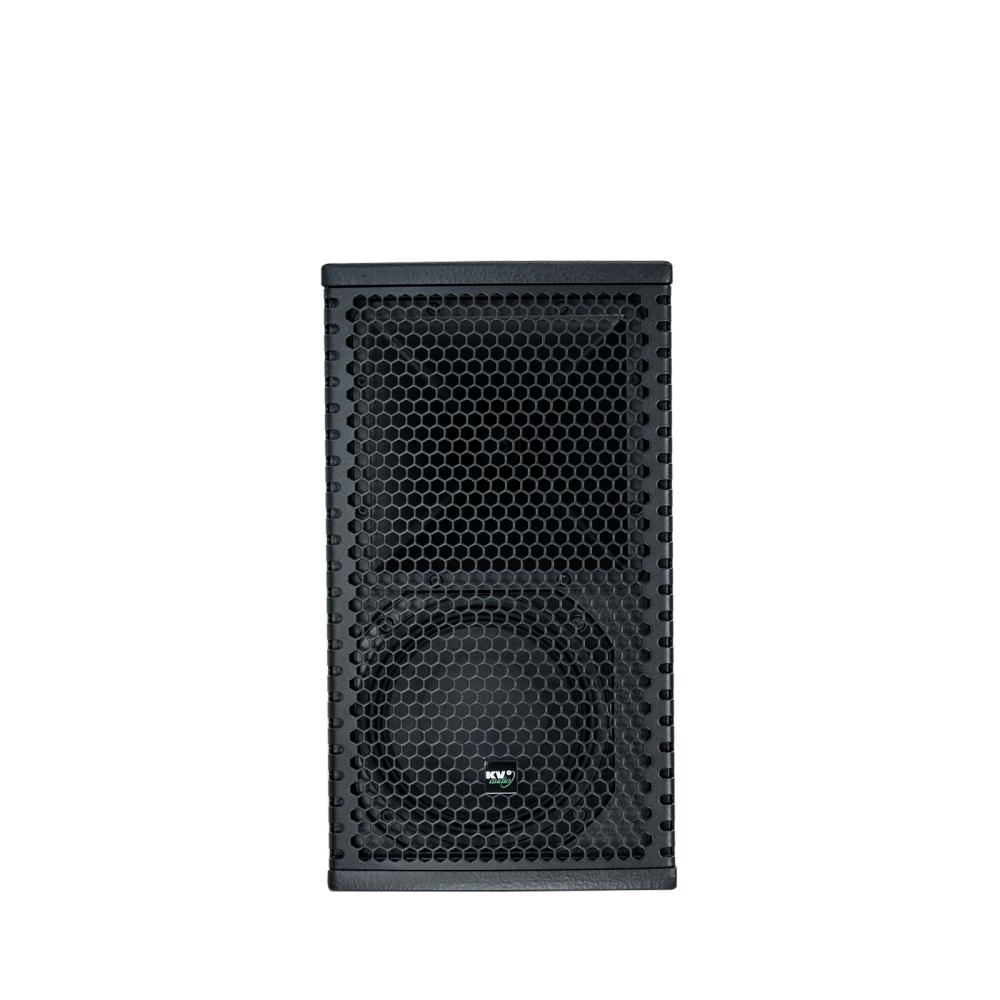

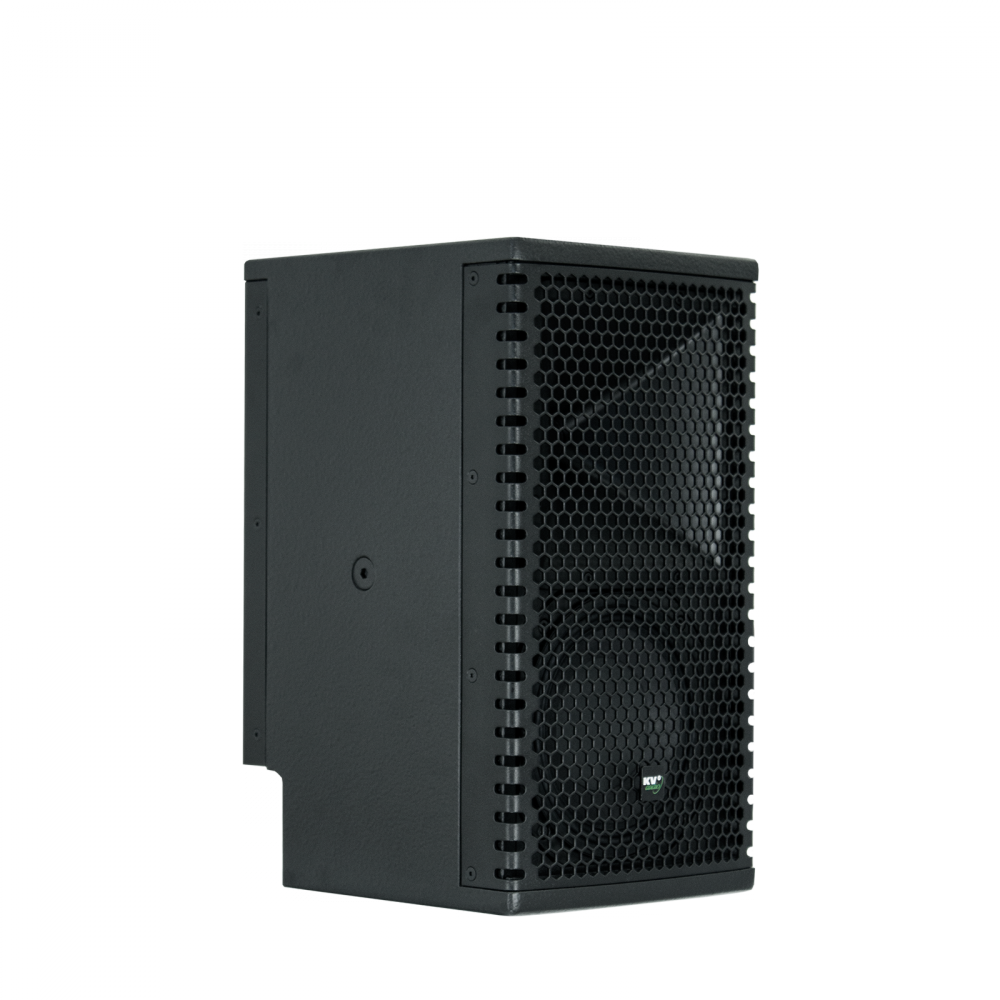

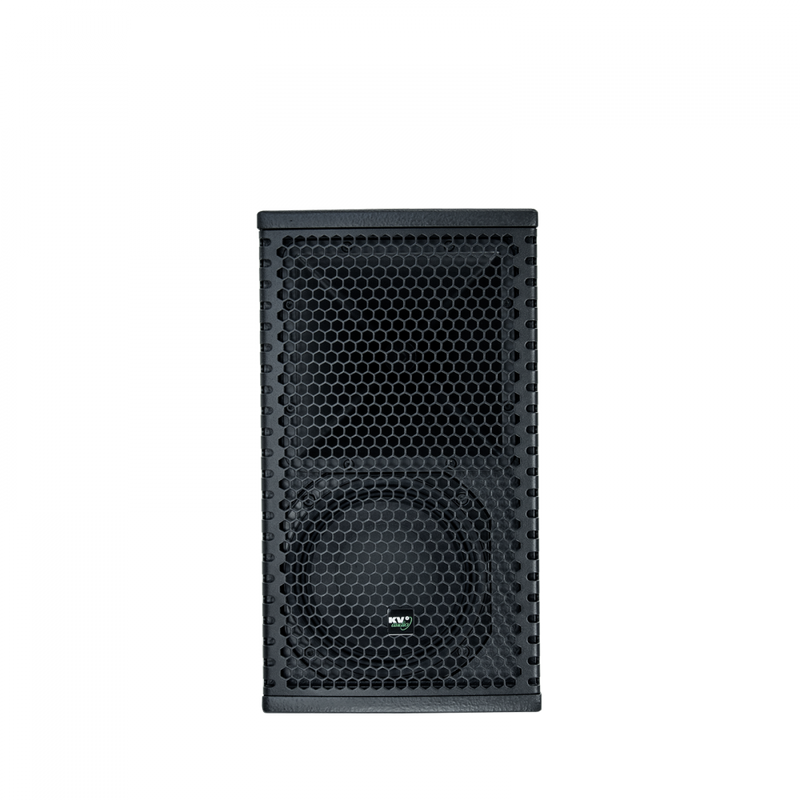

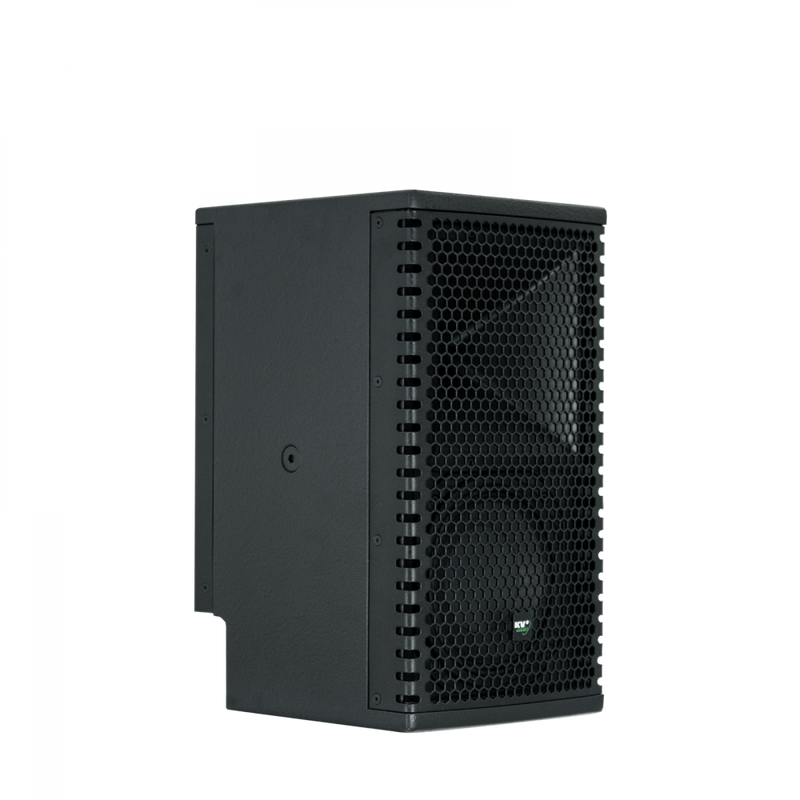

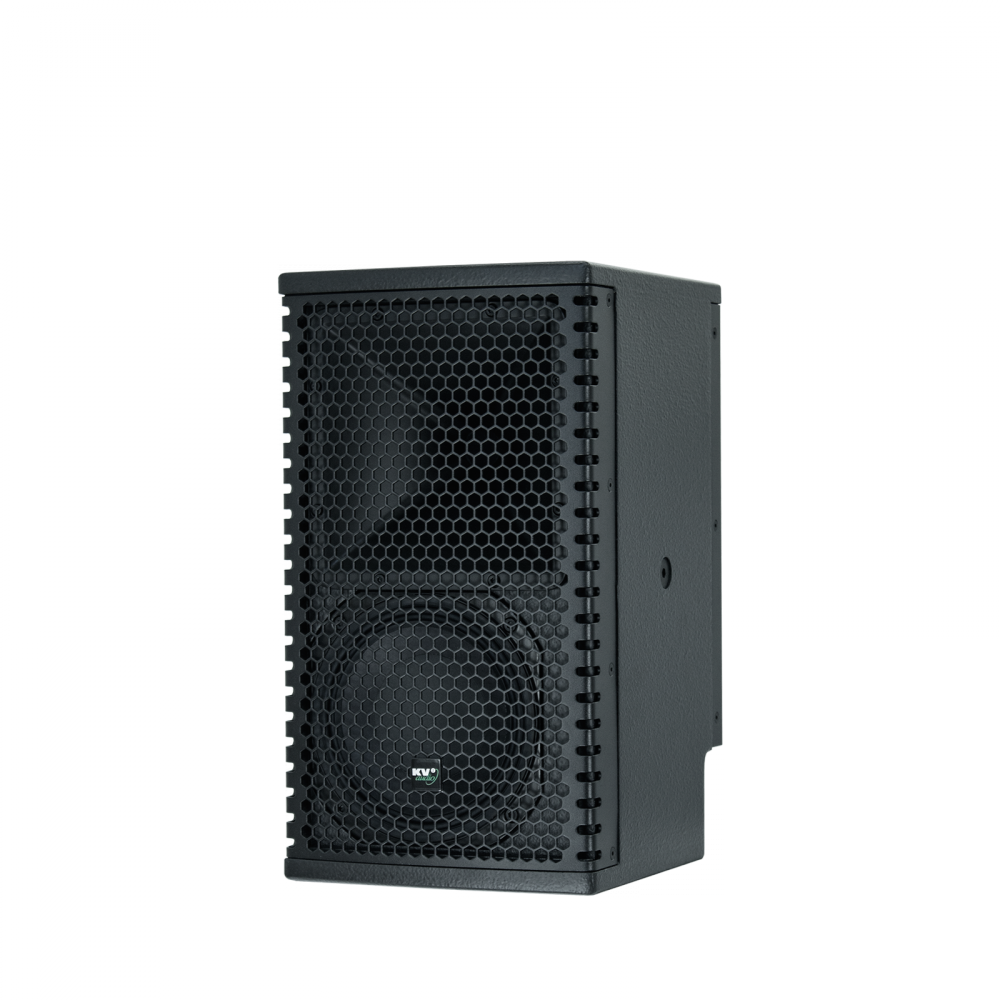

EX6 - The Ultimate Compact Active System

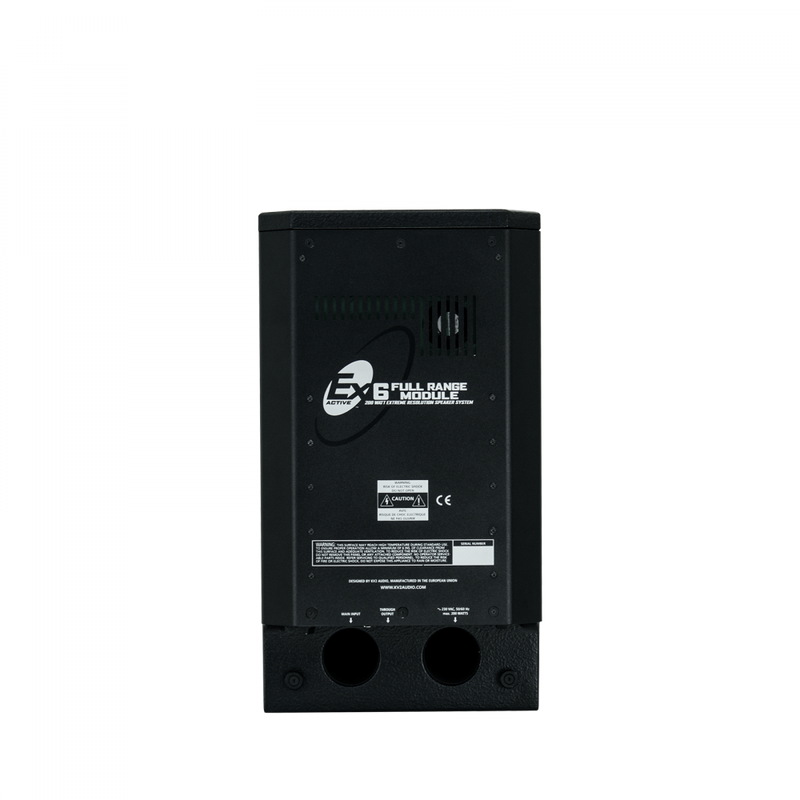

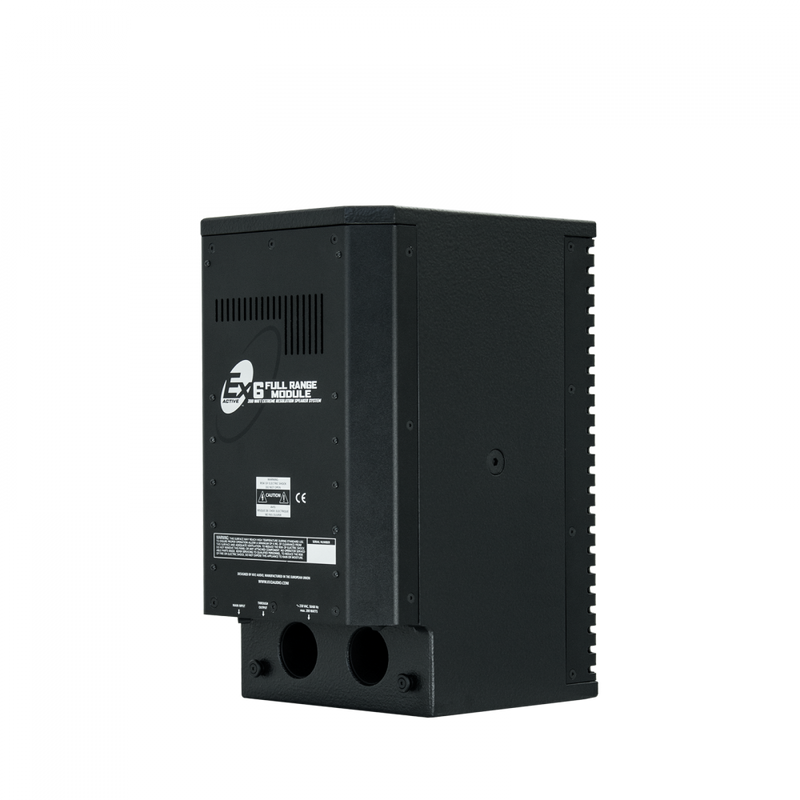

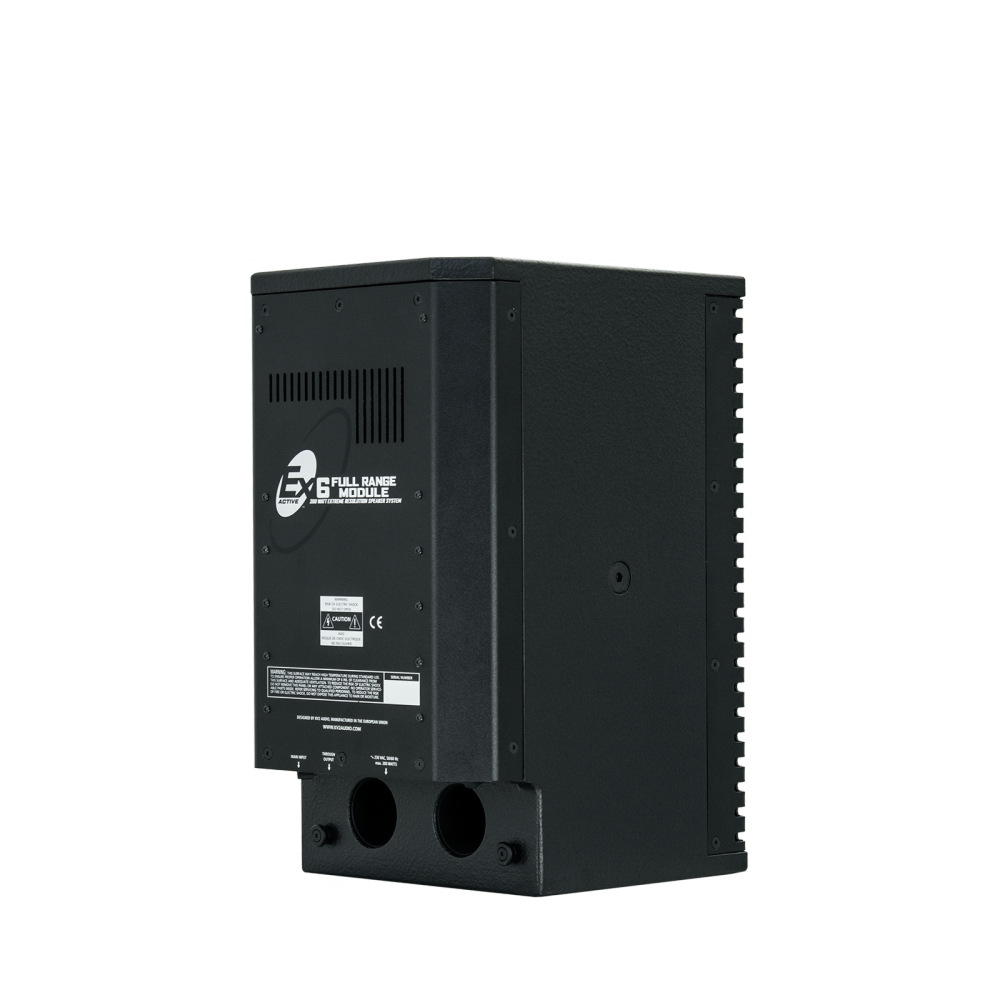

The EX6 is a very high quality compact speaker system producing a 2-way full range solution, which defies its size. With amazing clarity for musical reproduction, the EX6 is perfect for discreet installations or audio visual presentations where sound quality is paramount but size also matters. The EX6 features state of the art components including NVPD compression driver, 6" woofer and complete on-board control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX6’s amplifier module.

System Acoustic Performance

Max SPL Long-term 117dB
Max SPL Peak 120dB
-3dB Response 68Hz to 20kHz
-10dB Response 62Hz to 28kHz
Crossover Point 2.0kHz

High Frequency Section

High Horn Coverage Horizontal / Vertical 100° x 100°
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material Nitride Titanium
Magnet Type Neodymium

High Frequency Amplifier Specification

Type Class AB Push-Pull
Rated Continuous Power 20W
Distortion <0.05%
Operating Bandwidth 2.0kHz to 28kHz

Low Frequency Section

Acoustic Design Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design 6" / 1.75" / Trans Coil
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Low Frequency Amplifier Specification

Type High Efficiency Switching
Rated Continuous Power 180W
Distortion <0.05%
Operating Bandwidth 62Hz to 2.0kHz

Signal Input

Input Sensitivity 1V RMS
Input Impedance 20 kΩ

Power Requirements

Power Connector Neutrik PowerCon®
Operating Voltage Range 100 to 120V @ 60Hz | 230 to 250V @ 50Hz |
Recommended Amperage 2.5A 115V | 1.25A 230V


Cabinet Material Baltic birch
Handles 1
Pole Mount Optional - Stand Adapter EX6
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 395 mm (15.55")
Width 220 mm (8.66")
Depth 274 mm (10.78")
Weight 12 kg (26.4lbs)
