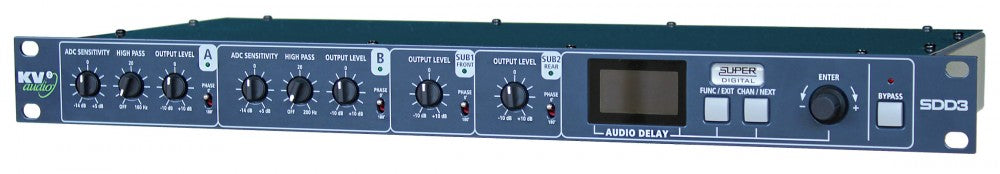

The SDD3 is a true technology statement by KV2 Audio. It utilises our ground breaking 20MHz PDM digital conversion process developed for time alignment applications in our speaker range. The SDD3 incorporates high quality line driver outputs to allow users to deliver pristine audio signal to delay speakers or under balcony fills over 100m from the source. The ultimate choice for the distribution of time corrected audio signal, the SDD3 has two super digital channels that will deliver up to 400 milliseconds of delay. Each of these channels has an adjustable HPF and is easily programmed through the front panel menu where all settings can be stored and recalled for varying situations. It also has a third channel with up to 10 milliseconds of delay for configuring cardoid subwoofer setups. Ideal for large stadiums, theatres, concert halls or any application where time correction is required to achieve optimum audio quality.
System Acoustic Performance
| -1dB Response |
2Hz to 40kHz |
| -10dB Response |
2Hz to 100kHz |
| Sampling Frequency |
20MHz, PDM |
| Dynamic Range |
>105dB |
| Channel Crosstalk |
90dB |
| Signal to Noise Ratio |
105dB |
| Total Harmonic Distortion |
0.005% |
Signal Input
| Input Channels |
2 Full range + 1 Subwoofer |
| Input Impedance |
20kΩ (balanced) |
| Max. Input voltage |
+14dBu |
| Line input |
XLR |

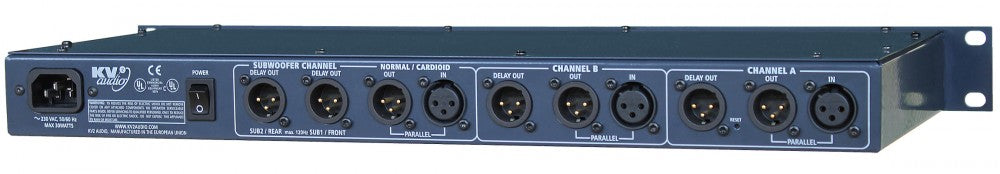

Signal Output
| Signal Output Channels |
2 Full range + 2 Subwoofer |
| Output Impedance |
50Ω |
| Through Signal Output |
XLR |
| Delay Signal Output |
XLR |
Features
| Input Level Control |
-10 / +10dB |
| Subwoofer Level Control |
-10 / +10dB |
| System setup |
Normal / Cardioid mode |
| Delay Range |
0.012ms ÷ 393.216ms, step 0.003ms |
| Full Range Mode |
2 channels |
| Phase |
0° / 180° |
| High Pass Filter |
OFF to 260Hz |
| Indicators |
OLED Display |
| Memory |
30 |
Power Requirements
| Power Connector |
IEC 320 |
| Operating Voltage |
115V / 230V |
| Operating Voltage Range |
90 to130V@60Hz | 180 to 260V@50Hz |
Physical Dimensions
| Height |
44 mm (1.75") |
| Width |
482.6 mm (19.0") |
| Depth |
203 mm (7.9") |
| Weight |
3.6 kg (7.94lbs) |
