🇬🇧 Kv2 Audio SL3000 ☎️Call for Quote


Description

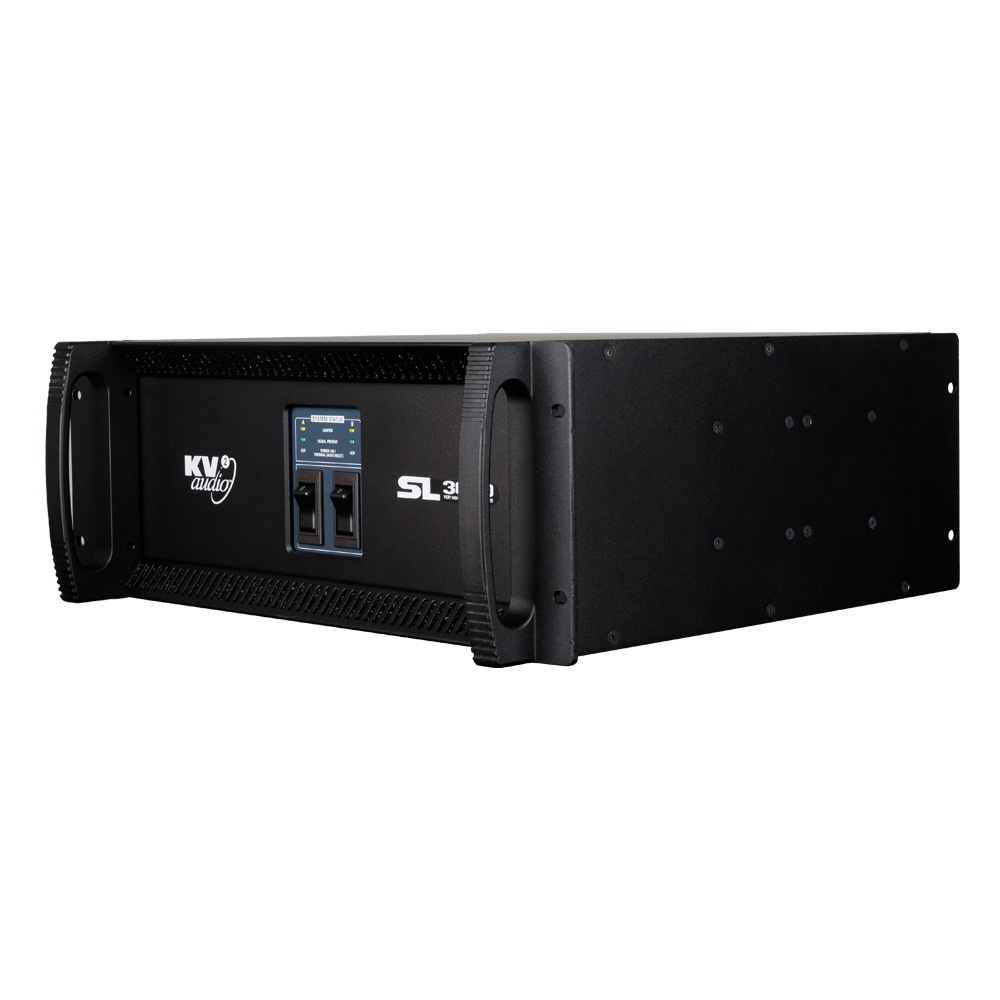

SL3000 Amplifier - Rack mounted

The SL3000 Amplifier is a three-way, active control and amplification system specifically designed for the KV2 Audio SL Series modular loudspeaker systems. The SL3000 Stereo Amplifier drives and controls one SL412 per channel and follows the typical KV2 holistic approach of matching components with high quality electronics for true direct performance. The SL3000 utilises a 1000-watt high efficiency – current enhancing, switch – mode technology, with linear active filter design for the low mid-section, a 200-watt class AB push pull low intermodulation design amplifier for the mid-range and a similar 100-watt design for the high frequencies. It houses all time alignment, phase correction, amplification and equalisation as well as providing an external subwoofer crossover output to run further subwoofer cabinets if needed.



Output Channels

Number of Channels 2 (stereo)
Total Output Power 2x 1300W

High Frequency Amplifier Specification

Type Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power 100W
Distortion <0.02%
Operating Bandwidth 2,5kHz to 40kHz

Mid Frequency Amplifier Specification

Type Class AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power 200W
Distortion <0.02%
Operating Bandwidth 400Hz to 2,5kHz

Low Frequency Amplifier Specification

Type High efficiency, Current-enhancing switch mode
Rated Continuous Power 1000W
Distortion <0.02%
Operating Bandwidth 35Hz to 400Hz

Signal Input

Input Sensitivity 1V RMS
Input Impedance 20kΩ (balanced)

Speaker Output

Speaker Output 2x AP6

Power Requirements

Power Connector 2x Neutrik PowerCon®
Operating Voltage 115V / 230V / 250V
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 2x10A 115V | 2x5A 230V | 2x5A 250V

Physical Dimensions

Height 177.8 mm (7.0"), 4RU
Width 481.4 mm (18.95")
Depth 495 mm (19.5")
Weight 39.2 kg (86.62lbs
