Description

VHD1.0 - Mid High/Down-fill Enclosure

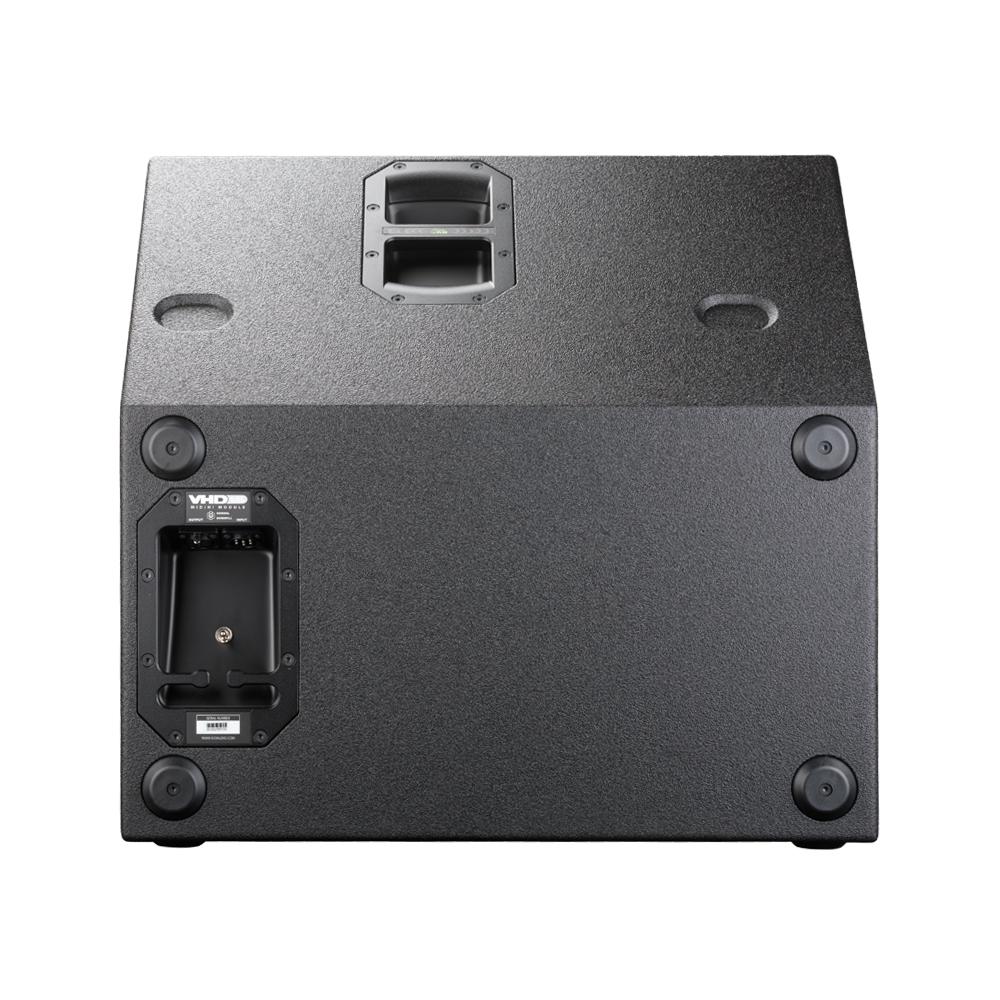

The VHD1.0 downfill enclosure features a single 12" low mid woofer, an 8" transcoil mid-range woofer and the same compression driver as the VHD2.0 on a wide angle 110° horizontal by 40° vertical horn. The rear of the box has been angled for use as a downfill with the VHD2.0. Alternatively as a stand-alone box up to three VHD1.0s can be powered from a single VHD2000 amplifier. Like the VHD2.0, VHD1.0 is available in left and right versions for downfill applications. Designed to be powered as a slave from the VHD2.0 cabinet or directly from the VHD2000 amplifier, all equalization, set up and level are preset providing a plug and play solution for large scale touring and high quality installation



System Acoustic Performance

Max SPL Long-term 134dB
Max SPL Peak 137dB
-3dB Response 100Hz to 22kHz
-10dB Response 85Hz to 30kHz
Full Range mode -3dB Response 65Hz to 22kHz
Crossover Point 100Hz, 450Hz, 2.2kHz

High Frequency Section

Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 110° x 40°
High Frequency Amplifier Requirement 100W (VHD200 amp.)
Throat Exit Diameter / Diaphragm Size 1.4" / 3.0"
Diaphragm Material Nitride Titanium
Magnet Type Neodymium

Mid Range Section

Acoustic Design Horn Loaded
Mid Horn Coverage Horizontal / Vertical 110° x 40°
Midrange Amplifier Requirement 300W (VHD2000 amp.)
Woofer Size / Voice Coil Diameter / Design 8" / 3.0" / Trans Coil
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Mid Bass Section

Acoustic Design Horn Loaded
Mid-bass Amplifier Requirement 600W (VHD2000 amp.)
Woofer Size / Voice Coil Diameter / Design 12" / 3" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium

Speaker Input

Speaker Input AP6 male

Speaker Output

Speaker Output AP6 female

Cabinet

Cabinet Material Baltic birch
Handles 4
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 660 mm (25.98")
Width 700 mm (27.55")
Depth 495 mm (19.48")
Weight 45 kg (99lbs
