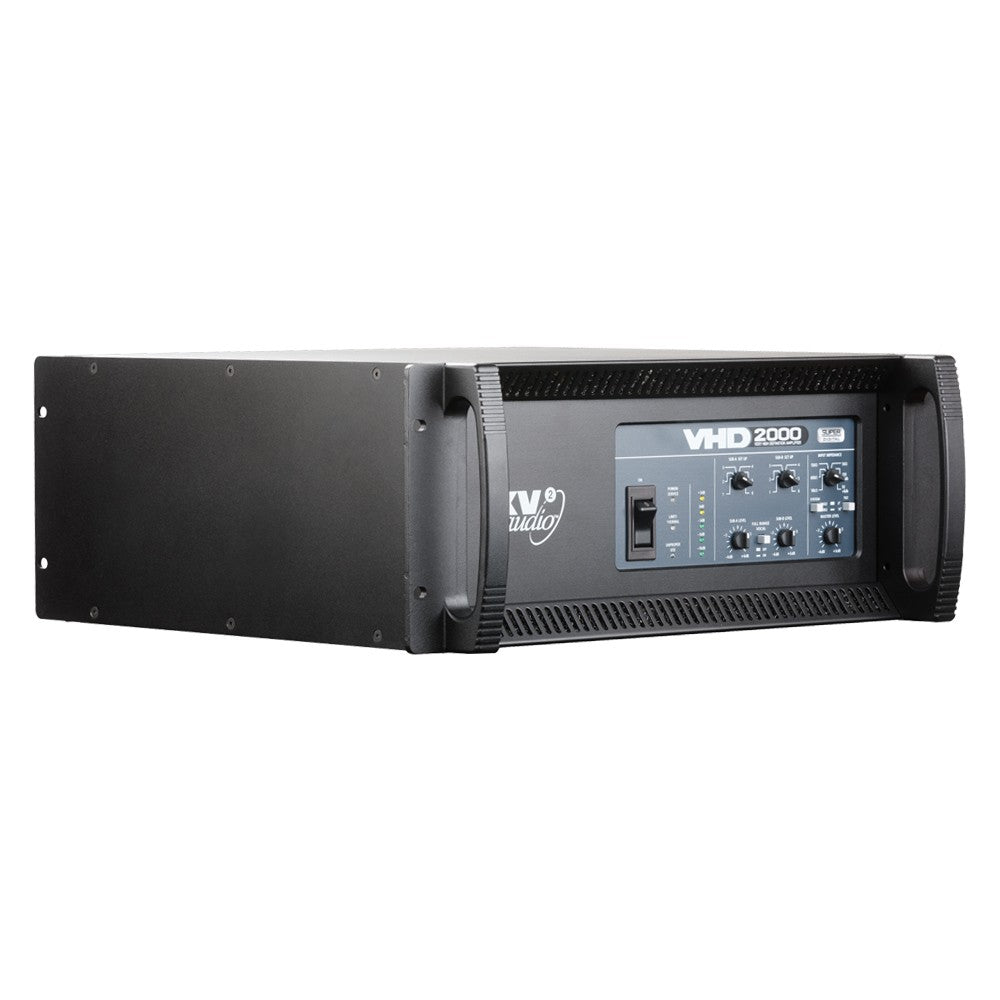

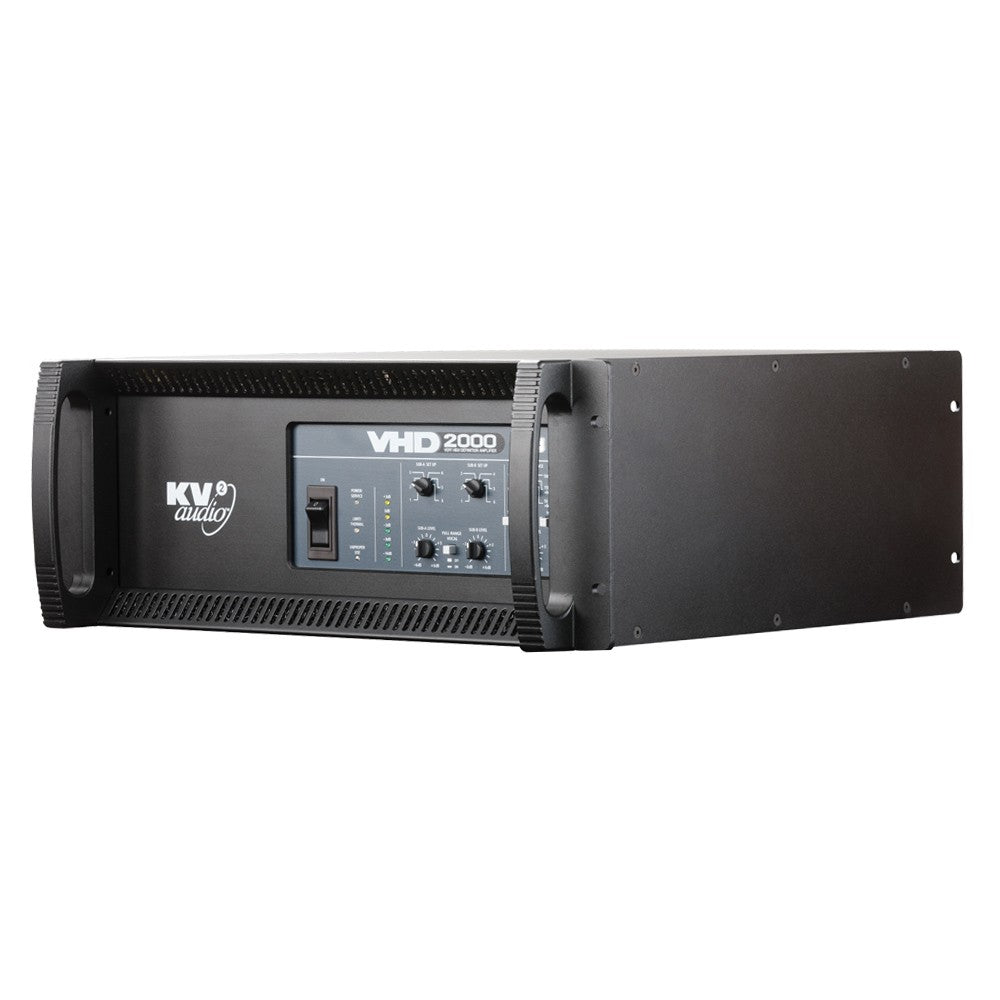

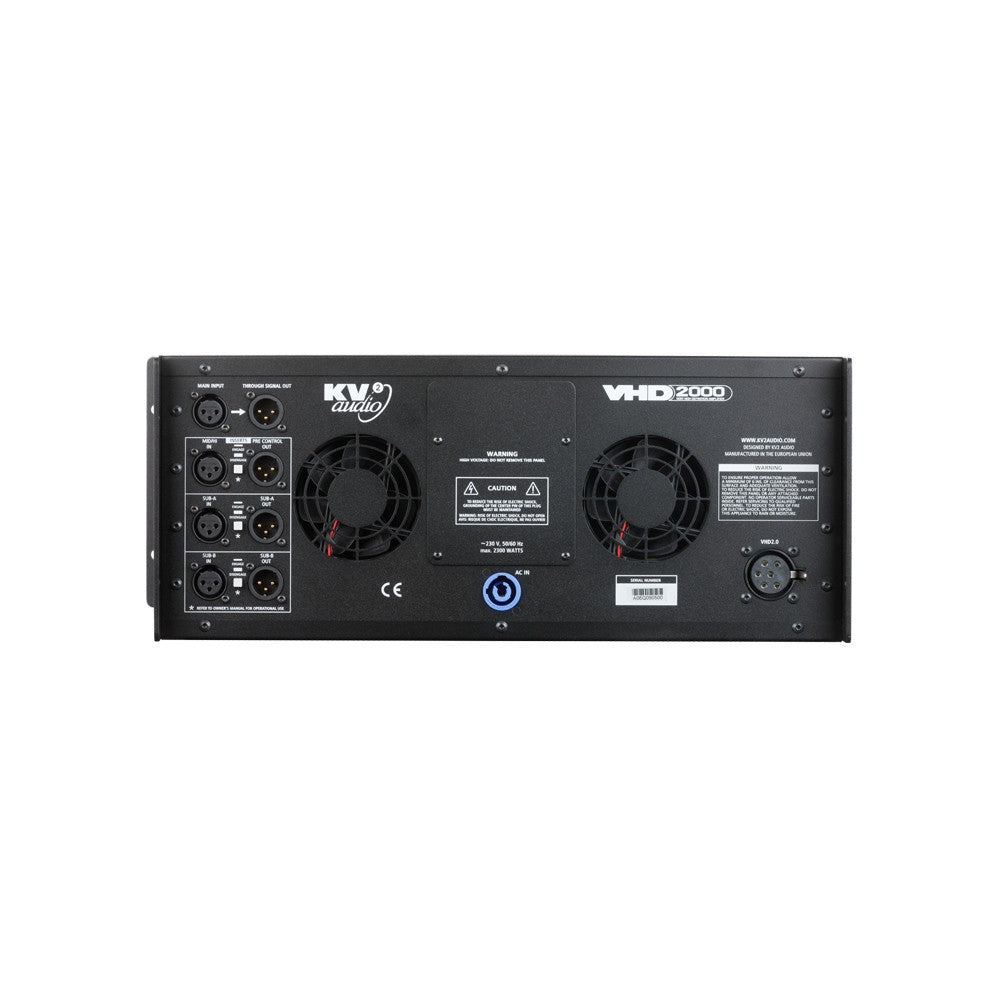

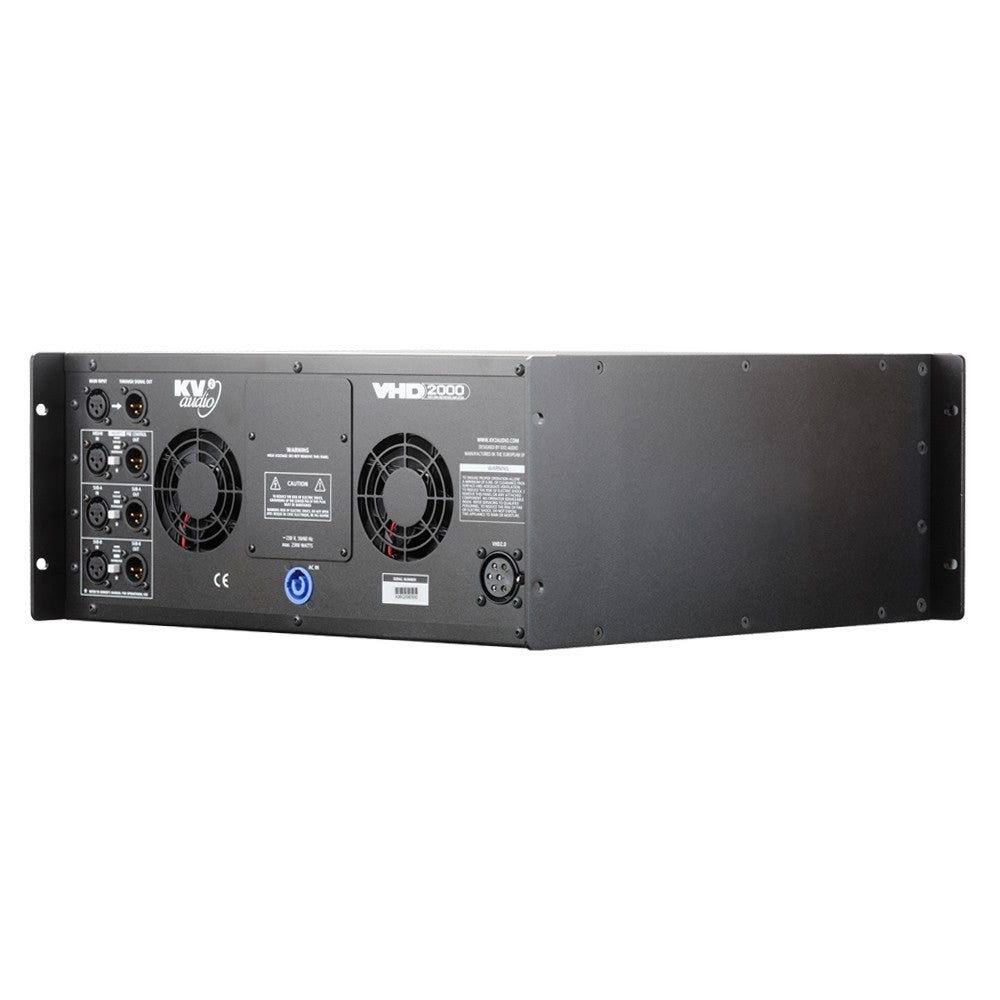

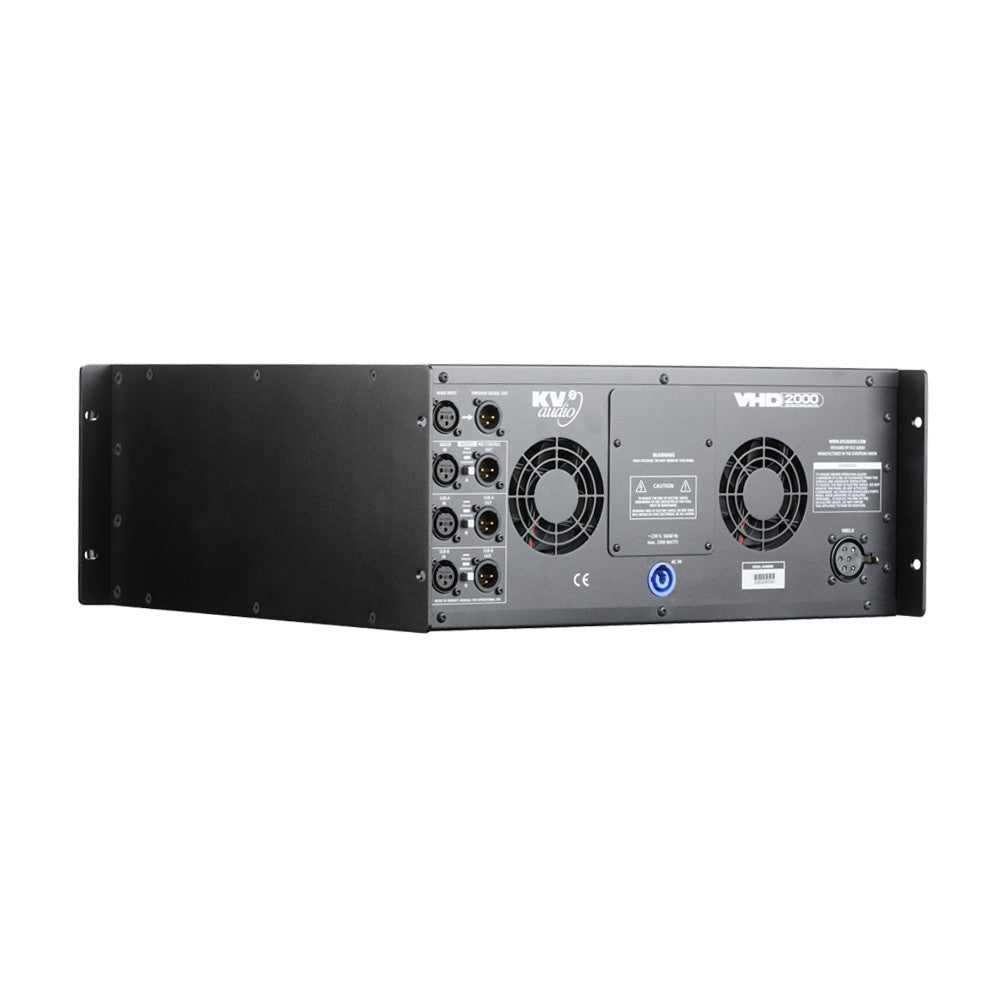

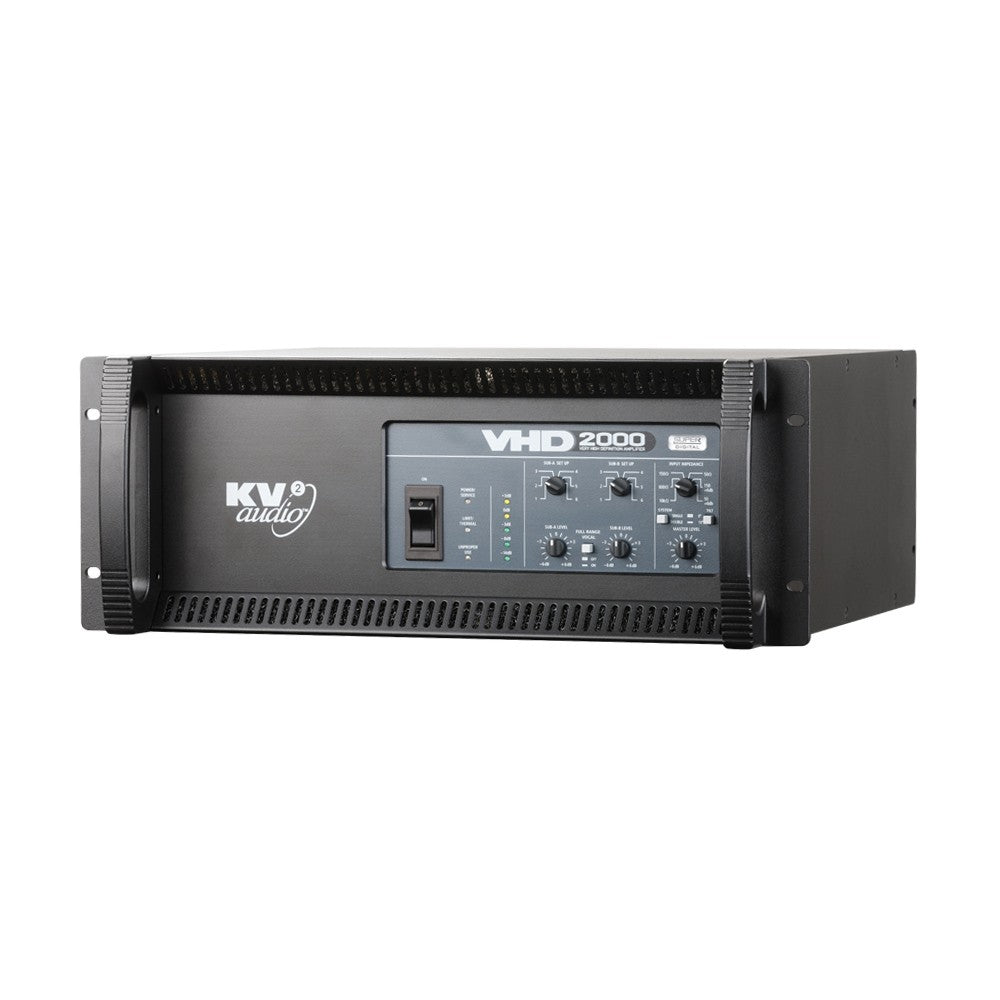

VHD2000 - System Control and Amplification
The VHD2000 is the control and amplification unit for the VHD2.0. It is a three-way, rack-mounted unit containing high frequency, mid frequency and mid-bass amplifiers. It also houses all processing and control electronics for the subwoofer system. Our own hybrid signal processing utilises the very best technology available from both the analogue and digital worlds, to offer complete audio system control, equalisation, overdrive protection, thermal protection and user adjustable set up parameters. Time alignment and phase correction is done via KV2’s new 20MHz digital delay line, boasting the highest sampling rate of any digital speaker processor available. Once the set-up process is completed, the VHD2000 manages all system functions and assures optimal performance.
Output Channels
High Frequency Amplifier Specification
| Type |
Class AB Push-Pull low IM Mosfet design, transformer balanced output |
| Rated Continuous Power |
300W |
| Distortion |
< 0.05% |
| Operating Bandwidth |
2.2kHz to 30kHz |
Mid Frequency Amplifier Specification
| Type |
High Efficiency, High power bandwidth |
| Rated Continuous Power |
1000W |
| Distortion |
< 0.05% |
| Operating Bandwidth |
450Hz to 2.2kHz |
Mid Bass Frequency Amplifier Specification
| Type |
High efficiency, Low frequency, Current-enhancing switch mode |
| Rated Continuous Power |
1600W |
| Distortion |
< 0.05% |
| Operating Bandwidth |
100Hz to 450Hz |
Signal Input
| Input Sensitivity |
1.0V RMS |
| Input Impedance |
10kΩ to 50Ω "Line driver ready" |
| Signal Output |
Main Through OUT, Sub A and B OUT |
| Insert |
Mid/High, Sub A, Sub B |
Speaker Output
Features
| Input Level Control |
+/- 6dB |
| Subwoofer Level Control |
Sub A +/- 6dB, Sub B +/- 6dB |
| System setup |
6x |
| Full Range Mode |
VHD2.0: 60Hz to 22kHz, Sub MUTE |
| Two per Side switch |
Double system - EQ |
Power Requirements
| Power Connector |
Neutrik PowerCon® |
| Operating Voltage |
115V / 230V / 250V |
| Operating Voltage Range |
100 to120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz |
| Recommended Amperage |
20A 115V | 10A 230V | 10A 250V |
| Soft Start |
YES |
| Protection |
Thermal breaker |
| Cooling |
2x temperature controlled fans |
Physical Dimensions
| Height |
177 mm (7.0") |
| Width |
481.4 mm (18.9") |
| Depth |
455.3 mm (17.9") |
| Weight |
30 kg (66lbs |
