🇬🇧 Kv2 Audio VHD3200 ☎️Call for Quote

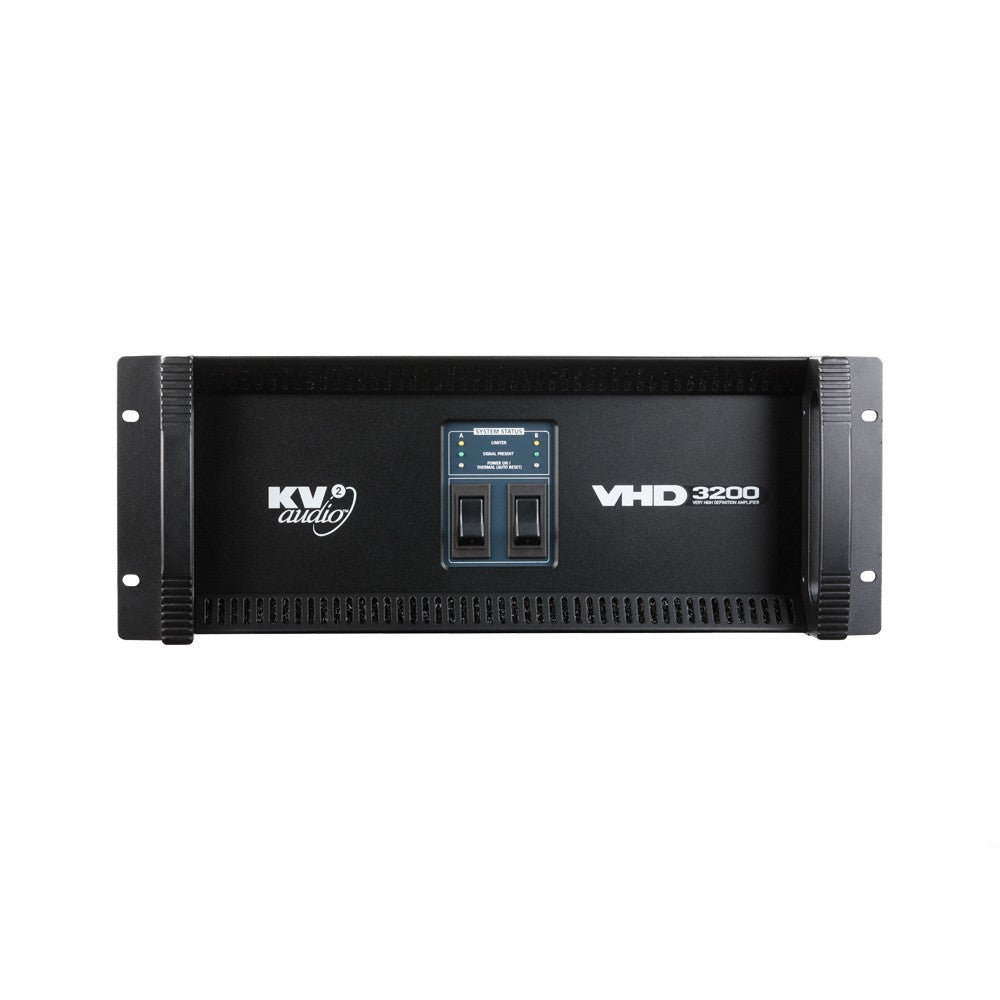

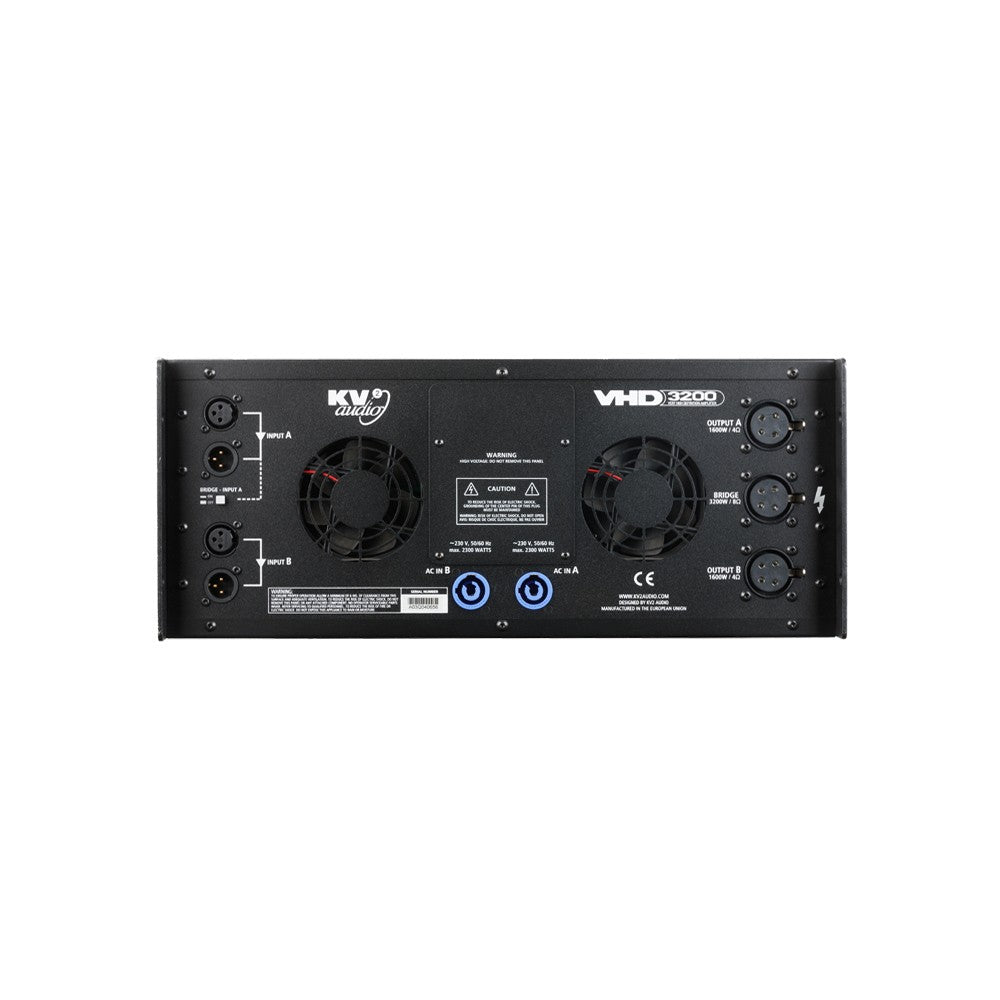

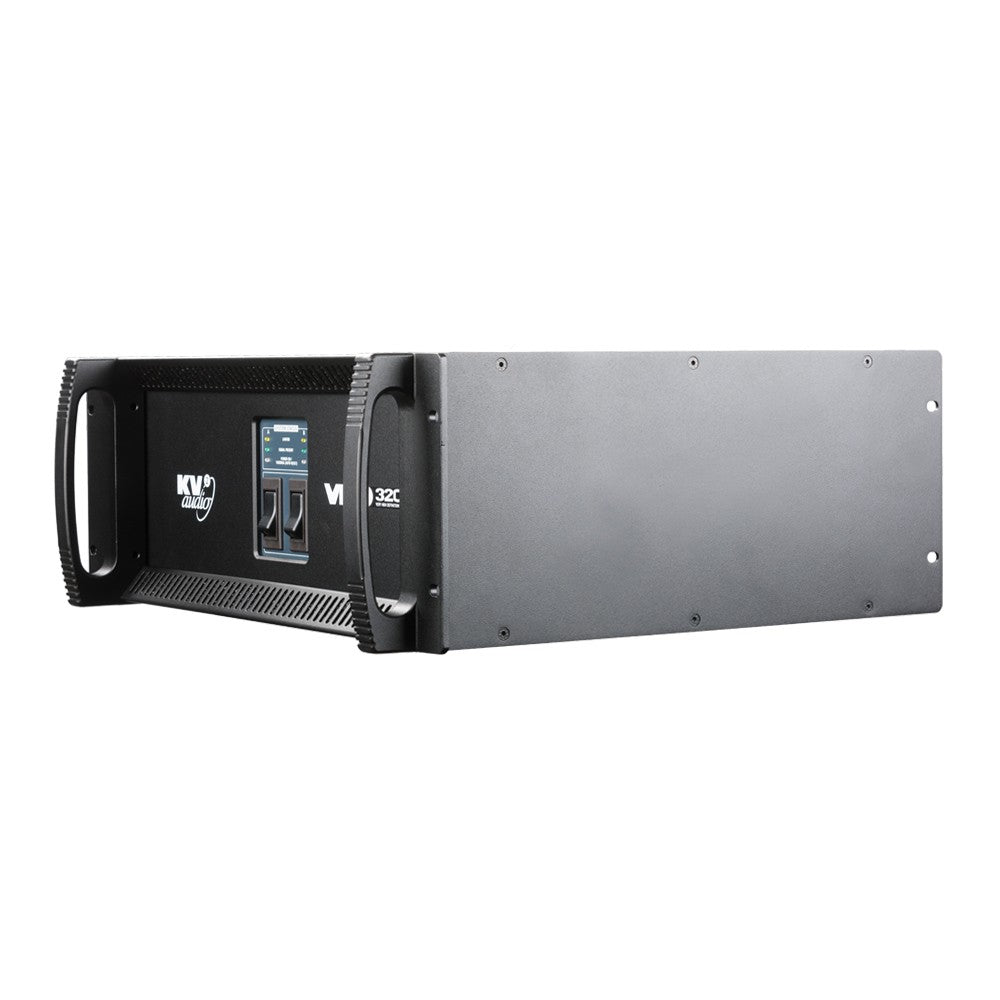

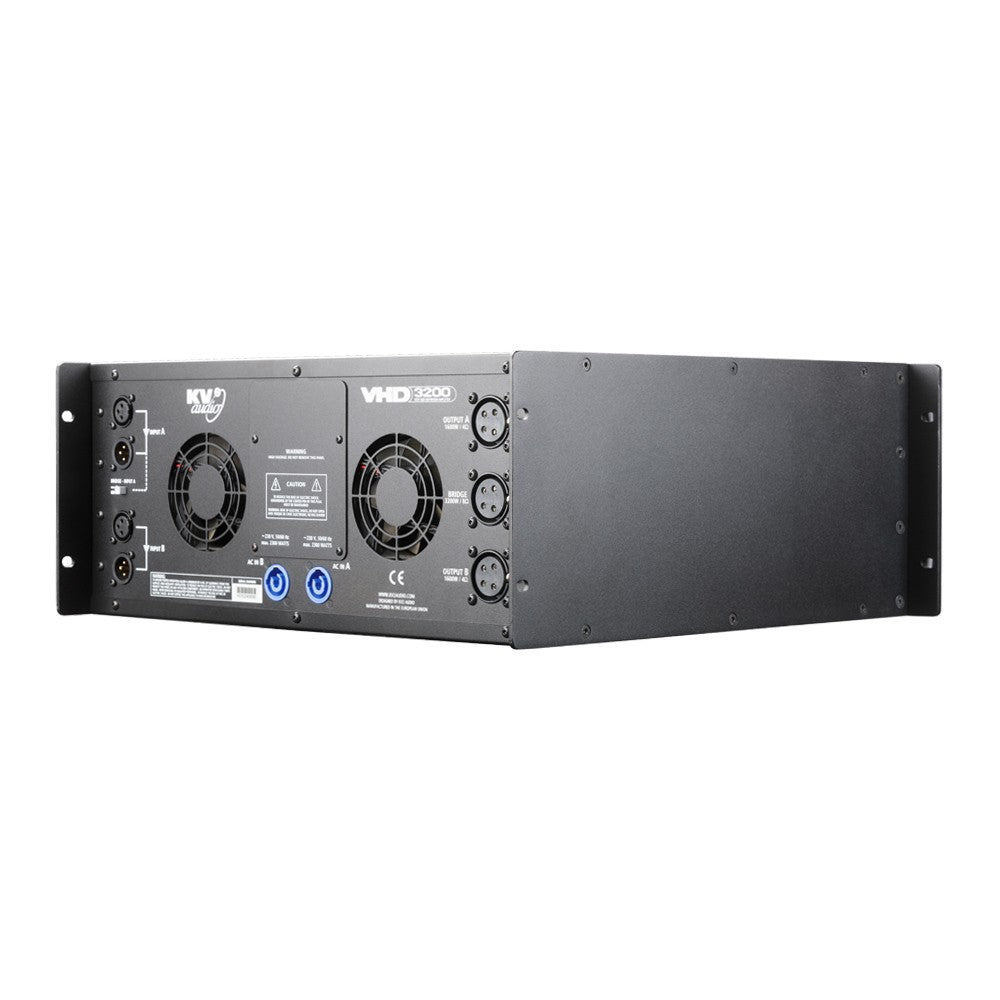

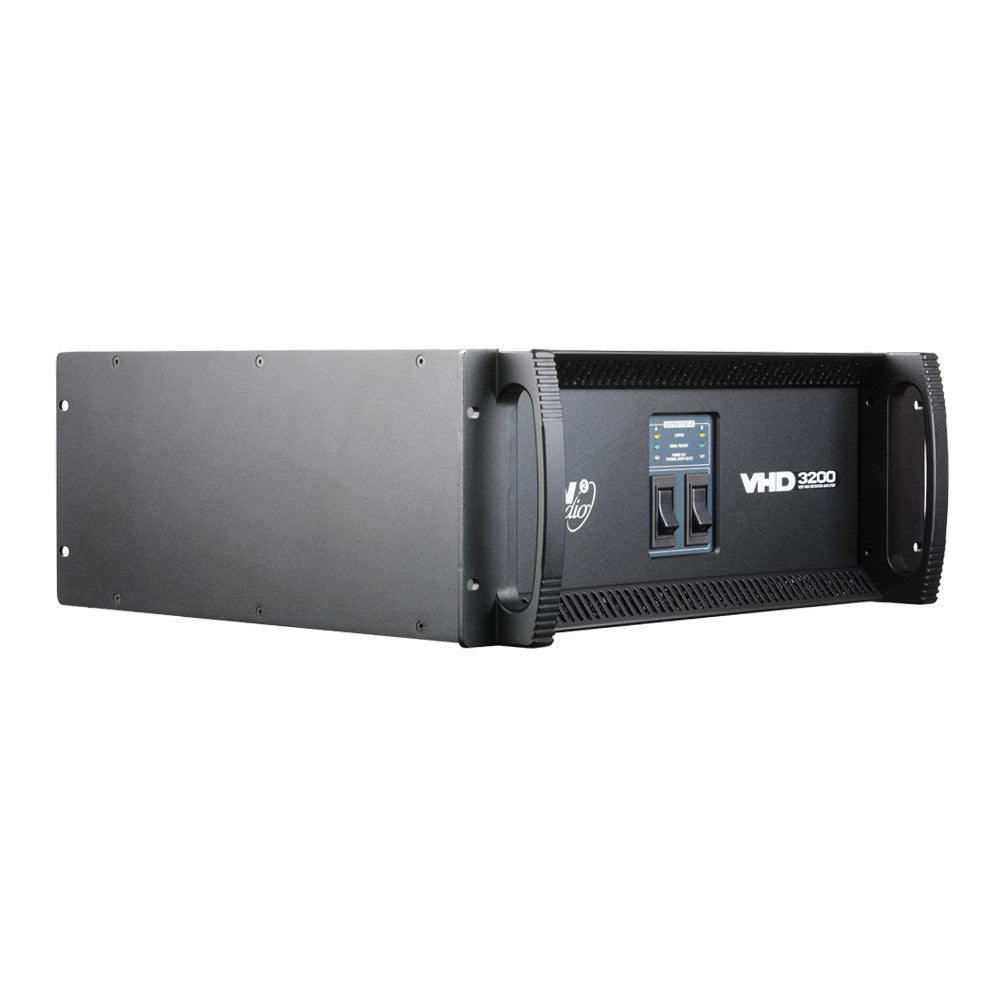

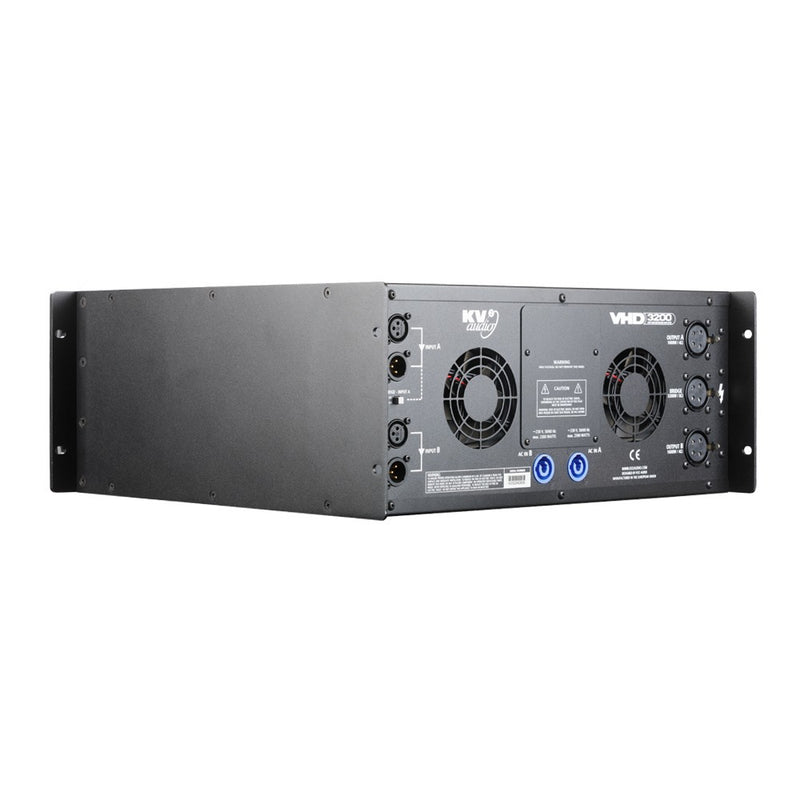

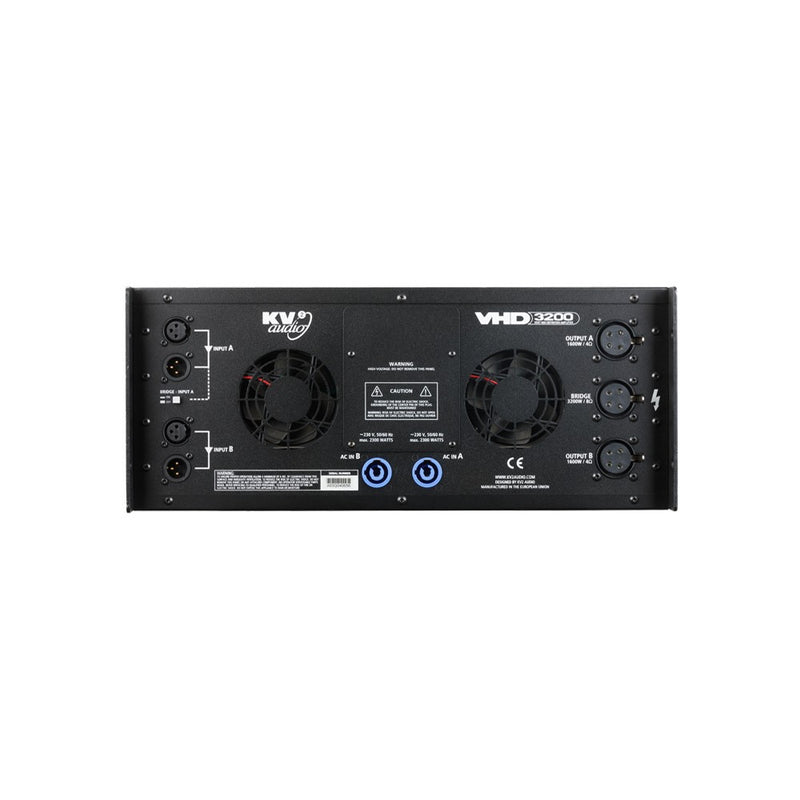

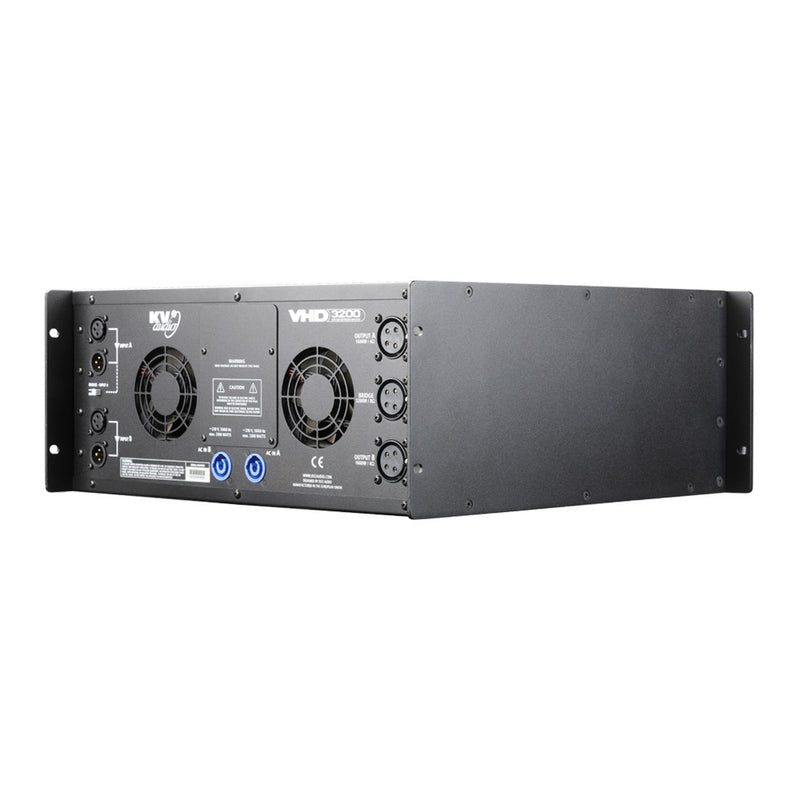

VHD3200 - Subwoofer Amplifier

Power for the VHD subwoofers is provided by the VHD3200 rack mounted subwoofer amplifier. The unit contains two separate 1600W amplifiers with individual power supplies, signal paths and I/O within a single four rack space chassis. The unit acts as a slave for the VHD2000, which provides audio and control signal, and also functions in the same way for expansion of an ES series system, taking its feed from the external subwoofer output on an EPAK2500R or an ESR/SL3000 amplifier. The 3200 amplifier can also run in bridge mode for maximum bass output driving a single VHD2.21 sub.


Output Channels

Number of Channels 2
Out. Power 4Ω - 1 channel / 2 channels loaded 1600W / 1600W (RMS)
Out. Power 8Ω - bridged 3200W (RMS)

Low Frequency Amplifier Specification

Type High efficiency, Low frequency, Current-enhancing switch mode
Distortion <0.05%
Operating Bandwidth 20Hz to 100Hz

Signal Input

Input Sensitivity 1.0V RMS
Input Impedance 20kΩ (balanced)
Signal Output Main Through OUT

Speaker Output

Speaker Output 2x AP4 (1x AP4 bridge)


System setup Limiter / Short protection

Power Requirements

Power Connector 2x Neutrik PowerCon®
Operating Voltage 115V / 230V / 250V
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 2 x 20A 115V | 2 x 10A 230V| 2 x 10A 250V
Soft Start YES
Protection Thermal breaker
Cooling 2x temperature controlled fans

Physical Dimensions

Height 177.4 mm (7.0")
Width 481.4 mm (18.9")
Depth 455.3 mm (17.9")
Weight 35 kg (88lbs)
