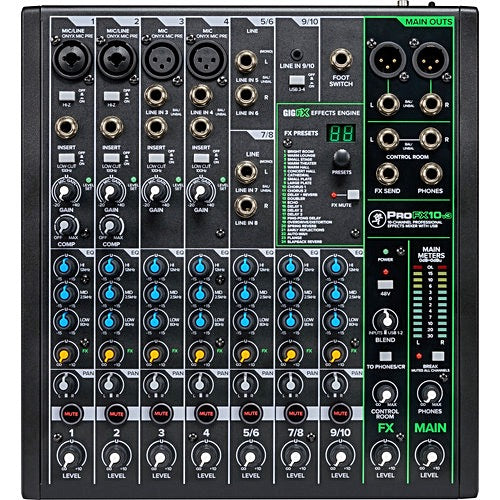

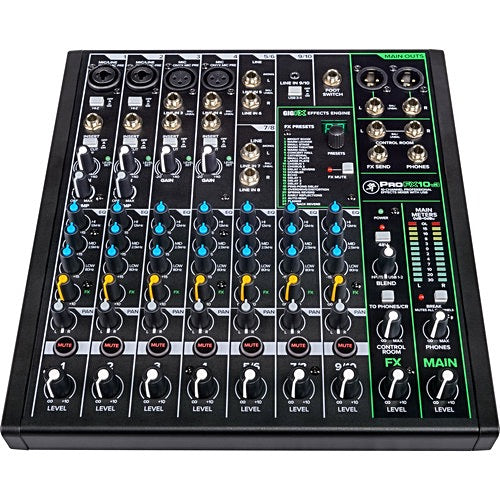

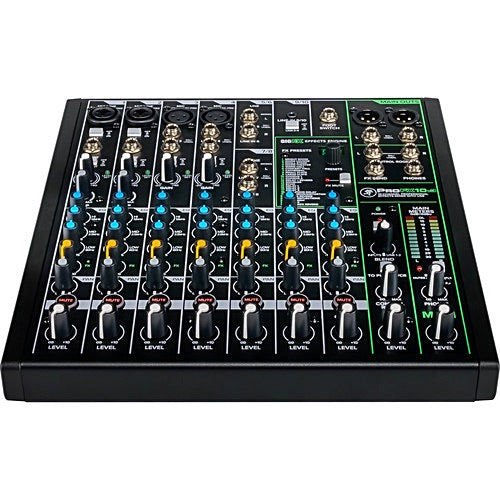

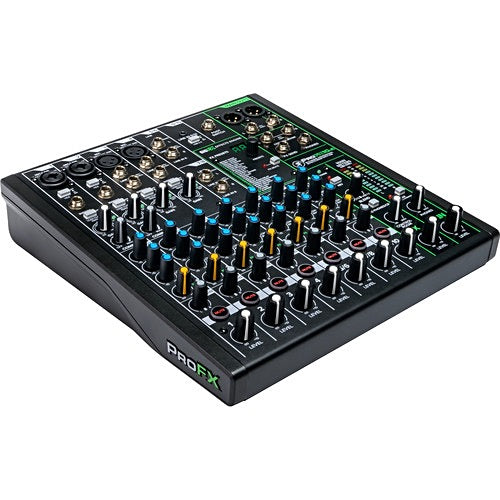

๐Ÿ™‹โ€โ™€๏ธ Mackie PROFX10V3


Price:
$334.99

Description

Mackie PROFX10V3 Specs

Equivalent Input Noise 150-Ohm Source Impedance, 20 Hz to 20 kHz:
Mic In to Insert Send Out, Max Gain -126 dBu
Residual Output Noise All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu
All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu
Frequency Response Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N 22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output):
Attenuation and Crosstalk Adjacent Inputs at 1 kHz: -90 dB
Inputs to Outputs at 1 kHz: -80 dB
Fader Off at 1 kHz: -75 dB
Mute Switch / Break Switch Mute at 1 kHz: -90 dB
Common Mode Rejection Ratio Mic In to Main Out, Max Gain, 1 kHz: 70 dB
Maximum Level All Inputs: +22 dB
Main Out XLR: +28 dBu
All other Outputs: +22 dBu
Impedance Mic In: 3.3 Kilohms
Channel Insert Return: 10 Kilohms
All Other Inputs: โ‰ฅ20 Kilohms
Phones Output: 25 Ohms
All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced
Equalization Low ยฑ15 dB at 80 Hz
Mid ยฑ15 dB at 2.5 kHz
High ยฑ15 dB at 12 kHz
Low Cut Filter 18 dB/octave at 100 Hz
Maximum Voltage Gain Mic Input Channel to:
Insert Output: 60 dB
1/4" Main Output: 80 dB
XLR Main Output: 86 dB
FX Send: 80 dB
USB Output: 70 dB

Mono Line Input Channel to:
Insert Output: 40 dB
1/4" Main Output: 60 dB
XLR Main Output: 66 dB
FX Send: 60 dB
USB Output: 50 dB

Stereo Line Input Channel to:
1/4" Main Output: 20 dB
XLR Main Output: 26 dB
FX Send: 20 dB
USB Output: 10 dB

1/8" Input to:
1/4" Main Output: 40 dB
XLR Main Output: 46 dB
FX Send: 40 dB
USB Output: 30 dB

ย

USB Input to XLR Main Output: 46 dB

Digital Effects Number of Presets: 16
Meters Main L/R Mix:
Two Columns of 12 Segments Each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
USB Format: USB 2.0
I/O: 1 Stereo Input, 2 Stereo Outputs
A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz
Phantom Power 48 VDC to All Mic Channels Simultaneously
AC Power Requirements Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Power Supply: 12 VDC at 2A Class I Hard-Wired Wall Mount Adapter
Dimensions (H x W x D) 3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm
Weight 4.9 lb / 2.2 kg
Packaging Info
Package Weight 6.75 lb
Box Dimensions (LxWxH) 15.11 x 13.8 x 9.6"
