Length: 364 mm (14.4 in.)Width: 305 mm (12.0 in.)Height: 581 mm (22.9 in.)Weight: 19.5 kg (43 lbs.)
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackoutColor wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speedRotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shakePrism: 8-facet circular, indexing, rotation with variable direction and speedPan: 660°Tilt: 250°Pan and tilt speed: Adjustable via onboard control panel and DMXDimming: 0-100%, coarse and fine controlFocus: Motorized, 16-bit coarse and fine controlFrost
Control options: DMX, stand-alone, RDMSetting and addressing: Control panel with backlit LCD displayDMX channels: 18DMX compliance: USITT DMX512/1990RDM compliance: ANSI E1.20
Cutoff beam angle: 2.6°
Color temperature : 6800 K +/- 250 KCRI (Color rendering index): 81Average lifetime: 2000 hours*Approved lamp: Philips MSD Platinum 11R 250 W*Under manufacturer's test conditions.
Housing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20
Interchangeable rotating gobos:
Permitted material: Steel or aluminum
Diameter: 14 mm +/-0.2 mm (0.55 in. +/-0.008 in.)
Maximum image diameter: 13 mm (0.51 in.)
Gobo thickness: 0.8 mm (0.031–0.032 in.)
Minimum clearance around fan and air vents: 200 mm (8 in.)Mounting points: Two quarter-turn omega brackets for rigging clampsLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 200 mm (8 in.)Minimum distance to illuminated surfaces: 10 m (33 ft.)

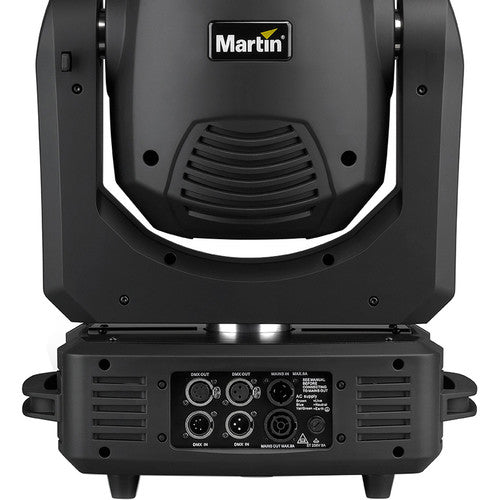

AC power in, thru: Neutrik TRUE1DMX data in, thru: 3-pin and 5-pin locking XLR
AC power: 100-120 / 200-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch mode
120 V, 60 Hz: 380 W, 3.5 A, PF 0.9230 V, 50 Hz: 370 W, 1.7 A, PF 0.9Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Cooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3US safety: UL 1573US EMC: CFR Title 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: RCM (pending)
Philips MSD Platinum 11R 250 W lamp (installed)
Power cable, 1.5 m (4.9 ft.), without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners
Philips MSD Platinum 11R 250 W lamp: P/N 50481205Cables, 16 A, for connection to power in chains:
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cables, 16 A, for relaying power in chains:
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Connectors:
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 9162007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Martin™ RDM 5.5 Splitter: P/N 90758150Martin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com

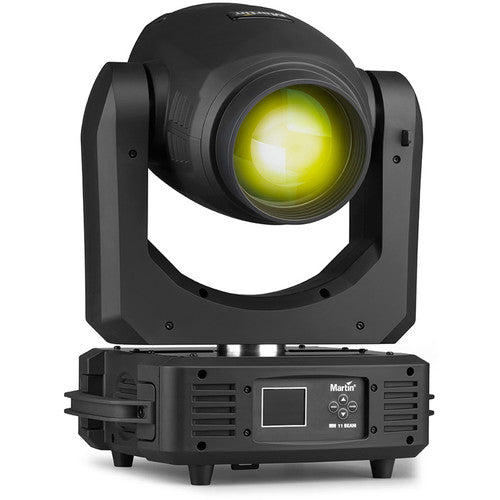

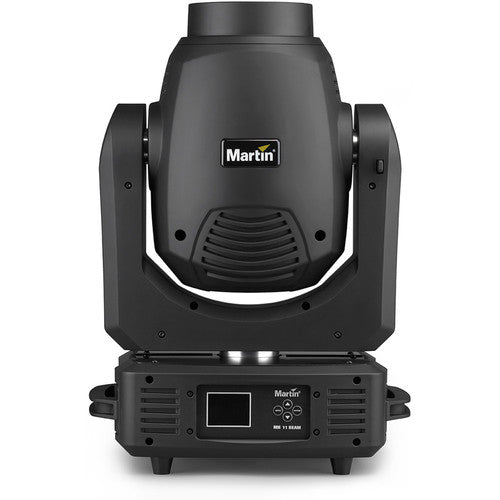

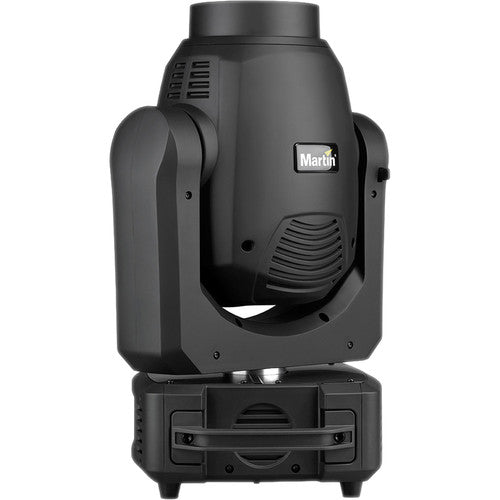

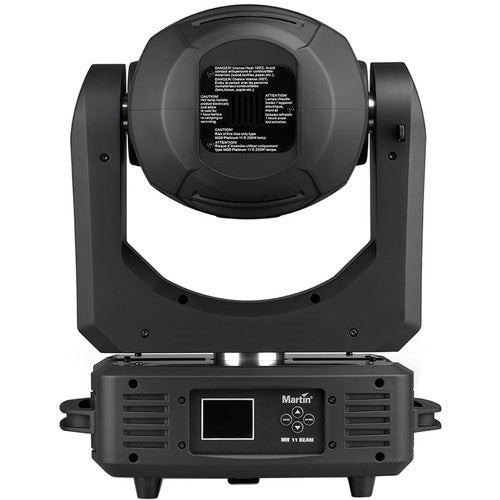

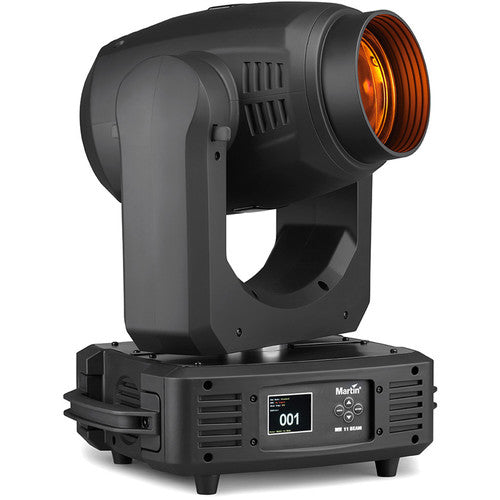

RUSH® MH 11 Beam in cardboard box: P/N 90280130
