Martin RUSH MH 6 Wash CT 📮Email for Quote


Description

The RUSH MH 6 Wash CT is designed for key lighting applications within the House of Worship, Performing Arts and Live Stage environments where color temperature control of white light is critical but also a compact and light weight design is desired for smaller applications

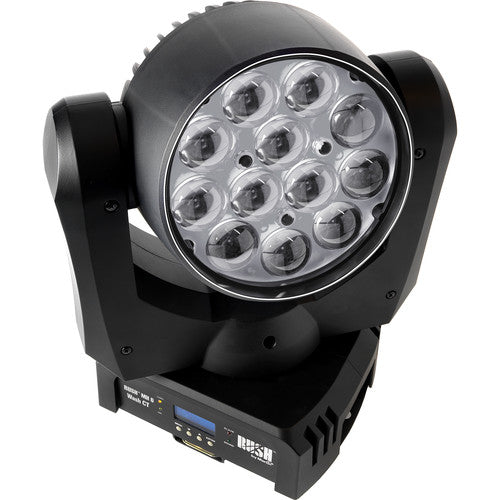

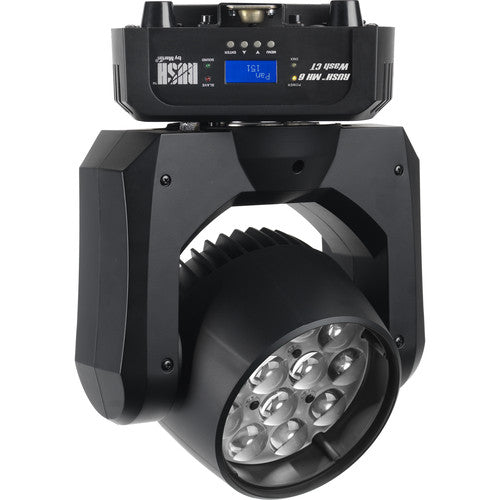

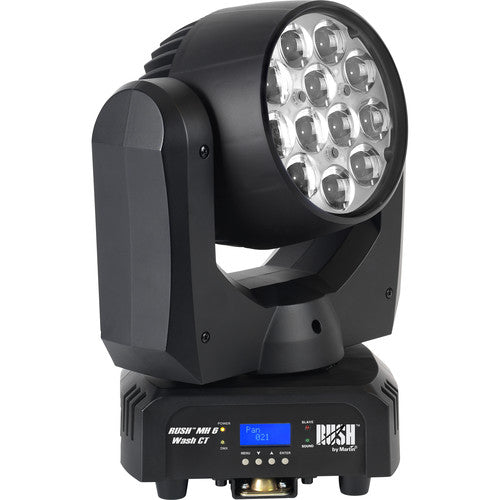

The RUSH MH 6 WASH CT is a bright single-lens LED moving head with fully premixed white color temperatures. With twelve 10W WW/CW (warm white and cold white) LEDs and a 10° to 60° motorized zoom, it offers full electronic dimming and variable strobe effects controlled via DMX.

  • Pre mixed white light ranging from 2,700K to 7,800K
  • 10-60 Degree Zoom System
  • Compact and Lightweight Design



Lighting For Live Streams


FEATURES


  • 2,700K to 7,800K Color Temp Range
  • Allows key lighting to be matched for multiple sources from Tungsten to Metal Halide
  • 10-60 Degree Zoom System
  • Compact and lightweight design
  • Can be used as a Mid effect with a tight beam look to washing a stage for key lighting applications
  • Ideal for applications that have limited ceiling height or weight restrictions.

SPECIFICATIONS


  • PHYSICALLength: 290 mm (11.4 in.)Width: 189 mm (7.4 in.)Height: 360 mm (14.2 in.)Weight: 7.1 kg (15.7 lbs.)
    DYNAMIC EFFECTSElectronic shutter effect: Instant open and blackoutElectronic dimming: 0 - 100%, four dimming curve optionsStrobe and pulse effects: Variable speed and action, random strobeColor mixing: RGBWColor presets: 36 color presets plus full white, ‘color wheel’ effectsZoom: MotorizedPan: 540°Tilt: 200°
    CONTROL AND PROGRAMMINGControl options: DMX16-bit fine control: Dimming, pan and tiltWhite balance control: RGB adjustmentDMX channels: 14DMX address setting: Control panel with LCD displayDMX compliance: USITT DMX512/1990
    OPTICSZoom range: 10° - 60°Light source: 12 x 10W OSRAM OSTAR WW/CW LEDsMinimum LED lifetime: 50,000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions.
    CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackIngress protection rating: IP20
    INSTALLATIONMinimum clearance around fan and air vents: 100 mm (4 in.)Mounting points: One quarter‐turn bracket for rigging clampLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 100 mm (4 in.)Minimum distance to illuminated surfaces: 200 mm (8 in.)
    CONNECTIONSAC power in, thru: Neutrik PowerConDMX data in, thru: 3-pin and 5-pin locking XLR
  • ELECTRICALAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeFuse: T 3.15 ATypical half-cycle RMS inrush current: 11.3 A (at 240 VAC)Recommended Miniature Circuit Breaker: Type D*

    *Per IEC 60898/UL489/CSA C22.2 No. 5
    Power consumption figures are typical, not maximum. Allow for +/-10% variation.

    TYPICAL POWER AND CURRENT120 V, 60 Hz: 1.3 A, 150 W, PF 0.99230 V, 50 Hz: 0.7 A, 150 W, PF 0.94Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    THERMALCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)
    APPROVALSEU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573, UL 8750US EMC: CFR Title 47 Part 15Canadian safety: CSA C22.2 No. 166Australia/NZ: C-TICK N4241 / RCM
    INCLUDED ITEMS

    Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
    Omega bracket for rigging clamp attachment

    ACCESSORIESPower connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

    Cables, 16 A, for relaying power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    RELATED ITEMSMartin™ RDM 5.5 Splitter: P/N 90758150Martin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    ORDERING INFORMATIONRUSH MH 6 Wash™ CT in cardboard box: P/N 90280090
