🇮🇹 RCF HDL 10-A Line Array


Price:
$2,657

Description

  • 1400 Watt Peak power - 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8" Woofers
  • 1 x 2" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced
The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 2.0'', 2.5'' v.c
WOOFER:
2 x 8'', 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter

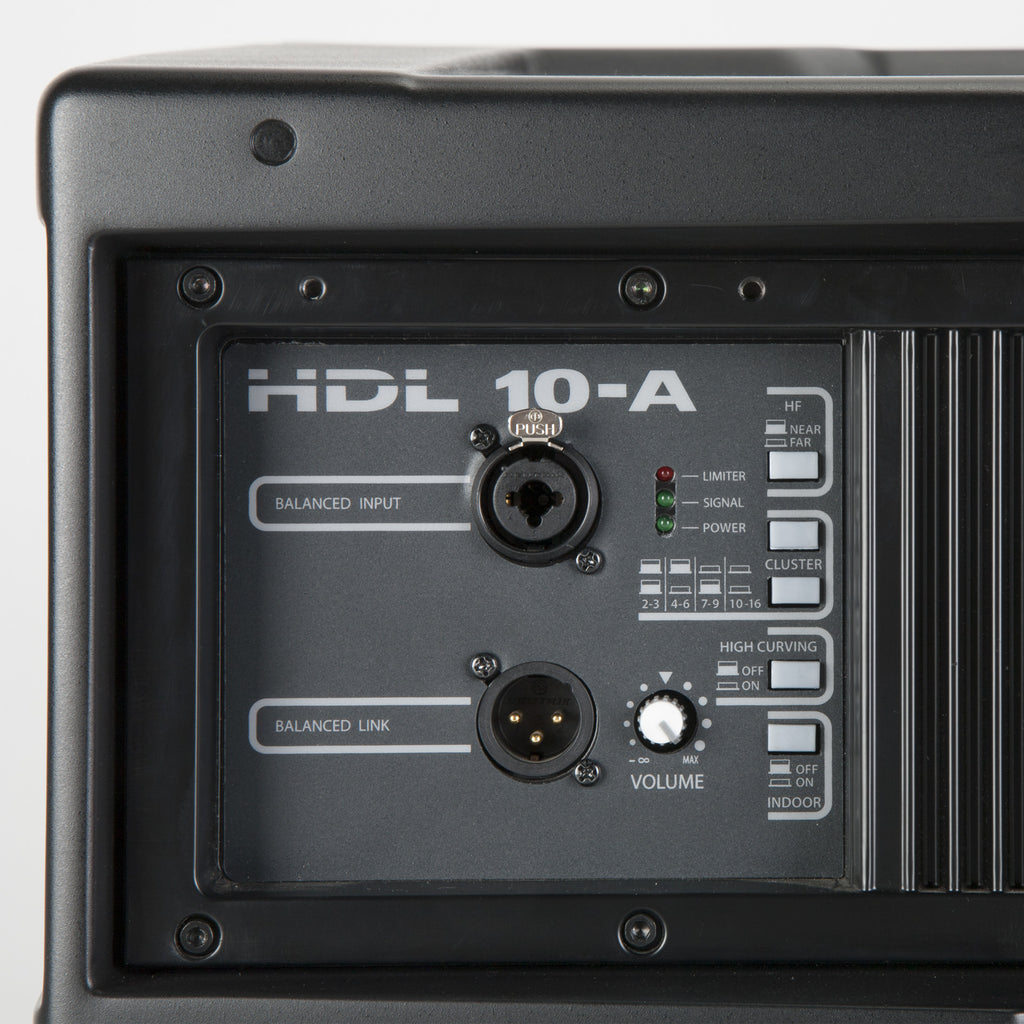

CONTROLS:
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
Rigging flyware
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
294 mm / 11.57 inches
WIDTH:
569 mm / 22.4 inches
DEPTH:
434 mm / 17.09 inches
WEIGHT:
20.4 kg / 44.97 lbs
Shipping informations
PACKAGE HEIGHT:
375 mm / 14.76 inches
PACKAGE WIDTH:
650 mm / 25.59 inches
PACKAGE DEPTH:
500 mm / 19.69 inches
PACKAGE WEIGHT:
23 kg / 50.71 lbs
