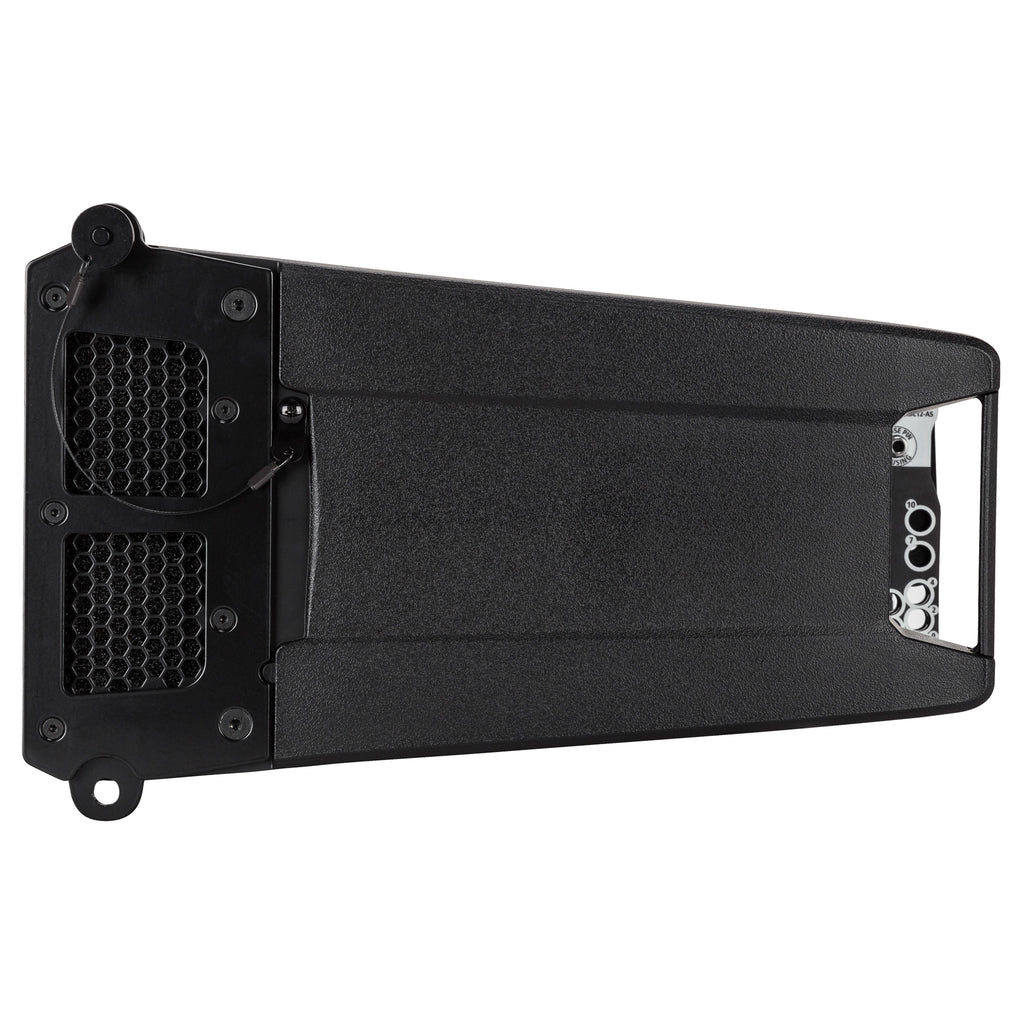

🇮🇹 RCF HDL 6-A Line Array


Price:
$2,059

Description


  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz
MAX SPL @ 1M:
131 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
10°
Transducers
COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c
WOOFER:
2 x 6.0'' neo, 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
HF correction
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
Array fittings
HANDLES:
2 Back
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
237 mm / 9.33 inches
WIDTH:
470 mm / 18.5 inches
DEPTH:
377 mm / 14.84 inches
WEIGHT:
11.6 kg / 25.57 lbs
Shipping informations
PACKAGE HEIGHT:
260 mm / 10.24 inches
PACKAGE WIDTH:
550 mm / 21.65 inches
PACKAGE DEPTH:
425 mm / 16.73 inches
PACKAGE WEIGHT:
13 kg / 28.66 lbs
