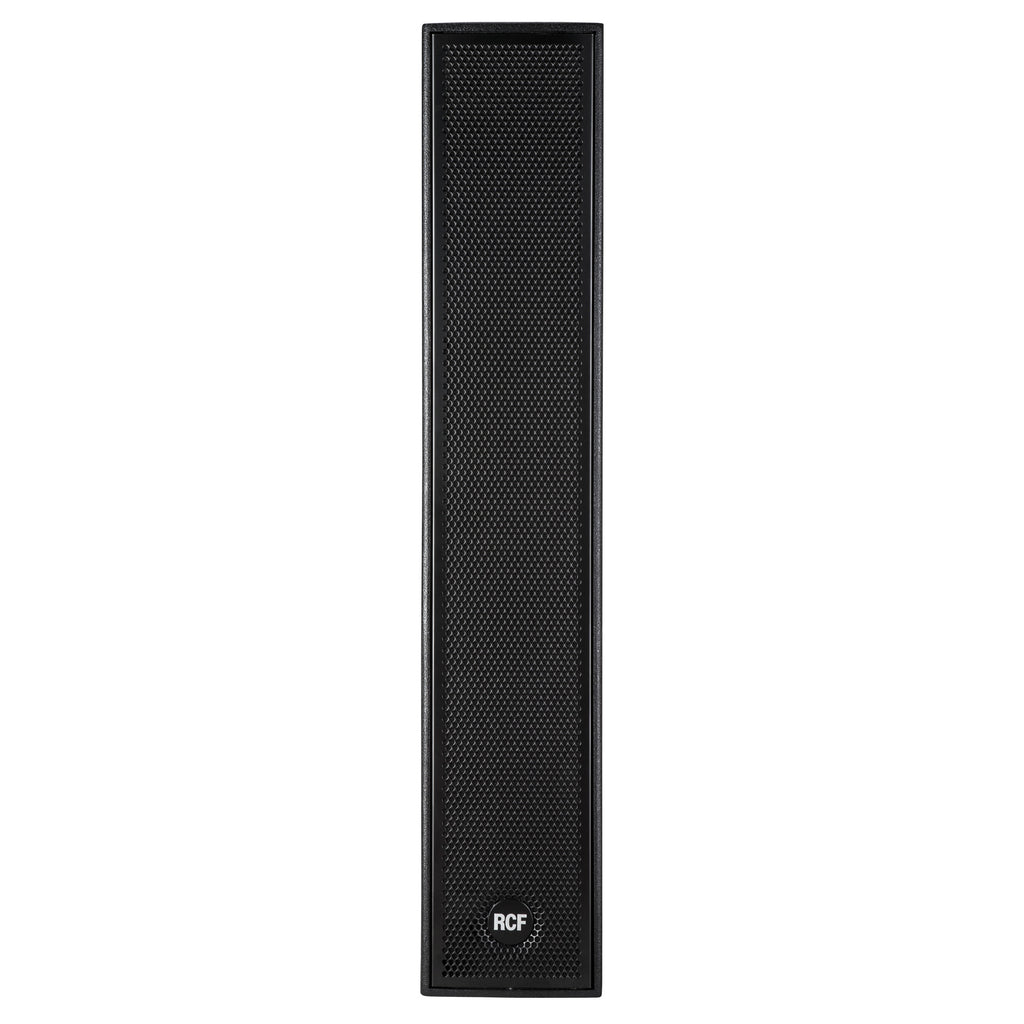

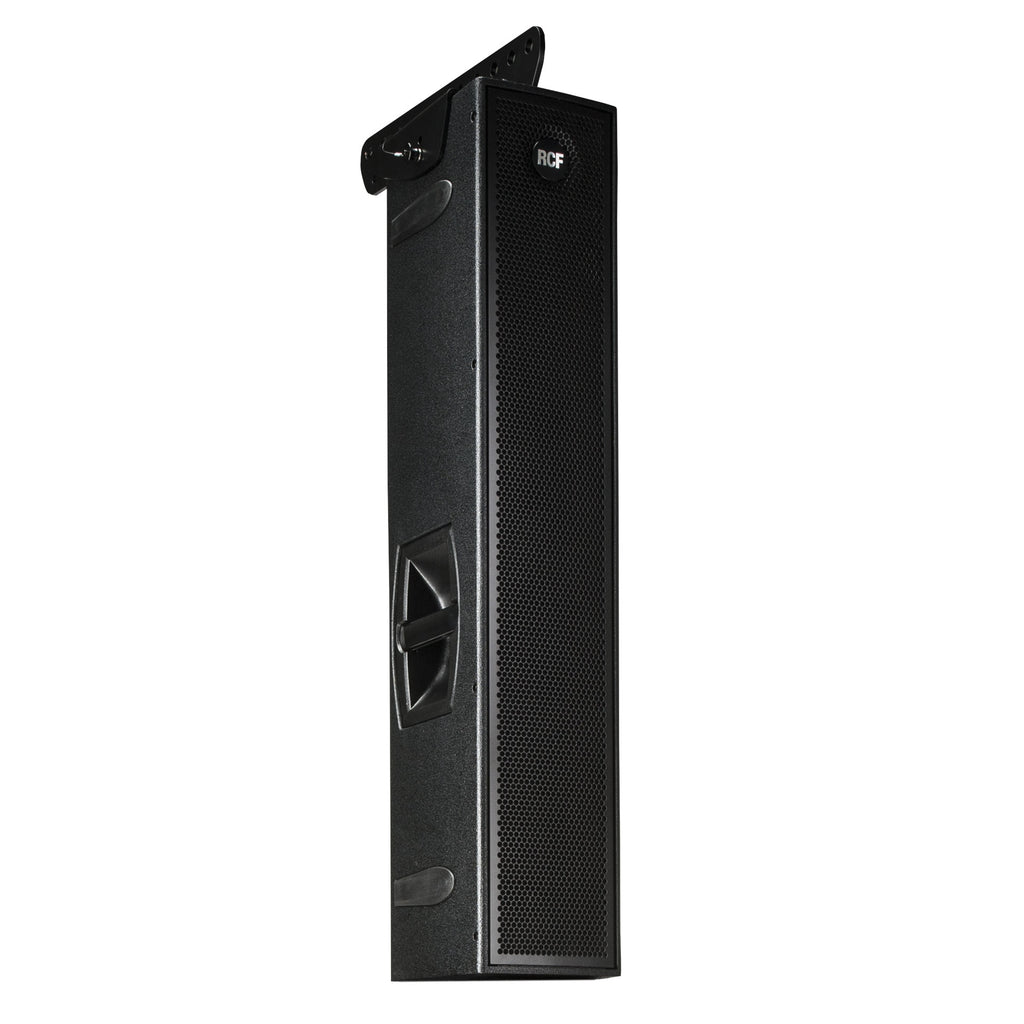

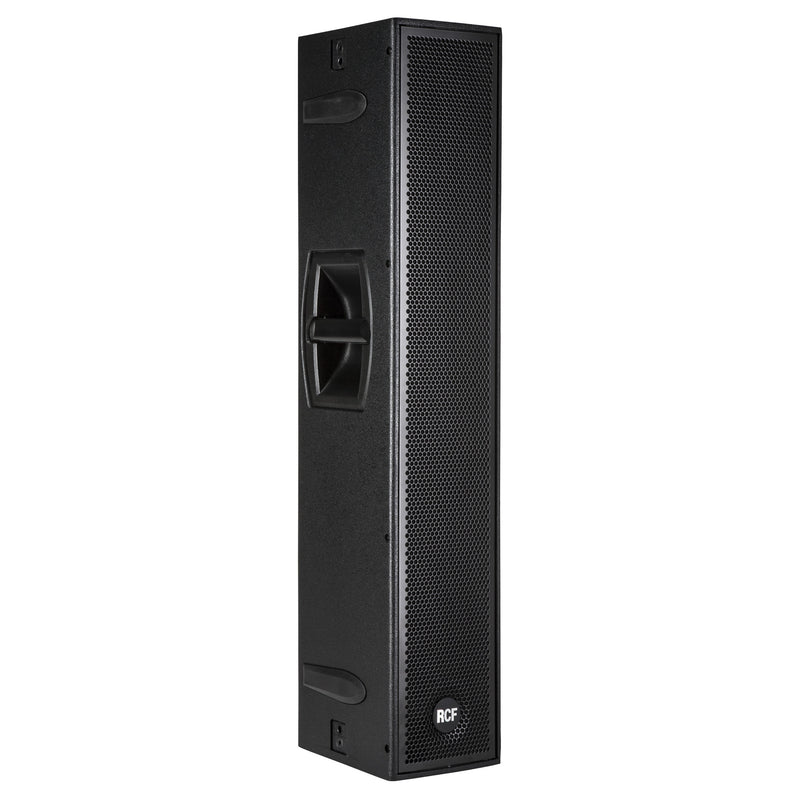

๐Ÿ‡ฎ๐Ÿ‡น RCF NXL 24-A Column Speaker Array System


Price:
$3,199

Description

  • 1,400 Watt Class D bi-amplification
  • 131 dB SPL Max
  • 65 Hz - 20 kHz frequency response
  • 4 x 6" Woofers
  • 2.5" voice coil RCF Precision C. Driver on a waveguide
  • 100ยฐ x 30ยฐ slightly tilted pattern control
  • DSP controlled input section with single or dual EQ preset

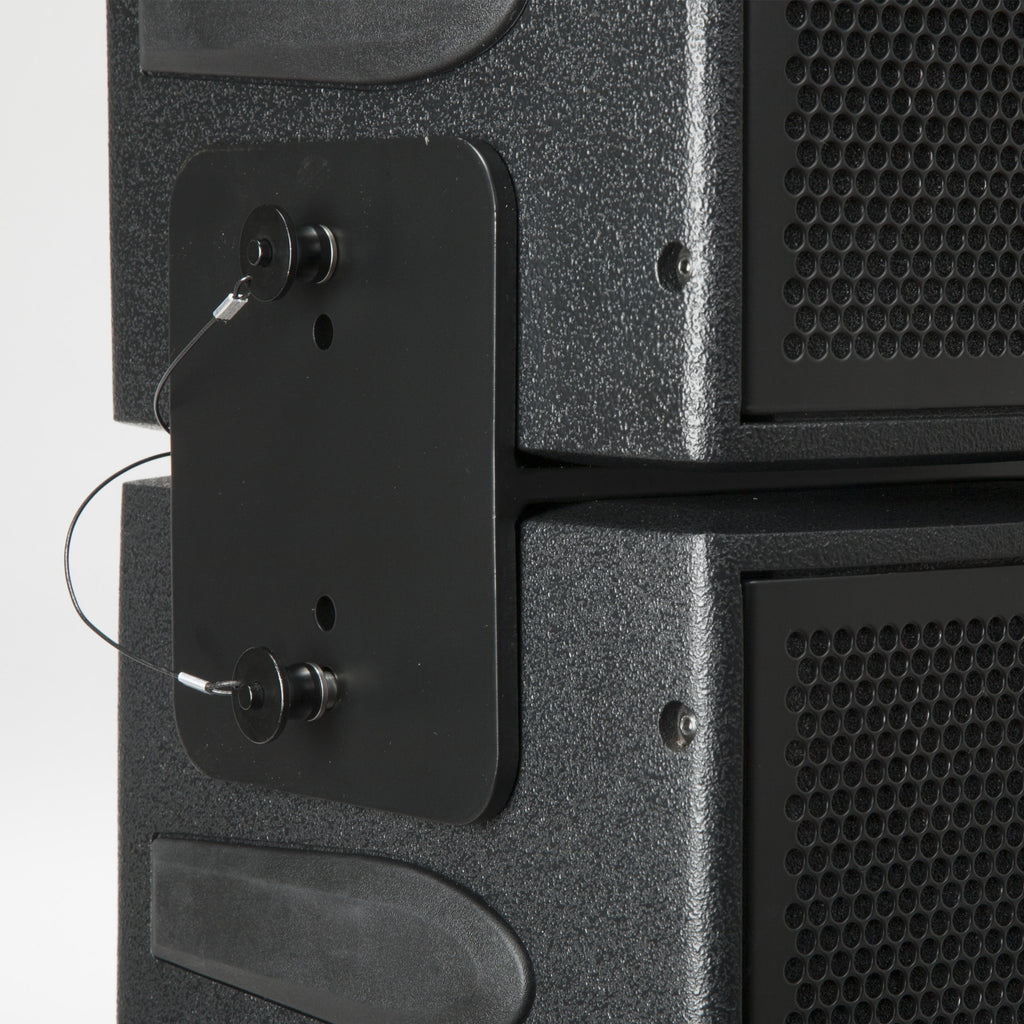

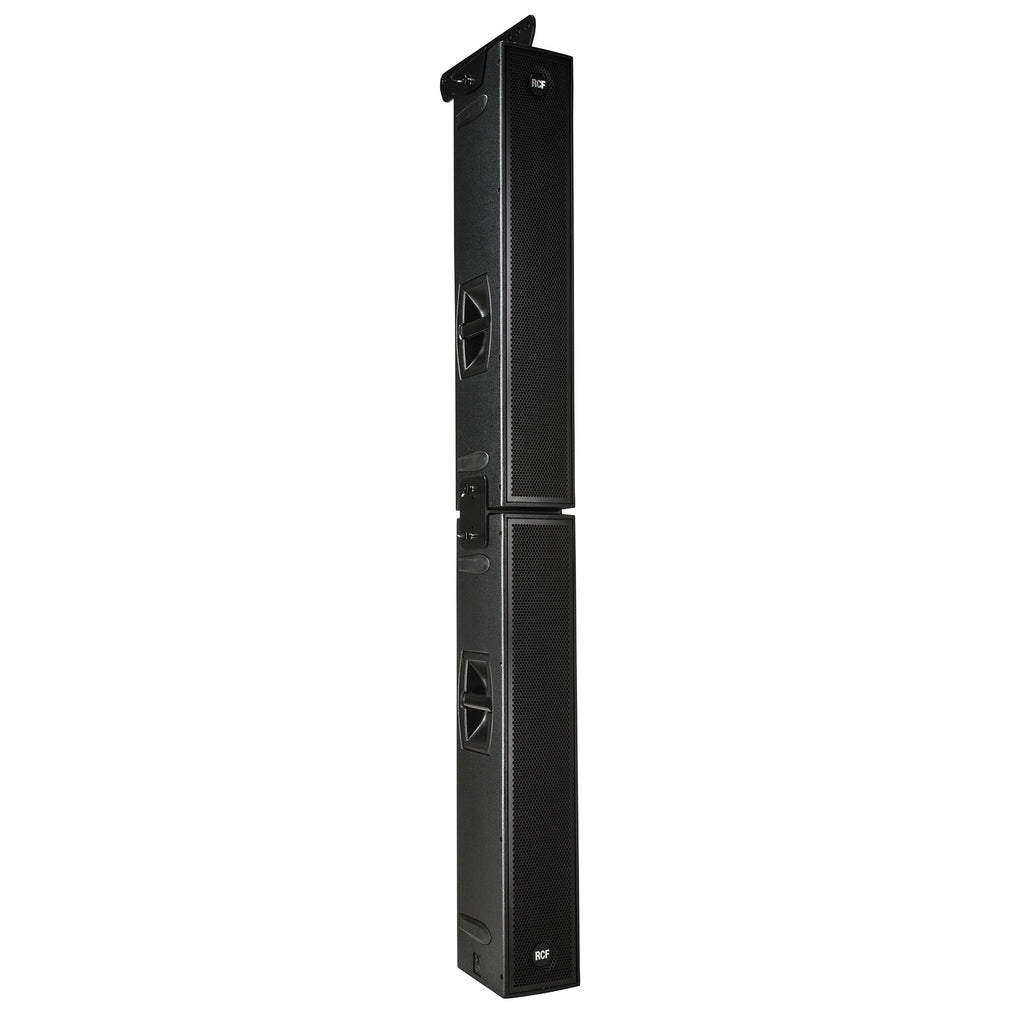

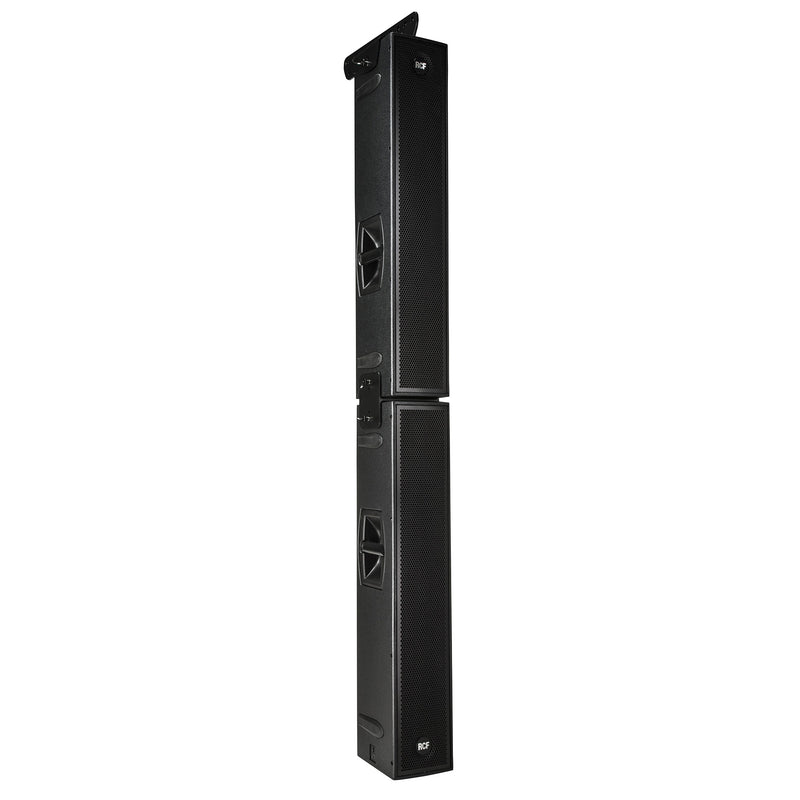

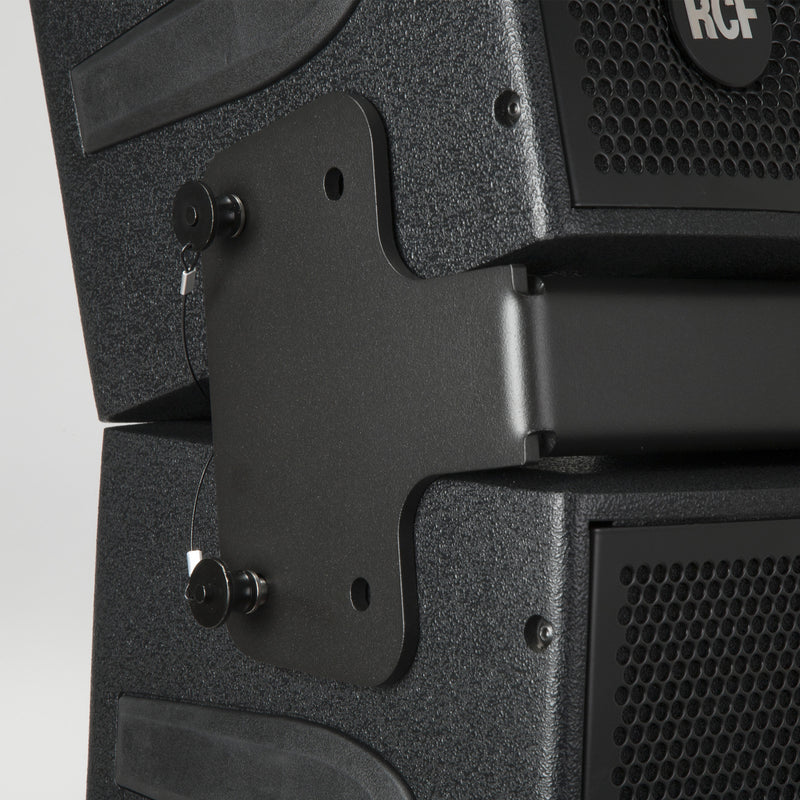

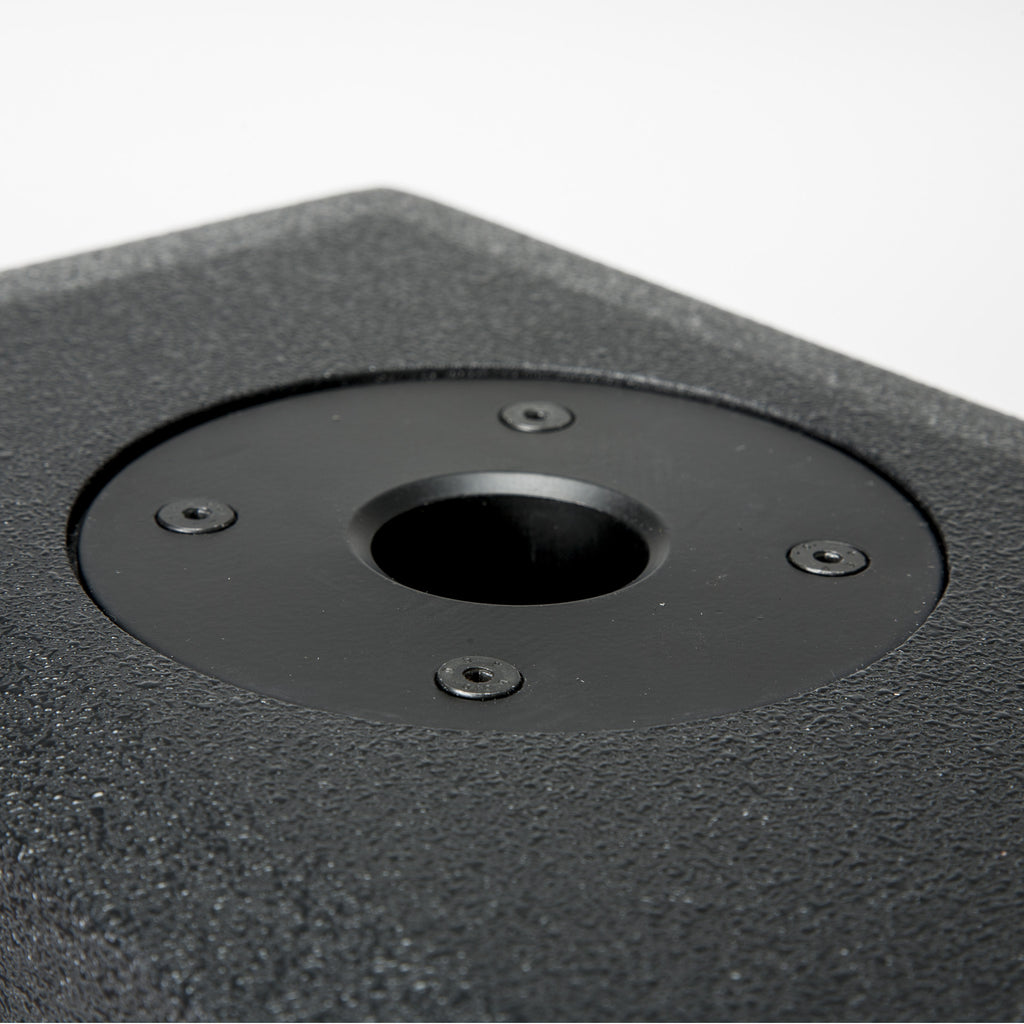

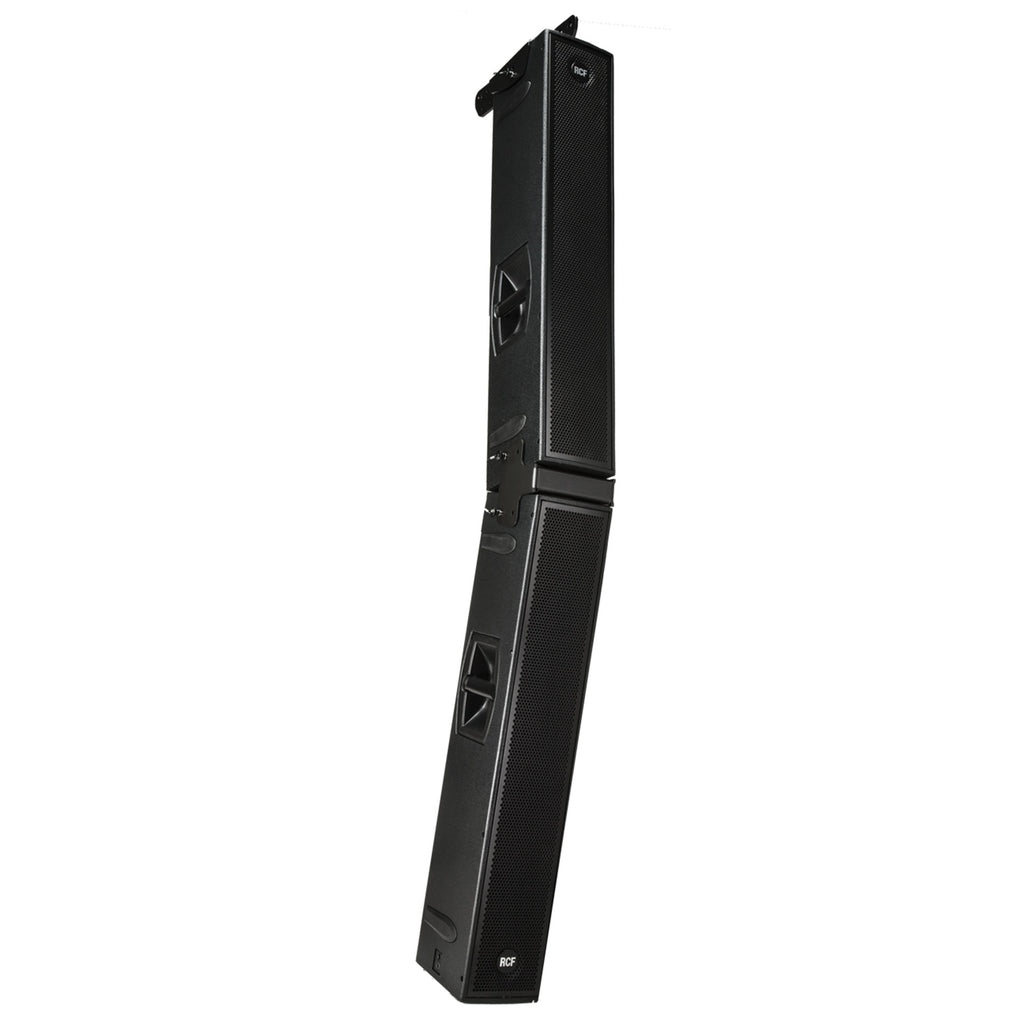

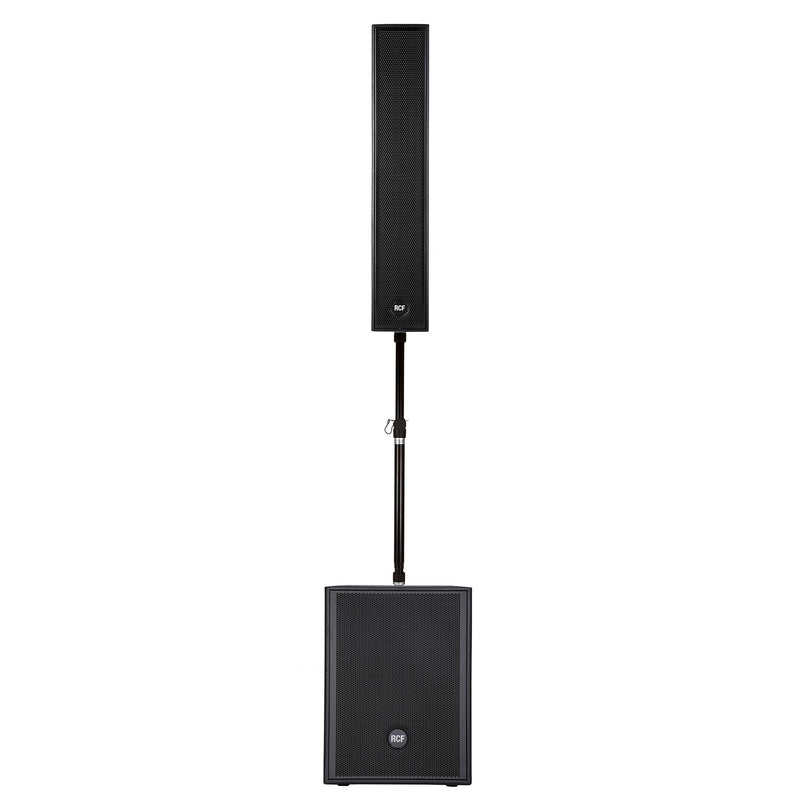

  • East-to-fly and install with built-in rigging points and pole mount socket

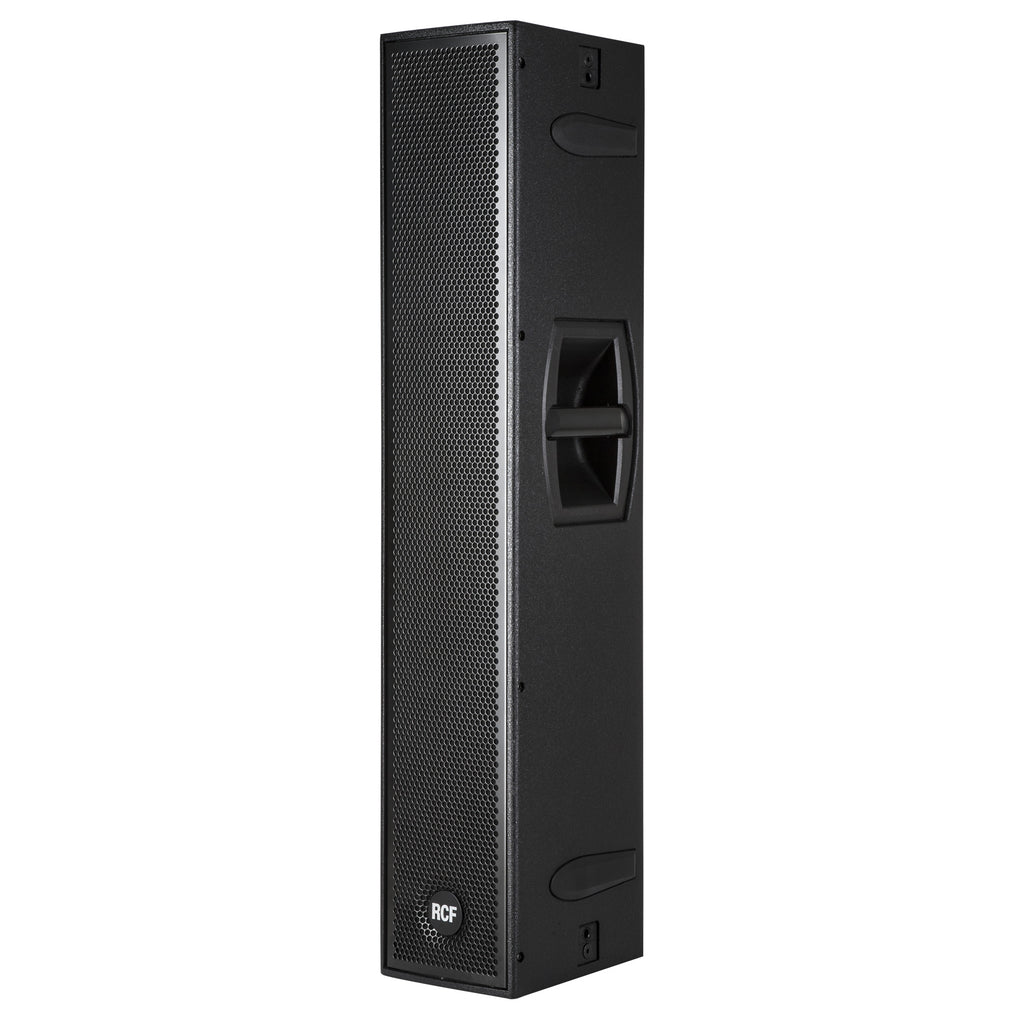

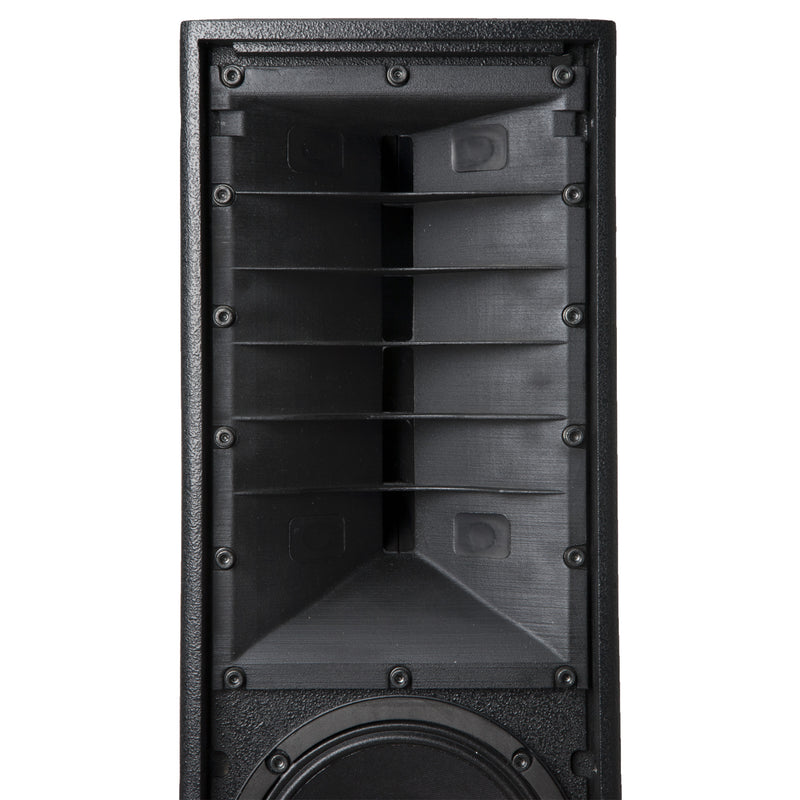

The NXL 24-A is an active column speaker array system with four 6โ€ high power woofers and a 2.5โ€ voice coil compression driver loaded on a 100ยฐ x 30ยฐ constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.

PART NUMBER:

  • 13000399
    NXL 24-A
    220-240V
    EAN 8024530010805
  • 13000400
    NXL 24-A
    115V
    EAN 8024530010812
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz รท 20000 Hz
MAX SPL @ 1M:
131 dB
HORIZONTAL COVERAGE ANGLE:
100ยฐ
VERTICAL COVERAGE ANGLE:
30ยฐ
Transducers
COMPRESSION DRIVER:
1.4'', 2.5'' v.c
WOOFER:
4 x 6.0'', 1.5'' v.c

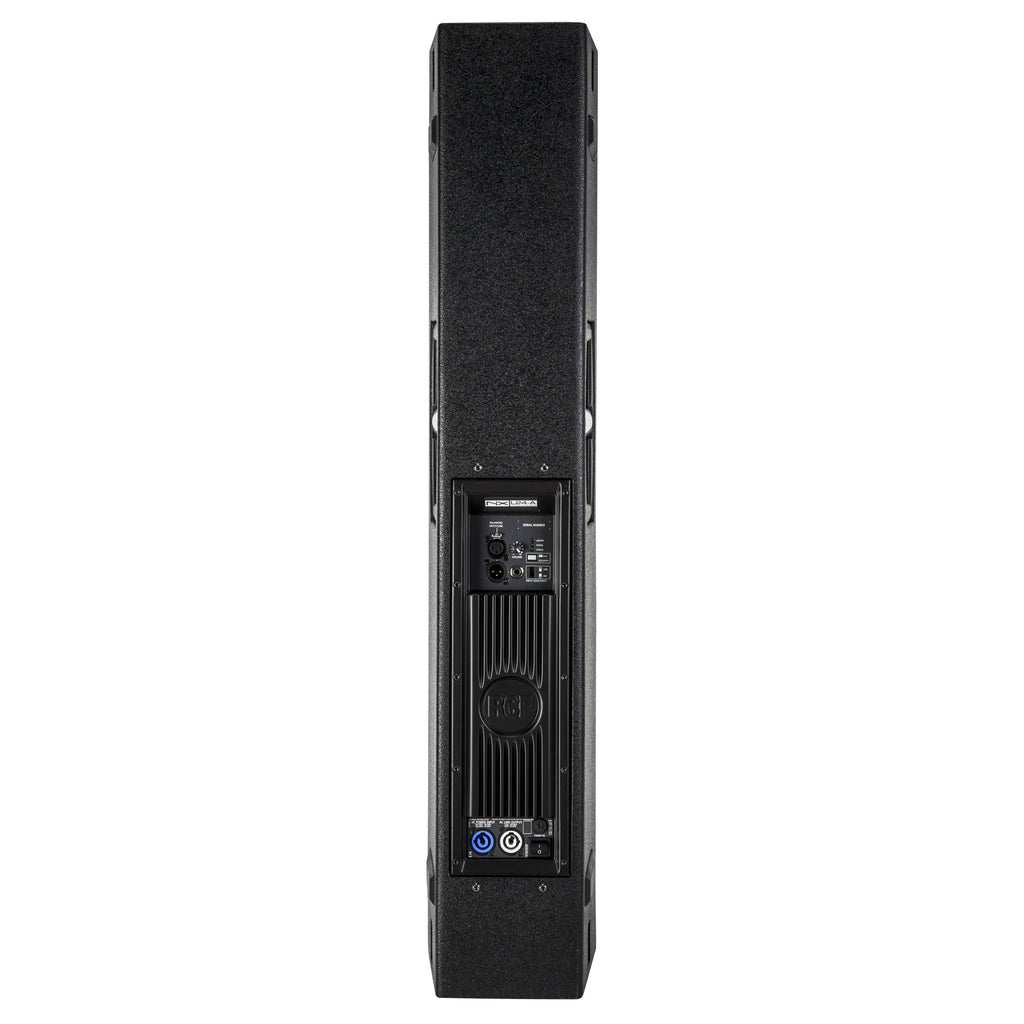

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XRL, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, EQ Shape, MIc/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
4 x MB, 4 x quick lock

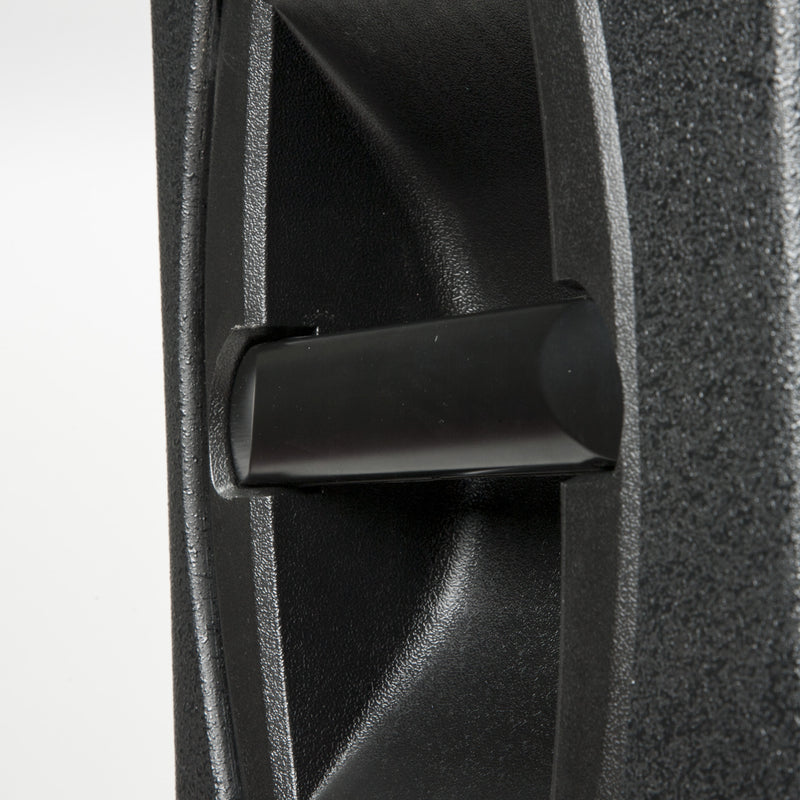

HANDLES:
2 side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
1056 mm / 41.57 inches
WIDTH:
201 mm / 7.91 inches
DEPTH:
274 mm / 10.79 inches
WEIGHT:
26.4 kg / 58.2 lbs
Shipping informations
PACKAGE HEIGHT:
316 mm / 12.44 inches
PACKAGE WIDTH:
1155 mm / 45.47 inches
PACKAGE DEPTH:
222 mm / 8.74 inches
PACKAGE WEIGHT:
29 kg / 63.93 lbs
