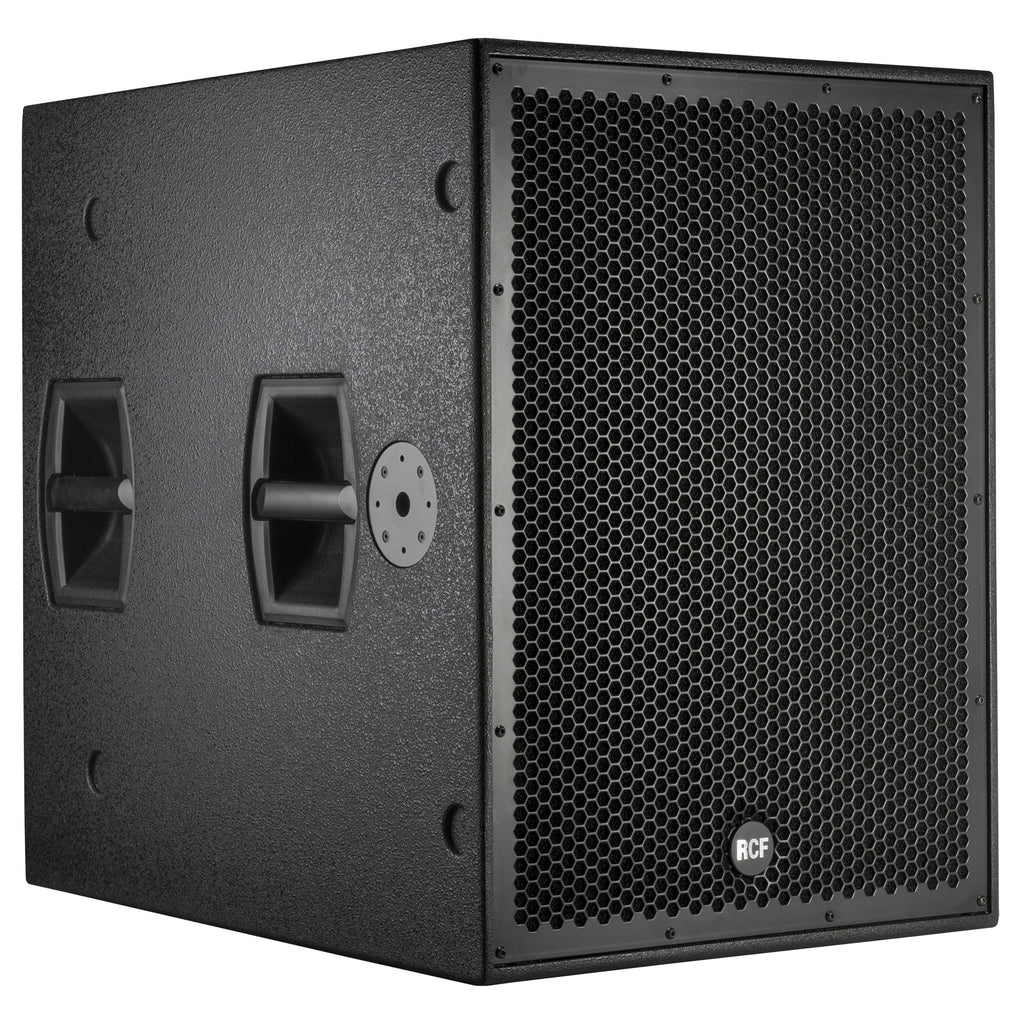

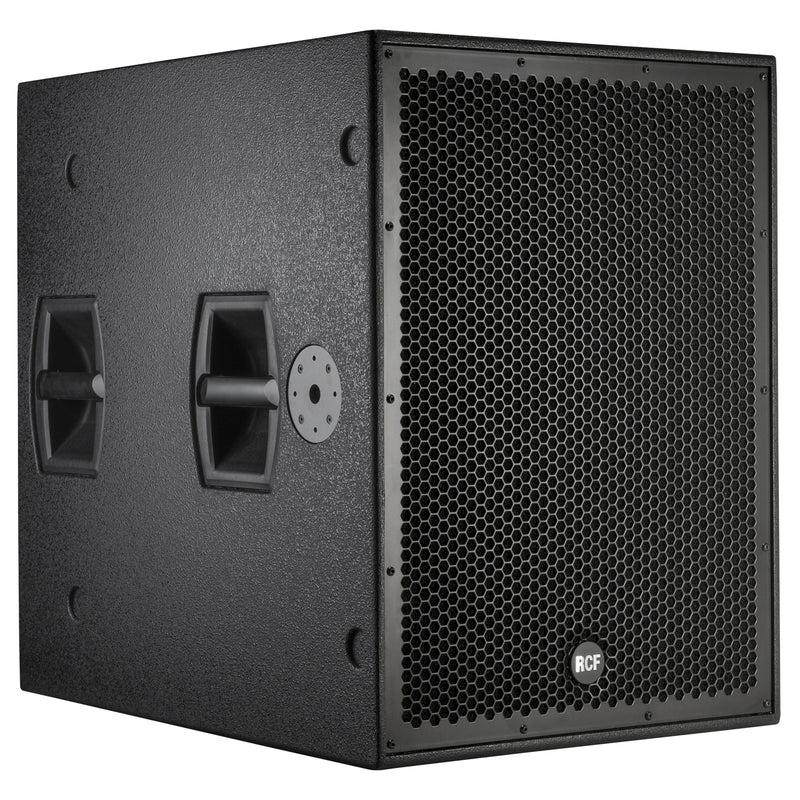

🇮🇹 RCF SUB 8005-AS High Performance 21in Subs


Price:
$4,949

Description

  • 2500 Watt Peak, 1250 Watt RMS
  • 137 dB max SPL
  • 27 Hz - 120 Hz frequency response
  • 21" Woofer, 4.5" voice coil vented woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Baltic birch tour grade cabinet
  • Compatible with NXL23-A (stacking)
  • Compatible with NXL24-A (stacking)
  • Multiple configurations with HDL 10-A and HDL 20-A

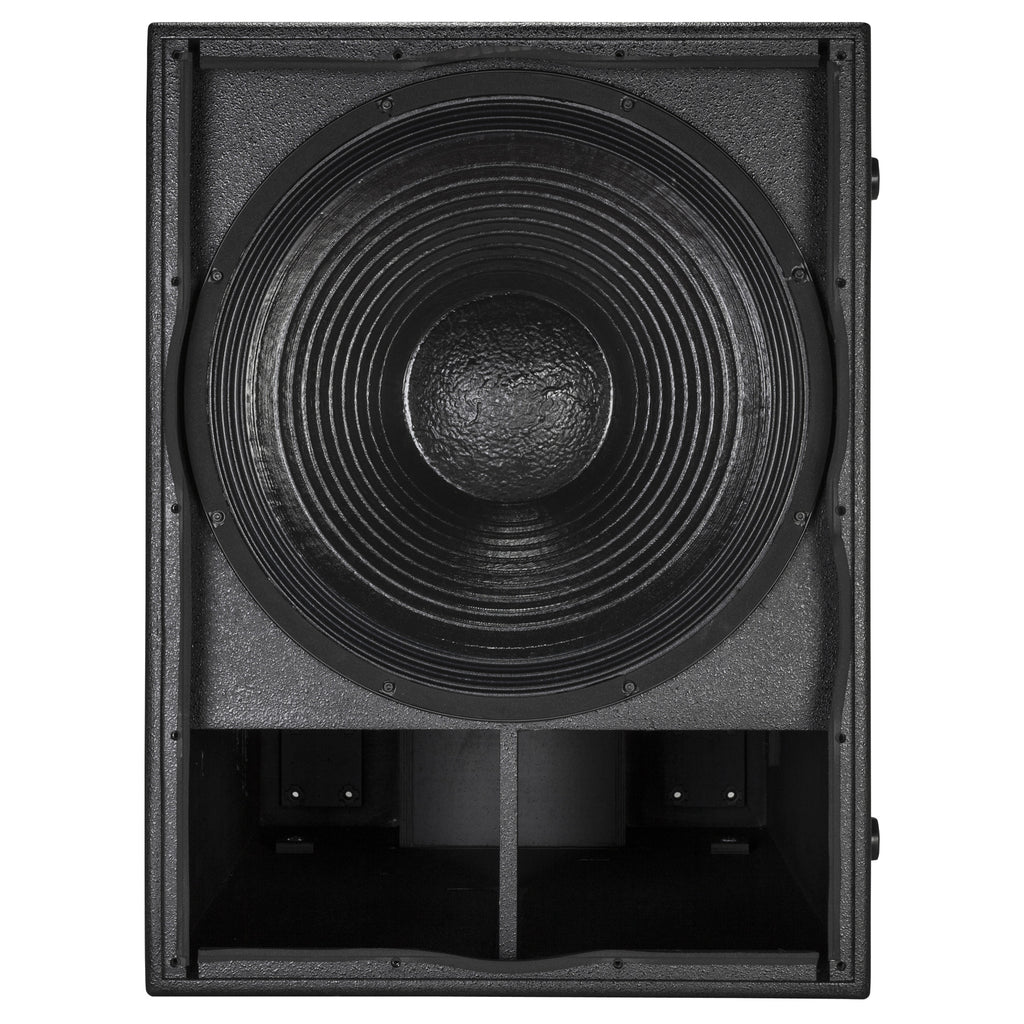

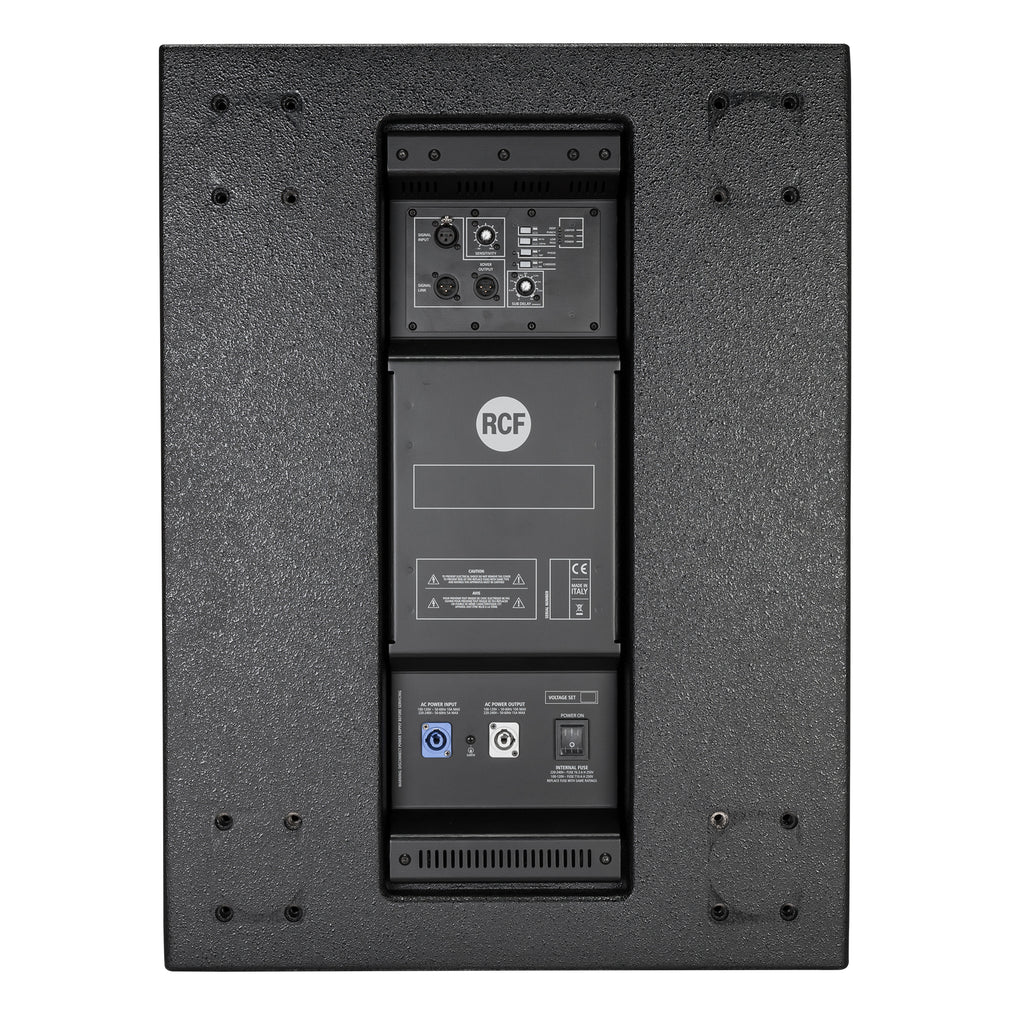

The SUB 8005-AS is on of the most powerful 21” subwoofers in pro-sound category. Featuring a high power, hypervented 21” woofer, with 4.5” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

PART NUMBER:

  • 13000423
    SUB 8005-AS
    115V
    EAN 8024530011987
  • 13000422
    SUB 8005-AS
    220-240V
    EAN 8024530011970

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE TRASDUCERS INNOVATORS

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 60 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

Read More

LEGENDARY SUBWOOFERS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

CABINET & MECHANICS

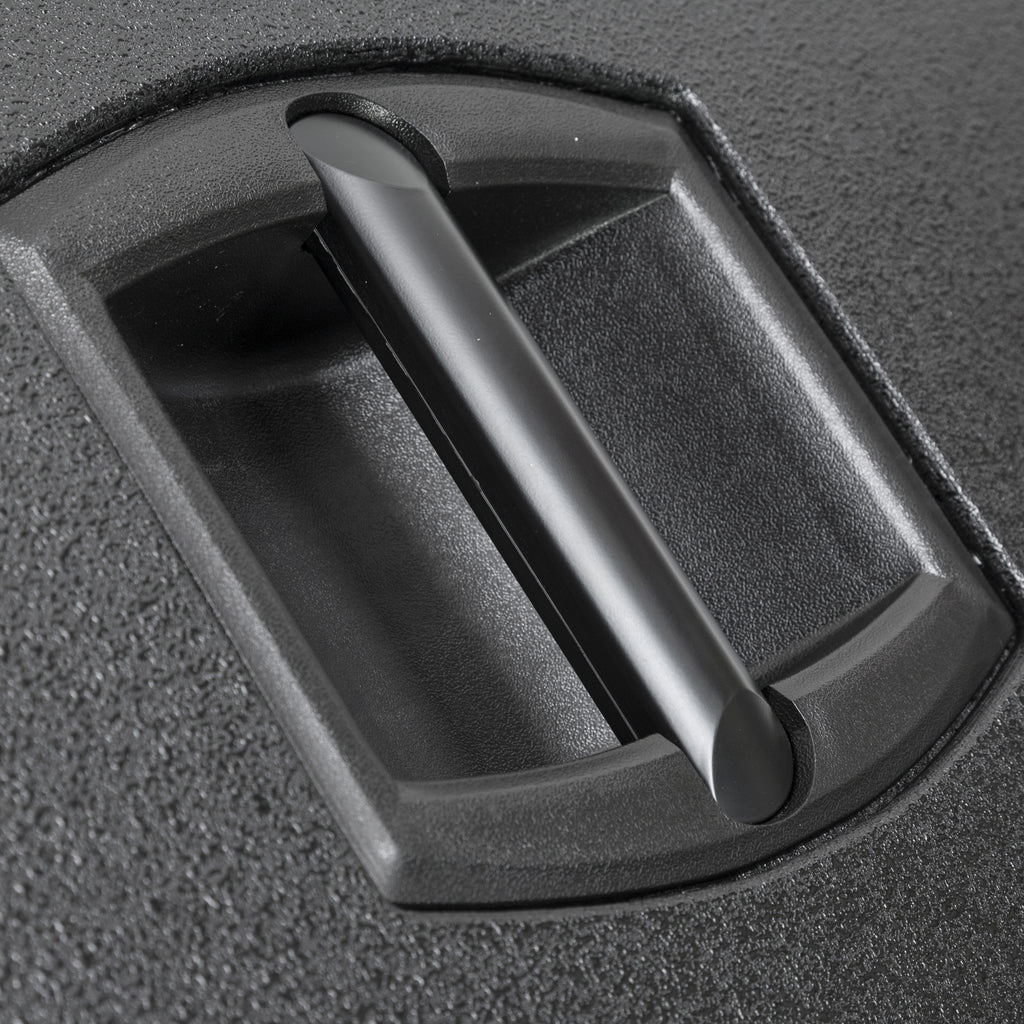

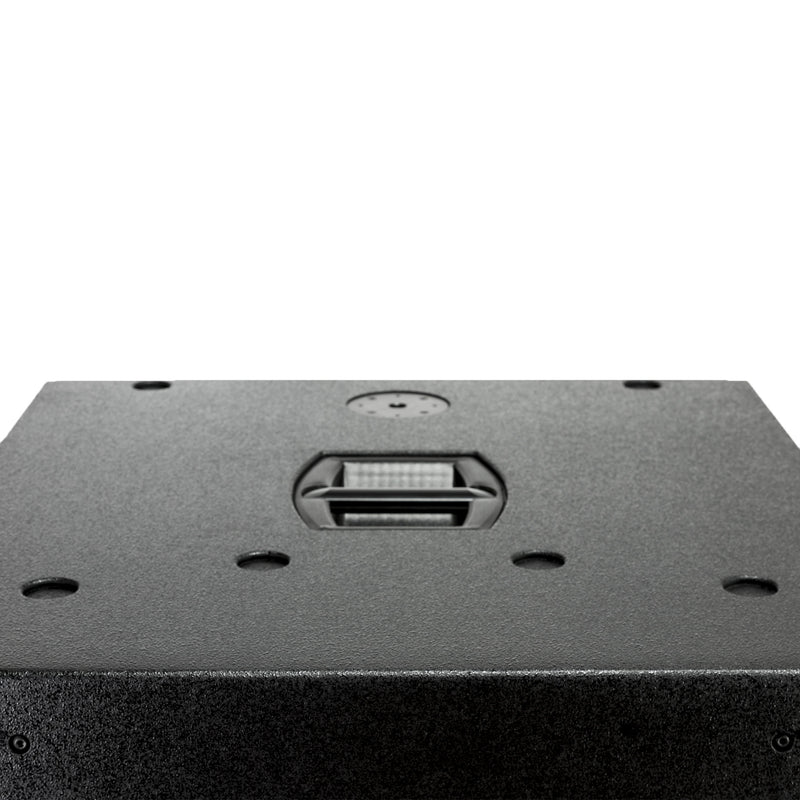

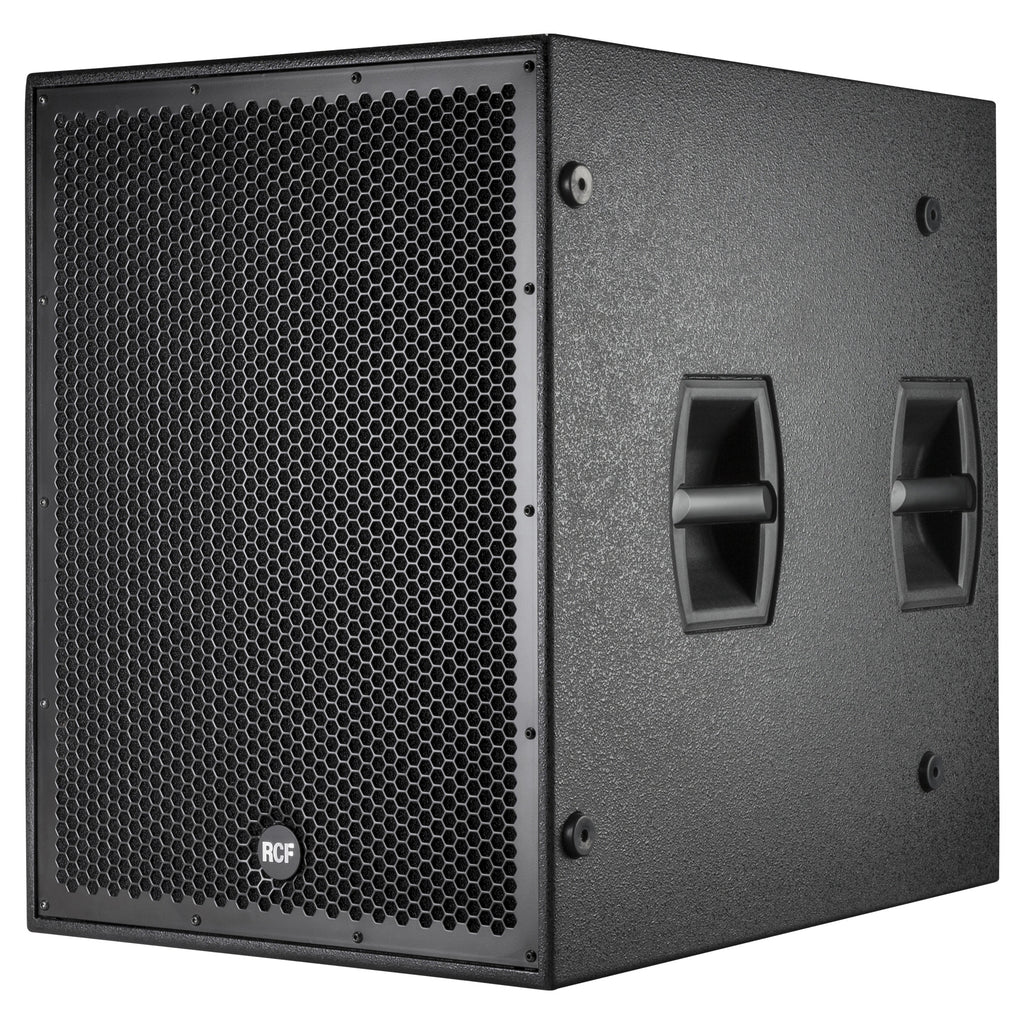

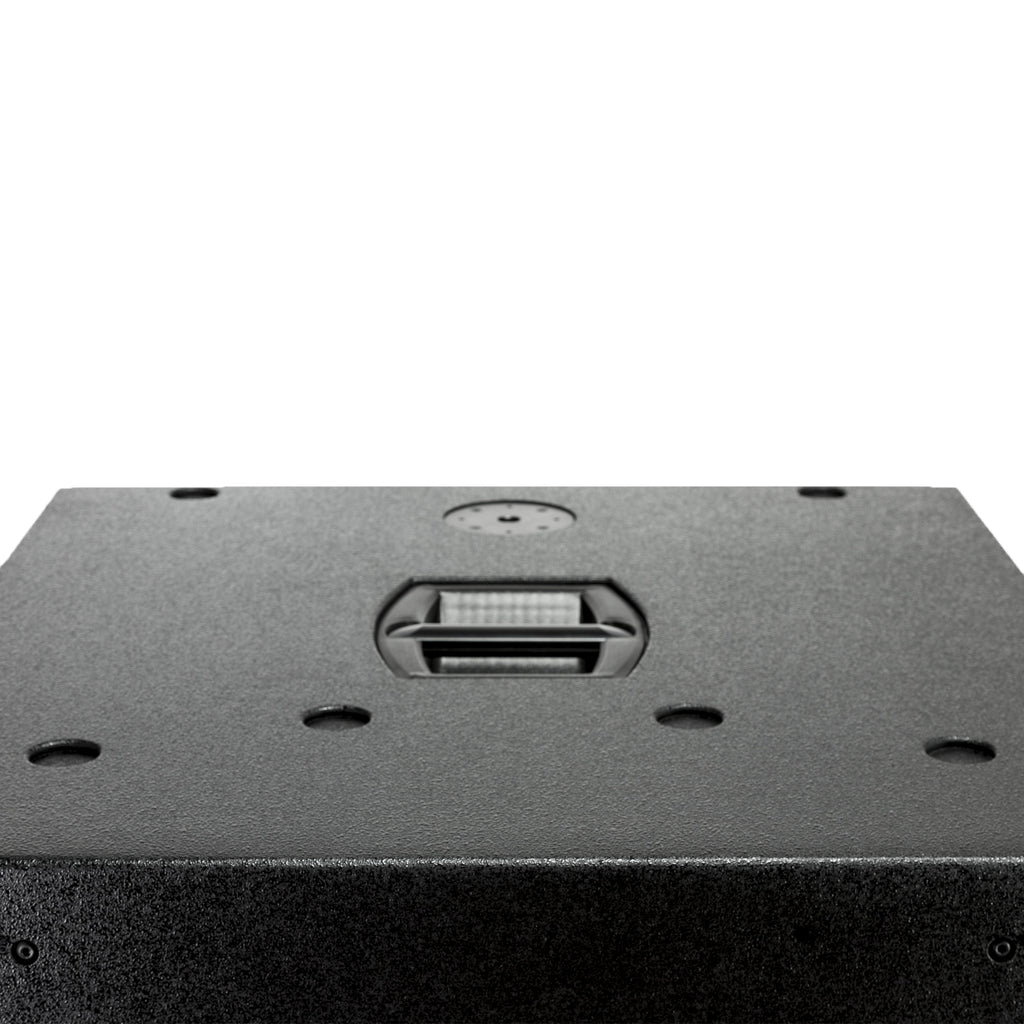

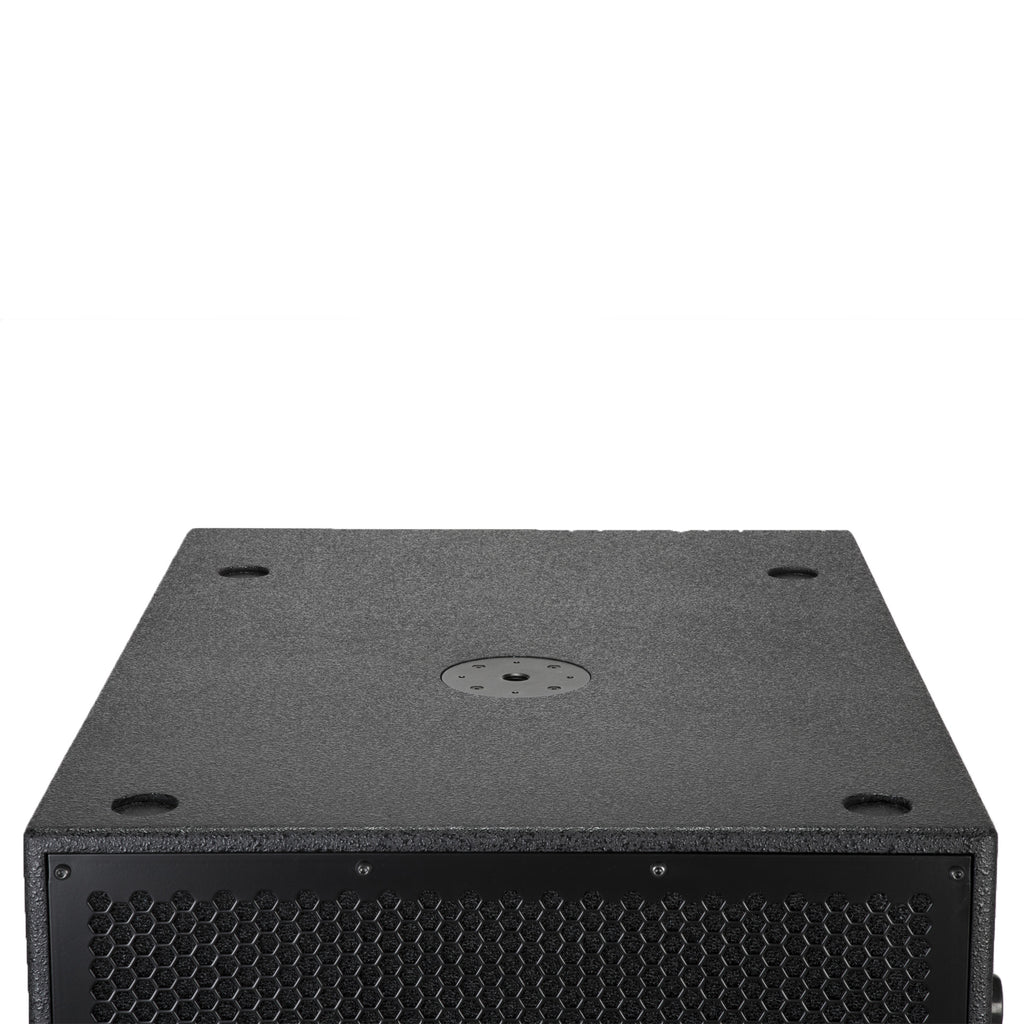

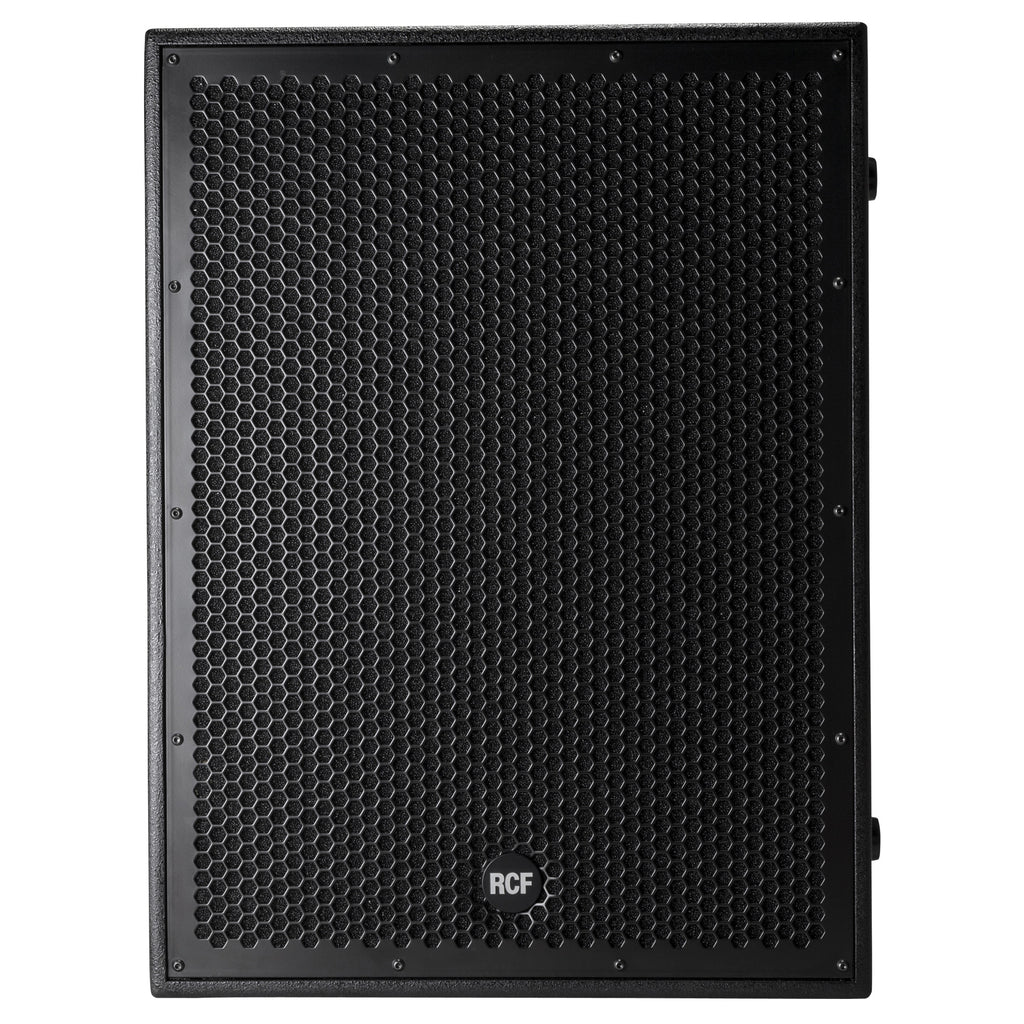

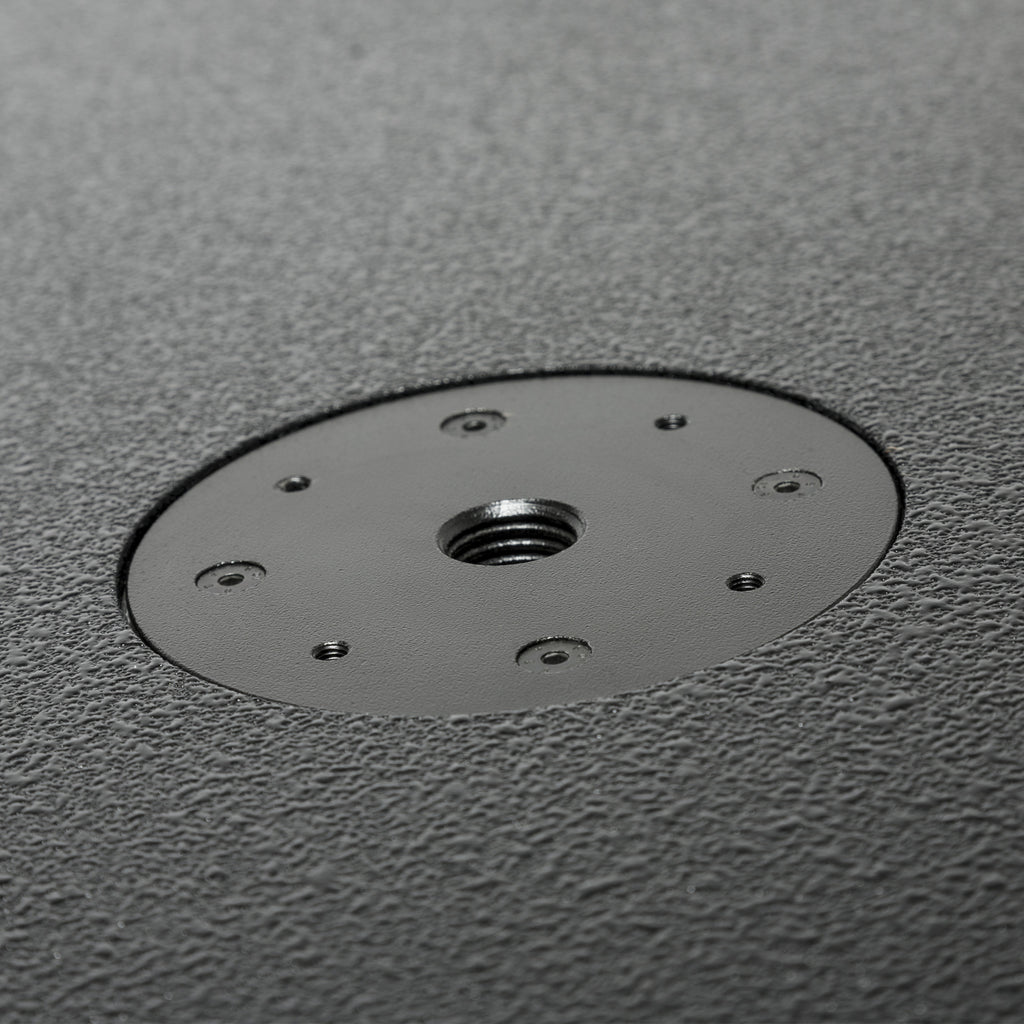

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.





SUBWOOFER ALIGNMENT TUTORIALS





















SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
27 Hz ÷ 120 Hz
MAX SPL @ 1M:
137 dB
Transducers
WOOFER:
21'', 4.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
120 Hz
LOW-PASS FREQUENCIES:
90 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Fast Limiter
CONTROLS:
Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioi
Power section
TOTAL POWER:
2500 W Peak, 1250 W RMS
LOW FREQUENCIES:
2500 W Peak, 1250 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
2xM20, 4 x wheels mounting points
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
825 mm / 32.48 inches
WIDTH:
600 mm / 23.62 inches
DEPTH:
805 mm / 31.69 inches
WEIGHT:
61.5 kg / 135.58 lbs
Shipping informations
PACKAGE HEIGHT:
870 mm / 34.25 inches
PACKAGE WIDTH:
880 mm / 34.65 inches
PACKAGE DEPTH:
662 mm / 26.06 inches
PACKAGE WEIGHT:
63 kg / 138
