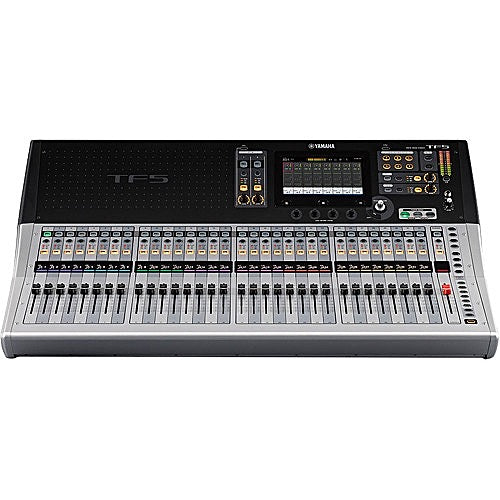

🇺🇸 Yamaha TF5 Mixing Console Pre-Owned


Description


Yamaha TF5 Specs

Mixer
Number of Analog Input Channels 32
Mix Routing 1 x Main LRC
1 x Subgroup
6 x Stereo Aux Send
8 x Mono Aux Send
Groups 8 x DCA Group
Faders 33 x 3.9" / 100 mm Motorized
Signal Processing
Gain/Trim Range -6 dB to +66 dB
Graphic EQ Yes
Internal Effects 8 x Effect (Type Unspecified)
Digital Audio
Sample Rates 48 kHz
Bit Depth Record:
24-Bit
Converter Dynamic Range D/A:
110 dB
Latency < 2.6 ms (Analog Input to Analog Output)
Performance
Frequency Response 20 Hz to 20 kHz +0.5/-1.5 dB
Max Input Level Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV
Output Level Output:
+4 dBu (Nominal)
+24 dBu (Max)
Analog Dynamic Range 107 dB at Min Gain
Headphone Output Power 3 mW
75 mW (Max)
I/O Impedance Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms
Crosstalk -100 dB
EIN -128 dBu at Max Gain (A-Weighted)
Noise Floor -85 dBu A-Weighted
THD < 0.05% at Min Gain (+4 dBu)
Connectivity
Analog Inputs 1 x 1/4" TS Footswitch Input
32 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 2RCA Unbalanced Input
Analog Outputs 16 x XLR Balanced Output
1 x 1/4" TRS Unbalanced Headphone Output
Digital I/O 1 x RJ45 (Network)
USB 1 x USB Type-B (Host Connection)
2 x USB Type-A (Control, External Memory)
Expansion Ports 1 x I/O Card
Recording
Max Multitrack Recording 34 Tracks
File Format Support Playback: MP3, WAV
Record: WAV
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 120 W
Physical
Dimensions 34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm
Weight 44.1 lb / 20 kg
